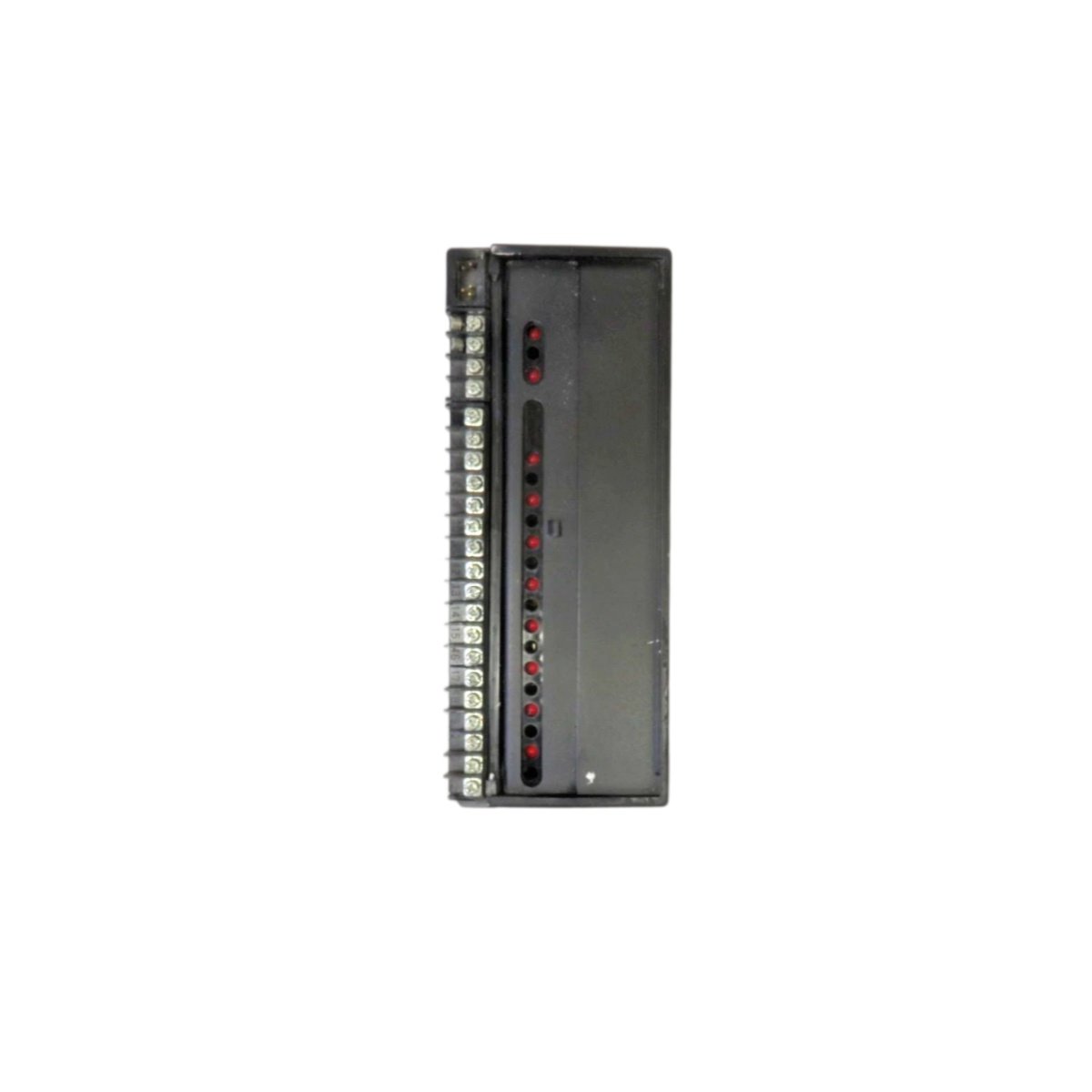

The IC660EBS103 links Genius I/O blocks to the host controller as a dedicated interface card. This unit measures approximately 8.5 inches long, 4.0 inches wide, and 2.0 inches high. Moreover, it weighs roughly 1.3 pounds, so rack mounting stays straightforward. Engineers choose the IC660EBS103 when they need reliable bus communication across distributed I/O networks.
Technical Specifications and Interface Details
The card manages data exchange between Genius I/O blocks and the central processor. Specifically, it supports the Genius bus protocol at standard industrial speeds. Additionally, dual connectors allow daisy-chain wiring across multiple blocks. The front panel carries status LEDs for quick network diagnosis.
| Parameter | Specification |
|---|---|
| Module Type | Genius I/O Interface Card |
| Bus Protocol | Genius I/O bus |
| Connectors | Dual bus connectors |
| Dimensions | 8.5 x 4.0 x 2.0 in |
| Weight | ~1.3 lbs |
| Indicators | Status and fault LEDs |
| Mounting | Rack or panel slot |
| Power | 24 VDC nominal |
Energy Storage and Communication Reliability
Internal capacitors on the IC660EBS103 supply local energy storage for stable bus signaling. Consequently, the card tolerates brief voltage dips without losing communication. This buffering keeps data frames intact during transient plant disturbances. The design therefore supports consistent throughput across long cable runs.
Installation and Compatibility Notes
Because the IC660EBS103 fits standard GE Fanuc racks, technicians complete installation quickly. They should verify bus termination before they power the network. Furthermore, the card integrates smoothly with existing Genius I/O hardware. Always store spare units in anti-static packaging to protect sensitive circuits.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
