Core Technical Specifications

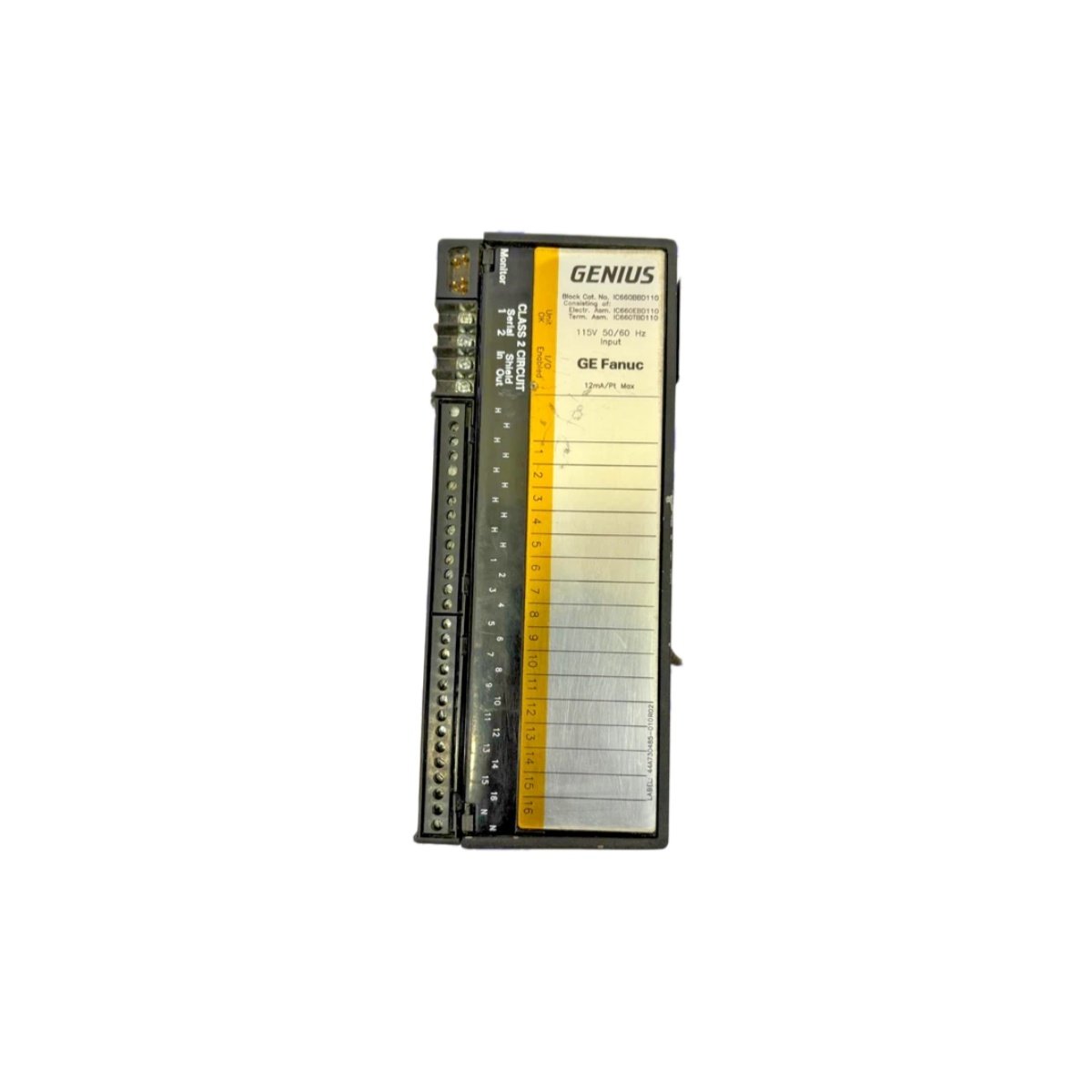

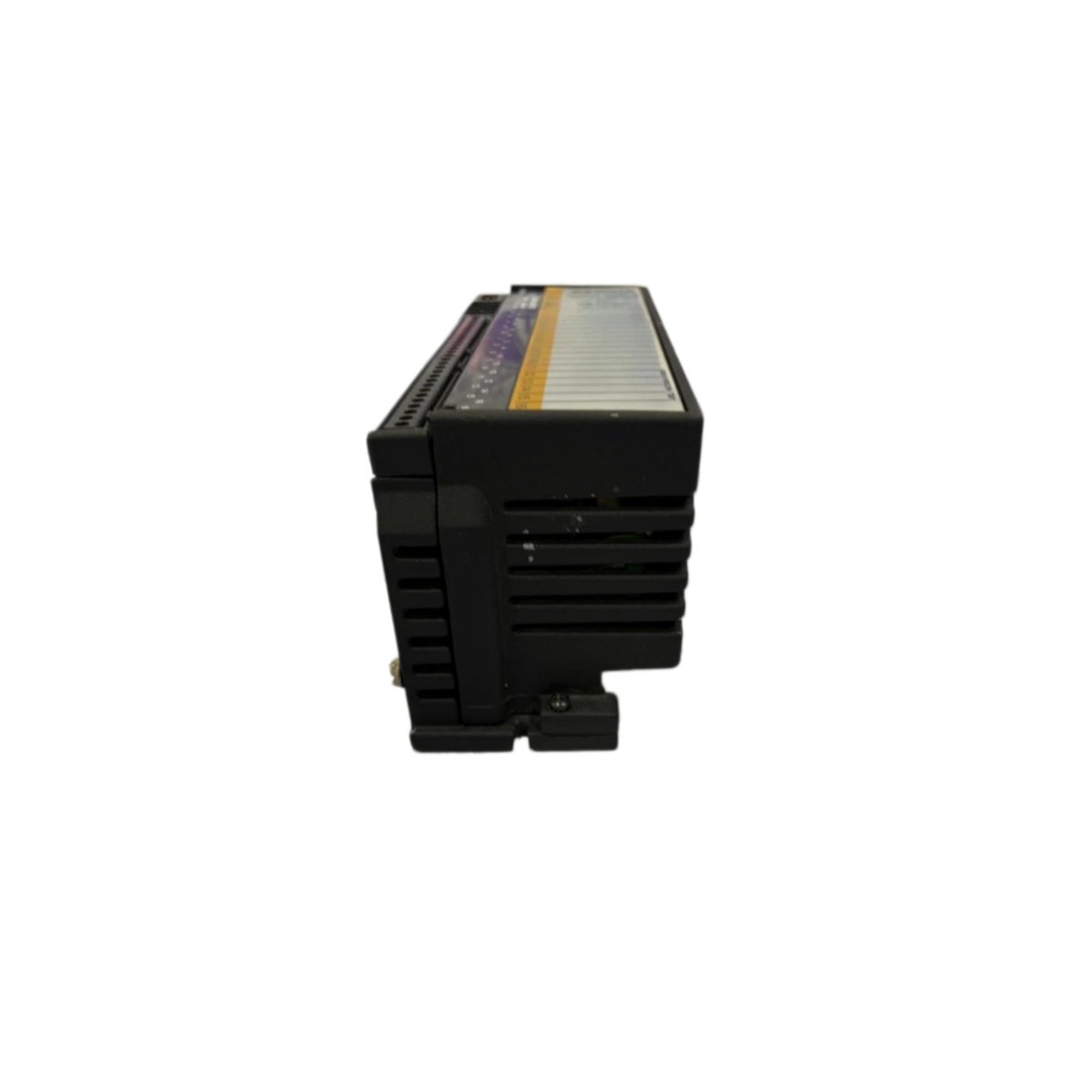

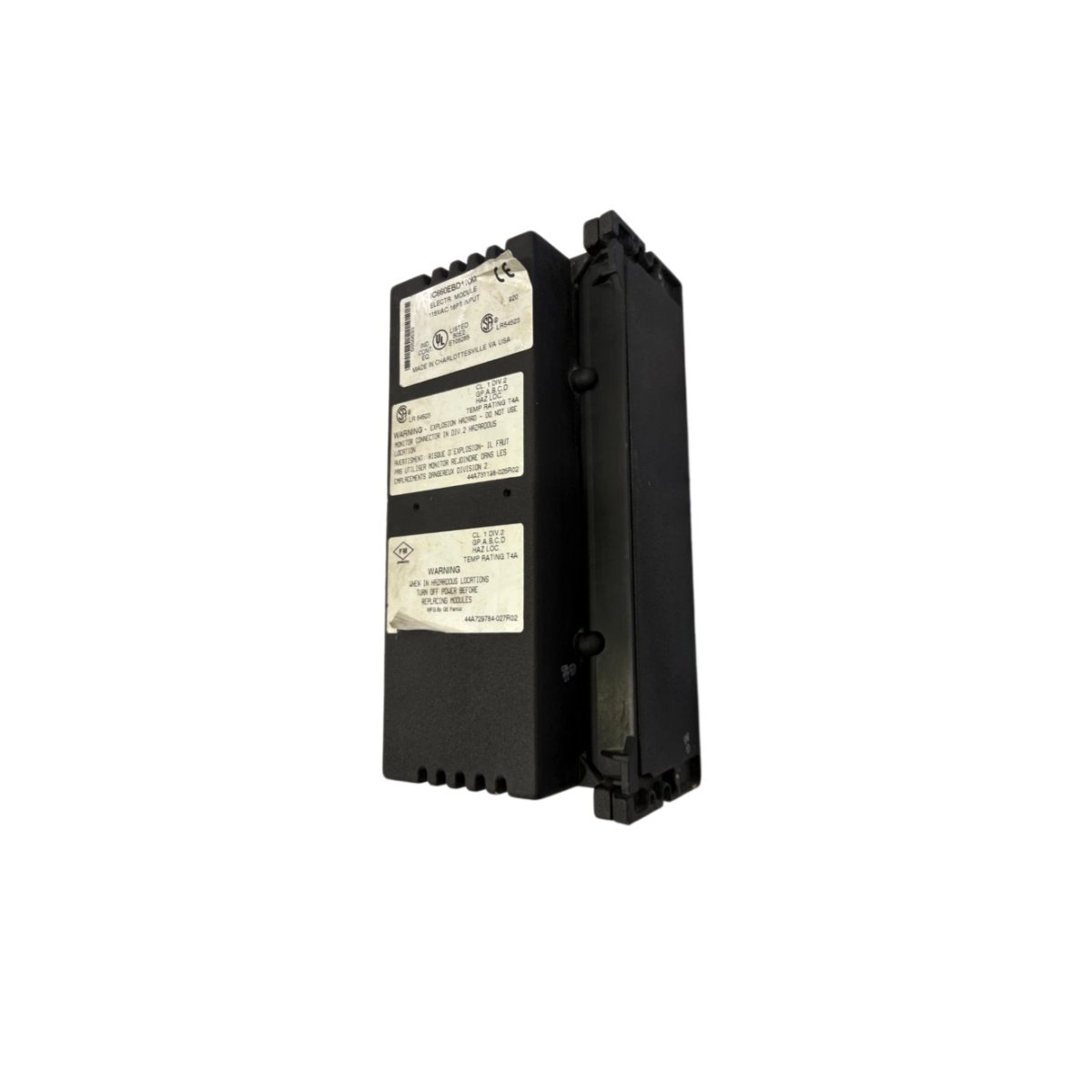

This electronics assembly provides the processing backbone for your GE Genius I/O system. We engineered the IC660EBD110 to deliver reliable data acquisition and control in distributed automation networks.
| Parameter | Specification |
|---|---|
| Product Type | Electronics Assembly / I/O Subsystem Module |
| Dimensions | 140 mm x 110 mm x 50 mm (W x H x D) |
| Weight | 0.45 kg |
| Supply Voltage | 24 V DC nominal (range: 18 V to 30 V) |
| Power Consumption | 5 W typical |
| I/O Capacity | Supports up to 32 discrete points |
| Digital Inputs | 16 channels, 24 V DC (sinking/sourcing) |
| Input Current | 7 mA typical per channel |
| Digital Outputs | 16 channels, 24 V DC, 0.5 A per channel |
| Output Protection | Short-circuit and thermal protection |
| Communication Protocol | Genius LAN (serial bus) |
| Transmission Speed | 153.6 kbps maximum |
| Network Length | Up to 2,000 meters (with repeaters) |
| Diagnostics | 6 LEDs (power, run, fault, bus activity) |
| Isolation | 1,500 V AC (field-to-logic) |
| Operating Temp. | 0 °C to 60 °C |
| Mounting | DIN-rail or panel-mounted |
| Certifications | CE, UL, and CSA approved |
Distributed I/O Processing
The IC660EBD110 handles up to 32 discrete I/O points for distributed control applications. This electronics assembly supports 16 digital inputs and 16 digital outputs on a single unit. The module processes data locally, reducing communication traffic on the main network. Consequently, this architecture improves system response time and reduces the main CPU’s workload.
Flexible Input and Output Configuration
This assembly accepts 24 V DC sinking or sourcing inputs from sensors and pushbuttons. Each input draws 7 mA typical current, minimizing power consumption across all channels. The 16 outputs each source 0.5 A for driving solenoids, relays, and indicator lamps. The module includes short-circuit and over-temperature protection on every output channel for reliable operation.
Genius LAN Communication
The IC660EBD110 communicates over the Genius LAN serial bus at 153.6 kbps. This robust protocol provides deterministic data exchange for real-time control applications. The network supports distances up to 2,000 meters with repeaters for large facilities. This distributed architecture places I/O close to field devices, reducing cabling costs and improving signal quality.
Comprehensive Diagnostics and Status Monitoring
This electronics assembly features six LEDs for immediate visual status feedback. These indicators show power, run mode, fault conditions, and bus communication activity. The module also reports detailed diagnostic data to the host controller over the network. This visibility simplifies troubleshooting and accelerates fault resolution in your automation system.
Superior Isolation and Rugged Construction
The IC660EBD110 provides 1,500 V AC isolation between field I/O and the communication bus. This high isolation protects the network from ground loops and transient surges. The module operates reliably across a 0 °C to 60 °C temperature range. The rugged construction and 0.45 kg weight make it suitable for harsh industrial environments.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 140 × 110 × 50 mm |
