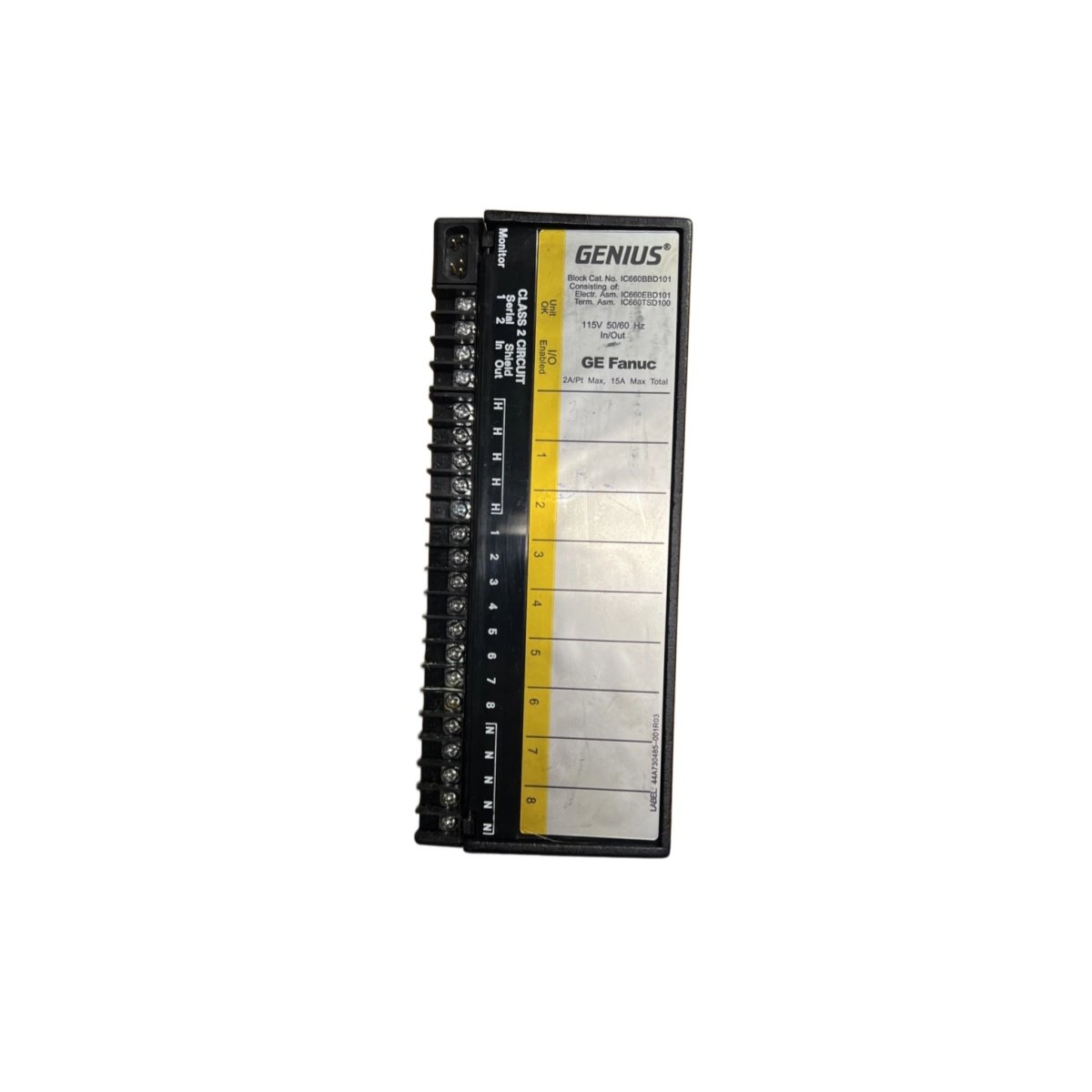

The GE IC660EBD101 electronics assembly block provides a mounting base for Genius I/O modules in distributed control systems. This robust unit integrates power distribution and bus communication within a single housing. Its enclosure measures 220 mm in height, 120 mm in width, and 85 mm in depth.

Technical Specifications

Functional Architecture and Module Support

The GE IC660EBD101 accommodates up to four Genius I/O modules in a single assembly. Users can populate the slots with discrete input, discrete output, or analog modules. Each slot supports up to 16 points for high-density field wiring. This modular approach allows customization for specific machine and process requirements.

Communication and Bus Performance

This assembly block communicates via the Genius bus at 153.6 kbps for deterministic data exchange. The bus interface connects to host PLCs, computers, or other Genius devices on the network. Such high-speed communication ensures rapid I/O updates for time-critical applications. The 1500 V DC isolation protects the bus from field-side electrical disturbances.

Power Distribution and Energy Management

The GE IC660EBD101 accepts a 24 V DC input that powers both the block and installed modules. The assembly draws 3.5 W for its logic and communication circuits. Power distributes through the base to each module slot via the internal backplane. This centralized power architecture simplifies wiring and reduces external power supply requirements.

Terminal Connections and Field Wiring

A 24-pin removable screw terminal block provides convenient access for all field connections. Each terminal accepts wire gauges from 0.5 to 2.5 mm² for robust termination. The terminal block design allows wiring replacement without disturbing field cables. Clear labeling on the base identifies each terminal’s function for efficient installation.

Physical Construction and Environmental Durability

The GE IC660EBD101 uses a robust housing that withstands industrial environments effectively. The enclosure protects internal electronics from dust, debris, and accidental contact. Its IP20 rating suits installation within control cabinets and enclosures. The unit operates reliably across the full temperature range from 0°C to 60°C.

Component Layout and Circuit Design

This assembly contains 38 components, including bus transceivers, voltage regulators, and connectors. The PCB uses flame-retardant material that meets UL 94 V-0 safety standards. Surface-mount technology provides compact placement and improved electrical performance. Gold-plated contacts ensure reliable connections between the base and plug-in modules.

Installation and Mounting

Mount the GE IC660EBD101 on a standard 35 mm DIN rail using the integrated clip mechanism. Secure the unit using the two mounting holes for panel attachment if preferred. Position the assembly horizontally or vertically depending on cabinet space. Ensure adequate clearance around the block for module insertion and cable connections.
