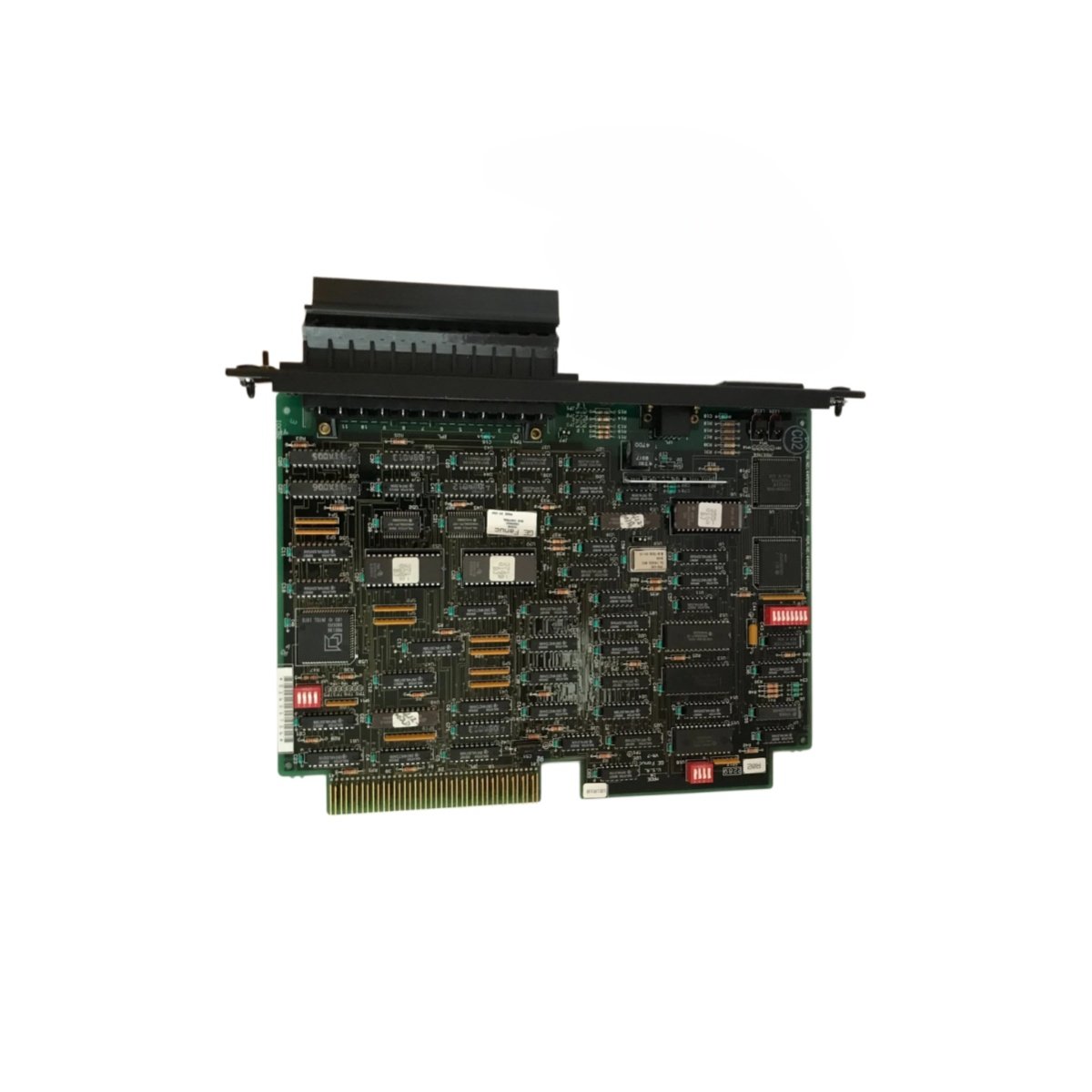

The IC660CBB902G bus control module coordinates communication between GE Genius distributed I/O blocks and the host controller. This unit manages data traffic across the Genius bus network. Engineers depend on it for reliable, high-speed exchange in factory automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Bus Control Module |
| Compatibility | GE Genius Distributed I/O Systems |
| Communication Protocol | Genius Bus Protocol |
| Data Transfer Rate | 153.6 kbit/s Standard |
| Interface | Genius Bus Connectors, Terminal Block |
| Dimensions | 130 mm x 50 mm x 105 mm |
| Weight | Approximately 0.34 kg |
| Component Count | 52 Active Electronic Components |
| Energy Storage | None Required |
| Power Consumption | 24 VDC at 0.4 A |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Communication and Control Logic
The module runs the Genius bus protocol at a standard 153.6 kbit/s rate. Therefore, it exchanges I/O data with the host controller at deterministic intervals. Furthermore, it manages token passing across connected distributed blocks. Consequently, network traffic stays orderly even with many nodes.
Interface and Integration
Genius bus connectors link the IC660CBB902G to the distributed I/O network. As a result, data moves between remote blocks and the central processor efficiently. Additionally, a terminal block handles field power and ground connections.
Power and Environmental Ratings
The unit draws 24 VDC at 0.4 A from the system supply. Moreover, it operates from 0°C to 60°C in industrial control cabinets. Consequently, it suits most factory floor environments.
Installation Notes
Operators mount the module onto a standard panel or DIN rail inside the enclosure. The compact housing fits tight spaces with minimal clearance needs. However, users should verify bus termination before commissioning the network.
