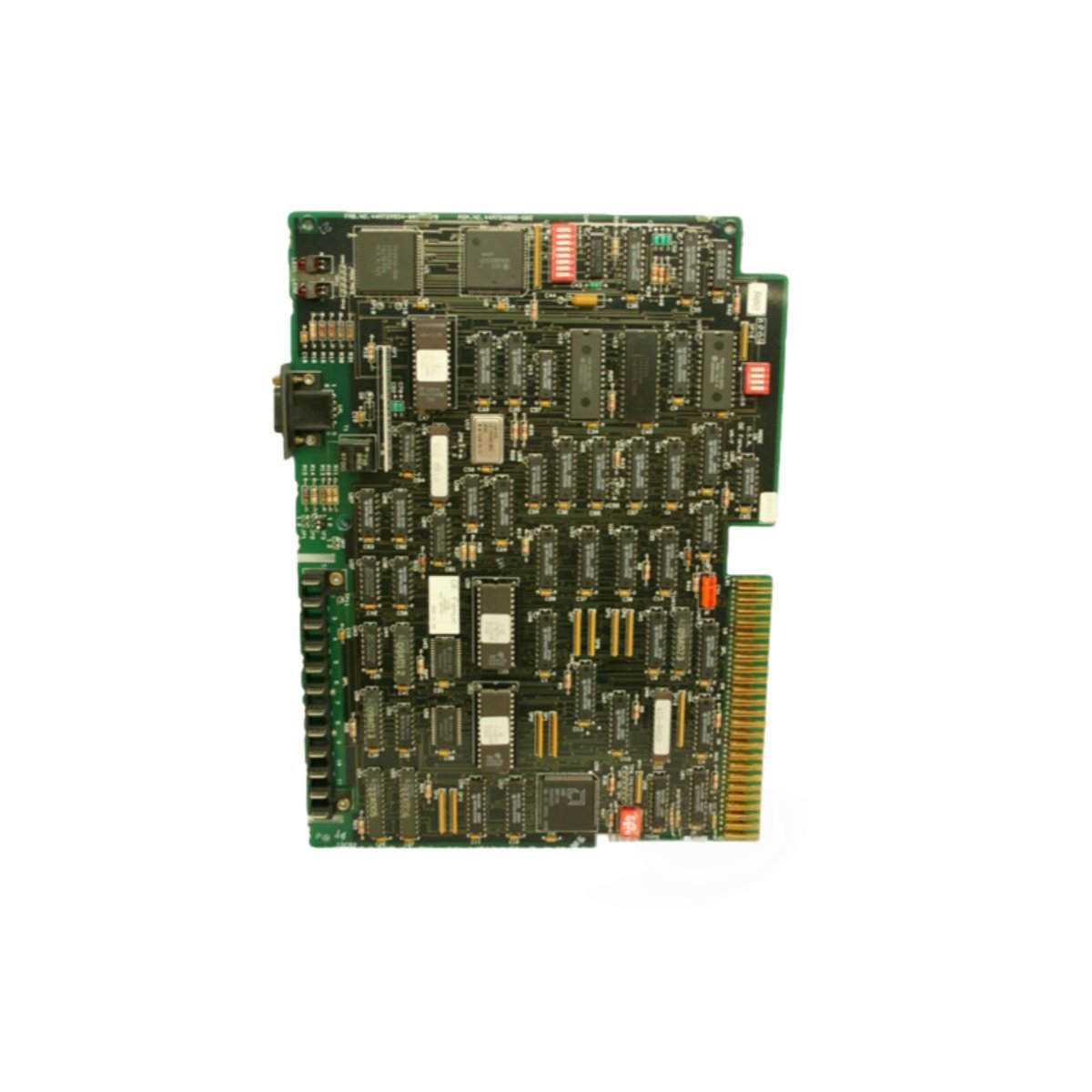

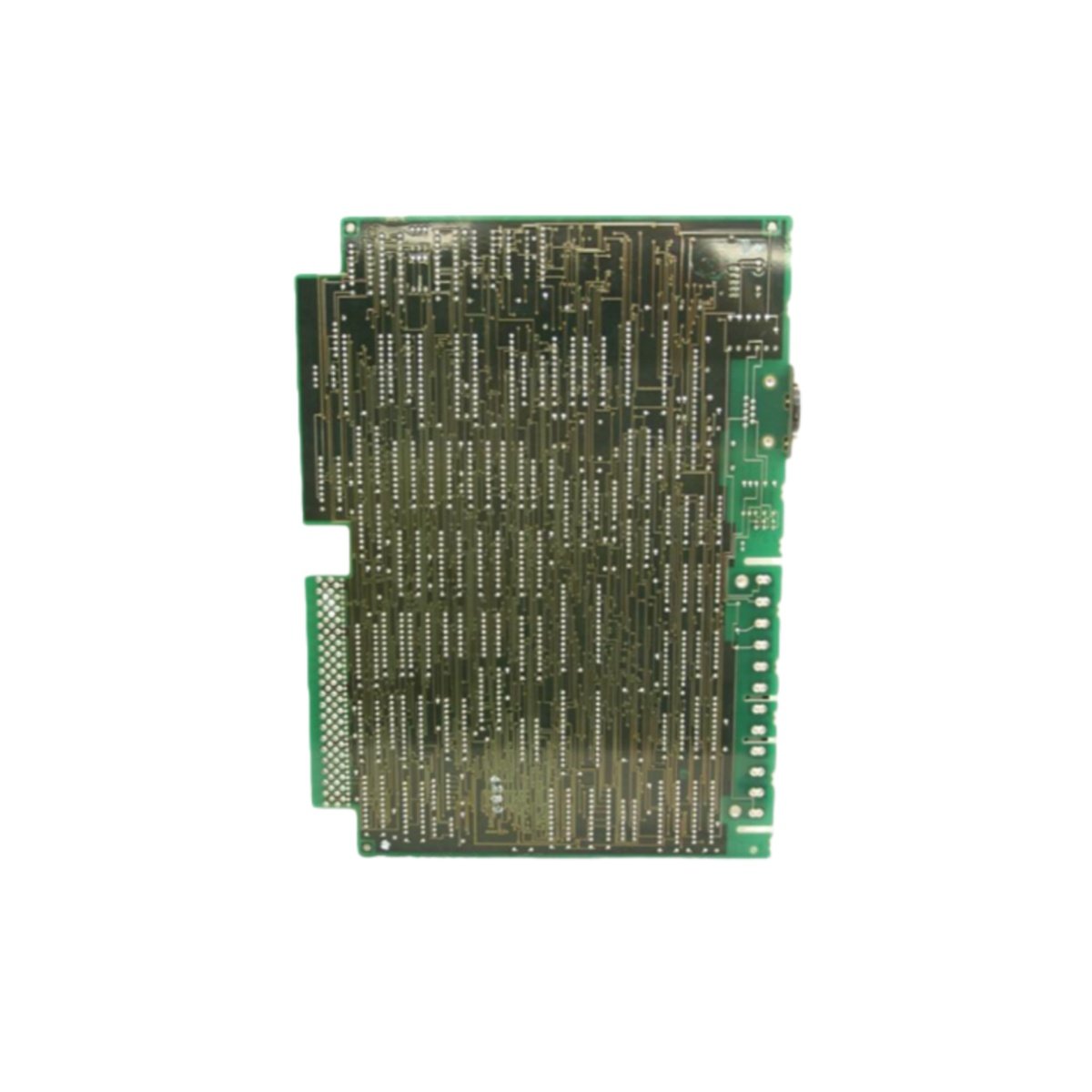

The IC660CBB902 from GE Fanuc Emerson functions as a dedicated bus controller for the Series 6 PLC system. Engineers use this module to connect the CPU to Genius I/O networks seamlessly. It supports communication with up to 31 I/O devices including Genius blocks and interface modules. This controller serves as the critical link between the PLC and distributed field devices.

Core Hardware Architecture and Physical Design

This bus controller features a compact module weighing only 0.43 kg (0.94 lbs) for easy installation. Its rugged construction ensures reliable operation in industrial control environments. The IC660CBB902 includes built-in diagnostics for rapid troubleshooting of network issues. Additionally, front panel LEDs provide immediate status feedback for power and communications.

Installation Flexibility and Configuration Options

The IC660CBB902 installs in any CPU slot, remote I/O rack, or high-capacity I/O rack. Users can also configure it for handheld monitor operation when needed. This flexibility allows for optimal system layout and space utilization. Furthermore, the module supports Phase B protocol for compatibility with various Genius devices.

Communication Specifications and Network Capabilities

This controller supports selectable baud rates with a standard 153.6 kilobaud default setting. It maintains reliable communication over distances up to 2000 feet from the PLC. The IC660CBB902 works with any Genius I/O block exceeding 64 I/O bits. Consequently, it provides scalable I/O capacity for both small and large applications.

Technical Specifications

Installation and Integration Benefits

The IC660CBB902 mounts easily in any supported rack location without special tools. Its diagnostic capabilities reduce downtime through rapid fault identification. Users can mix this controller with various Genius I/O blocks freely. Therefore, it offers flexible network configuration for distributed control applications.
