Reliable Bus Redundancy for Genius Networks

This bus switching module provides automatic redundancy management for Genius I/O systems. The IC660BSM120 ensures continuous communication between the host controller and remote I/O blocks. It handles bus switching operations without interrupting control processes. The module’s intelligent design supports both simplex and redundant bus configurations. Consequently, the IC660BSM120 enhances system availability and fault tolerance significantly.

Technical Specifications and Physical Attributes

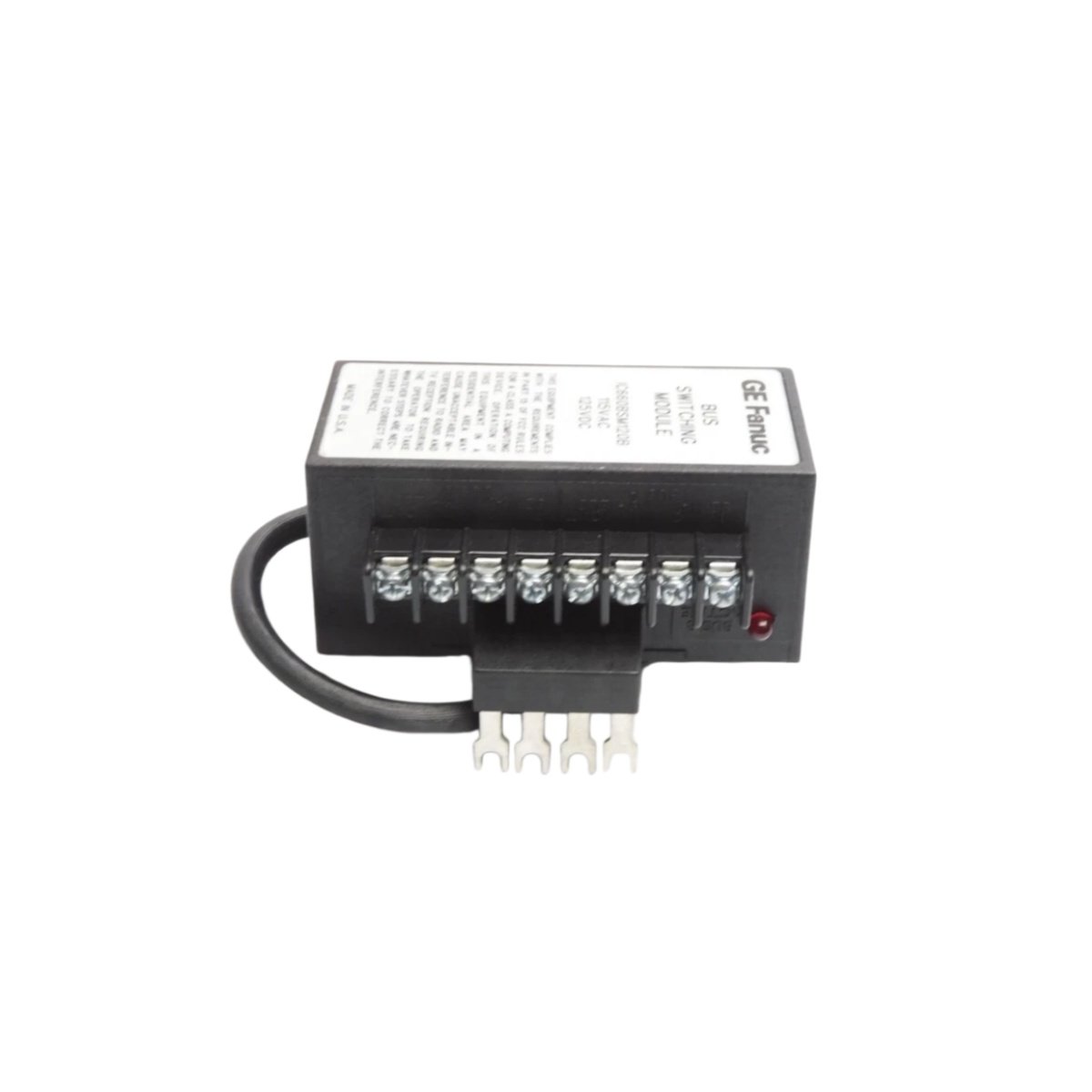

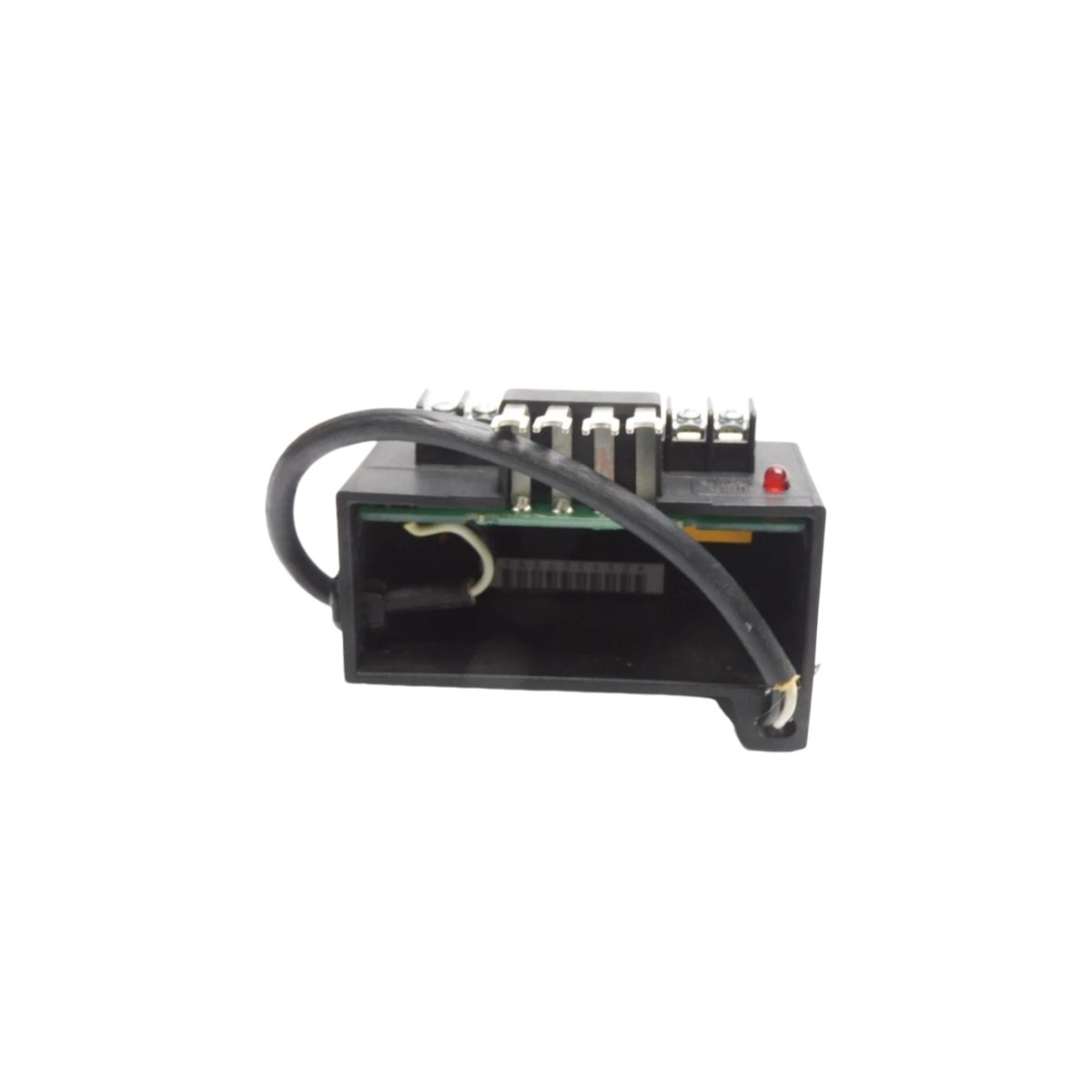

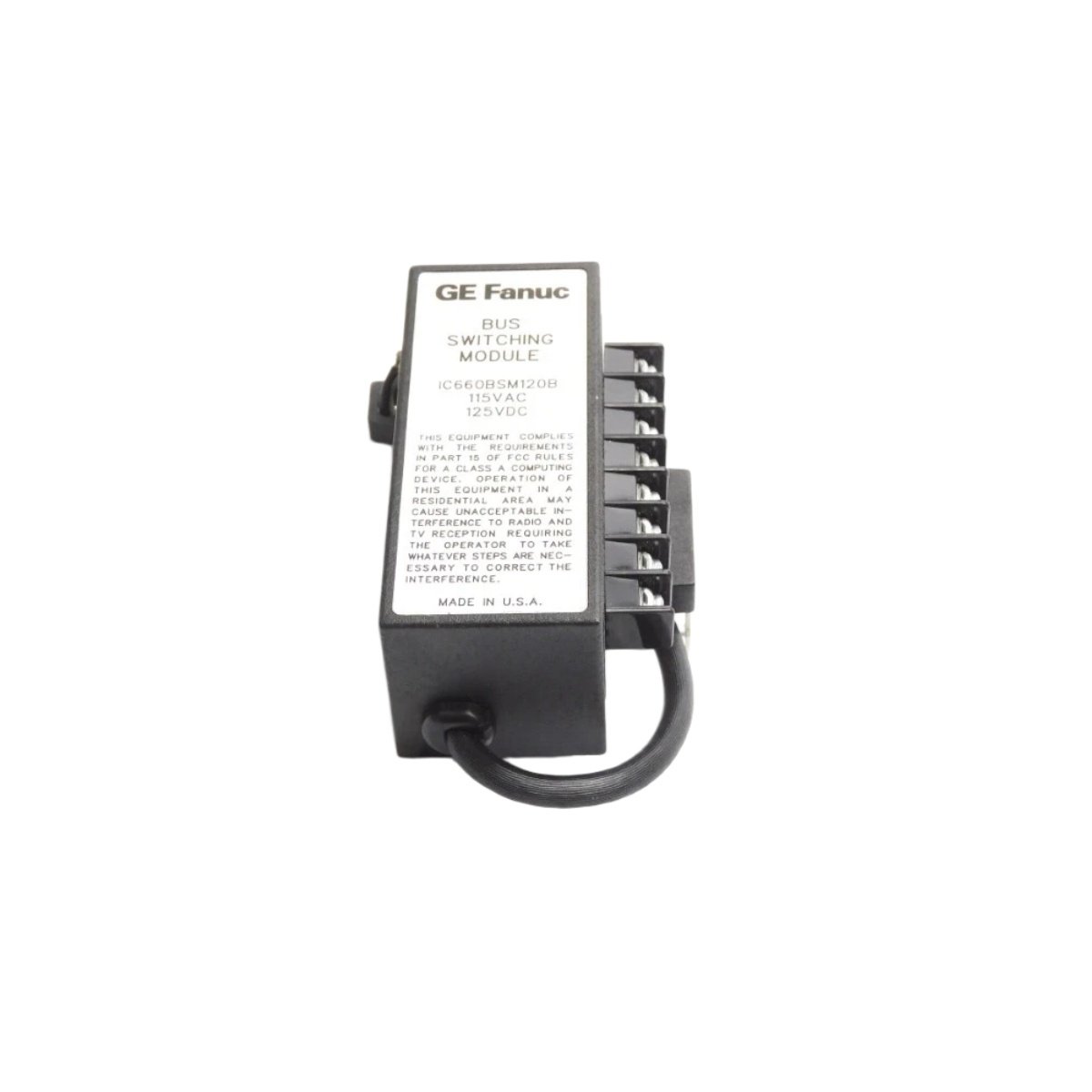

The IC660BSM120 operates on a nominal 24 V DC supply for internal logic. It provides four bus ports for connecting multiple I/O blocks on the network. The module supports a transmission rate of 153.6 kbps. It measures approximately 170 mm in height, 130 mm in depth, and 45 mm in width. The unit weighs about 0.8 kg. Furthermore, the IC660BSM120 operates within a temperature range of -20 °C to 60 °C. Its diagnostic LEDs provide real-time network status monitoring.

Installation and Application Guidance

This module serves as the central switching unit for redundant Genius I/O networks. First, mount the IC660BSM120 securely on a DIN rail or panel. Then, connect the four bus cables to the corresponding I/O blocks. For redundancy, connect both bus cables from the host controller to the module. Additionally, configure the module using the configuration software as required. The IC660BSM120 excels in critical applications like power generation, water treatment, and chemical processing.
