Product Overview

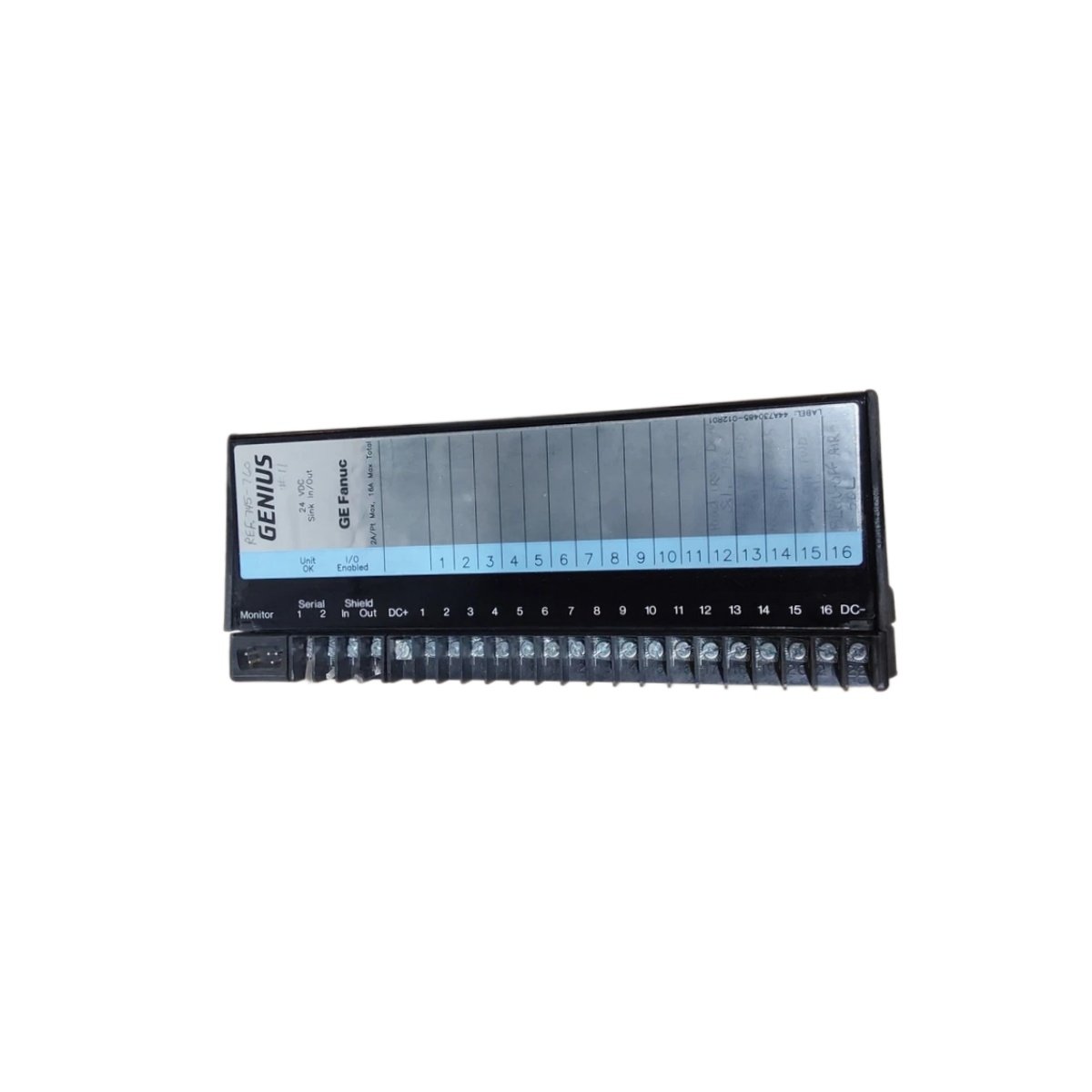

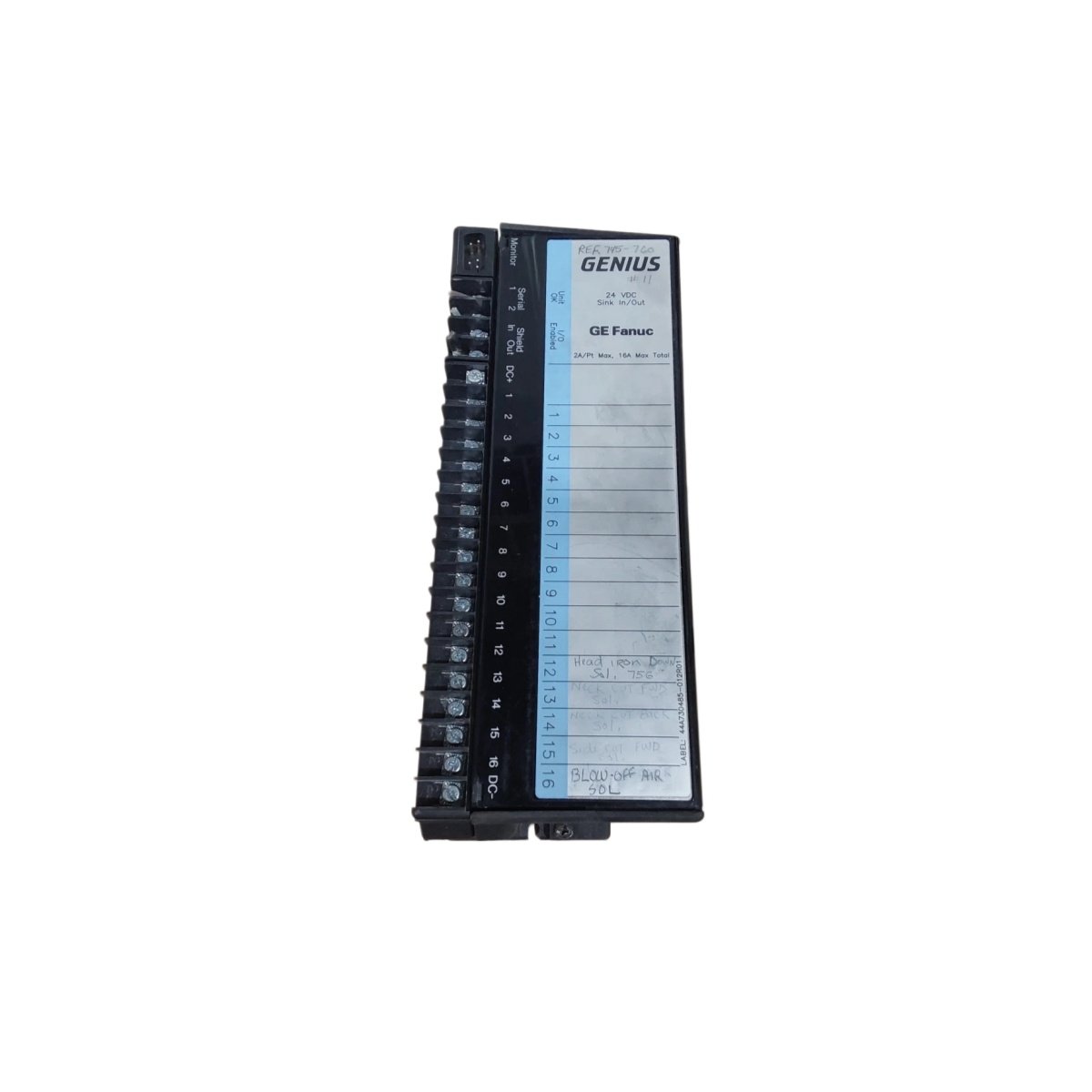

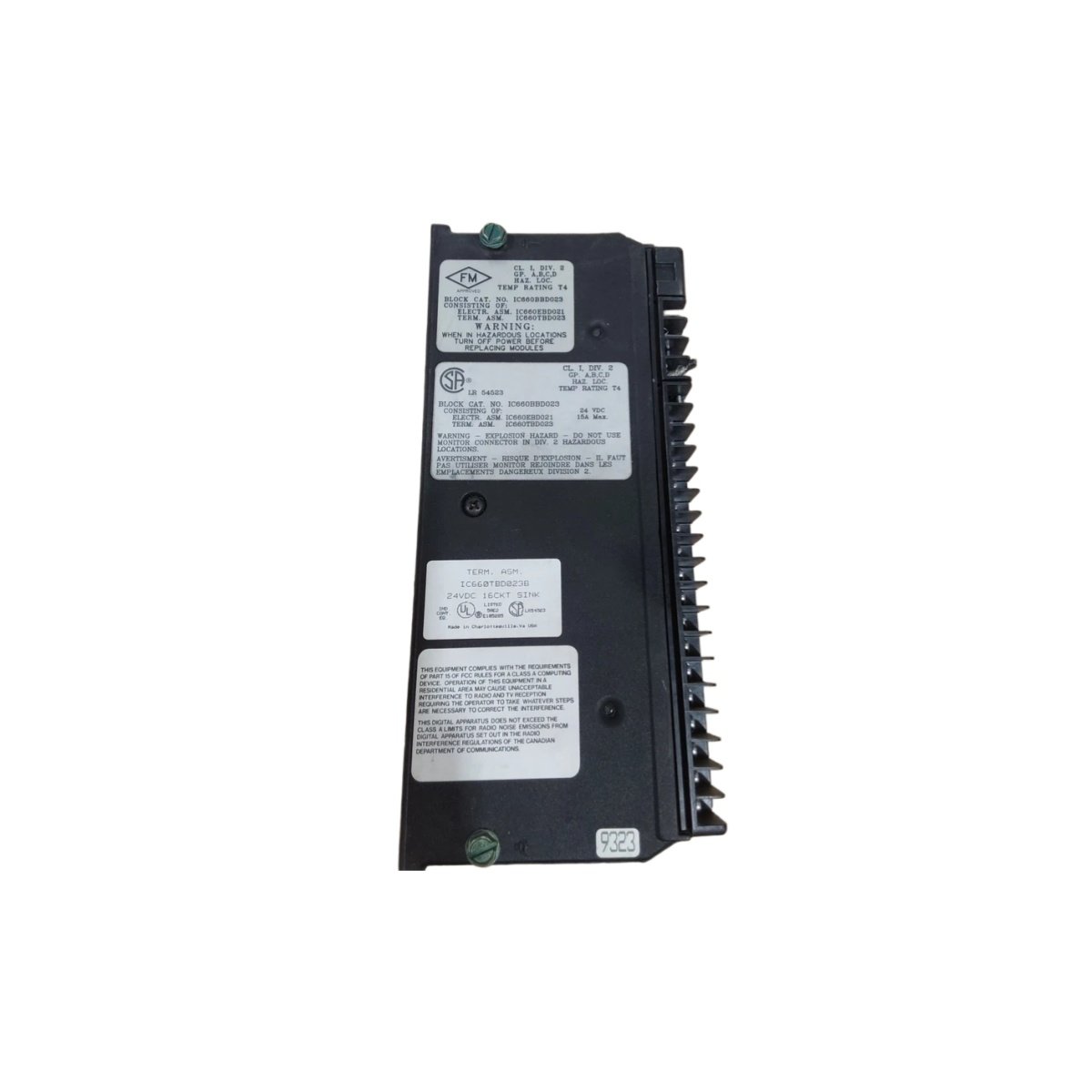

The GE IC660BBD023 operates as a distributed I/O block within the Genius™ fieldbus system. This sink-type module interfaces directly with field sensors and actuators for reliable control. Industrial facilities deploy this unit to extend I/O connectivity across large sites. The block’s rugged housing withstands harsh environmental conditions in manufacturing and process applications.
Technical Specifications
This I/O block features a Genius bus interface for seamless network integration. The GE IC660BBD023 provides sinking outputs that switch 24 V DC loads to ground. Its built-in self-diagnostics simplify troubleshooting and reduce system downtime. The terminal block accommodates solid or stranded wires for field connections.
| Parameter | Specification |
|---|---|
| Product Type | Genius Sink I/O Block |
| Series Compatibility | GE Genius™ I/O System |
| Number of Digital Inputs | 8 sinking inputs (24 V DC) |
| Input Voltage Range | 10-30 V DC |
| Input Current | 7 mA typical at 24 V DC |
| Input Response | 1 ms typical |
| Number of Digital Outputs | 8 sinking outputs (24 V DC) |
| Output Current per Channel | 0.5 A (continuous) |
| Total Output Current | 4 A (max) |
| Output Protection | Short-circuit and thermal protection |
| Communication Protocol | Genius bus protocol |
| Data Rate | 153.6 kbps (Genius standard) |
| Diagnostics | Internal self-test; feedback via bus |
| Power Supply | 24 V DC (external, user-supplied) |
| Current Consumption | 100 mA (typical, without outputs) |
| Dimensions (W x H x D) | 130 mm x 110 mm x 80 mm |
| Weight | Approximately 0.90 kg |
| Connector Type | 24-pin terminal block (screw clamps) |
| Housing Material | High-impact thermoplastic |
| Protection Rating | IP20 |
| Energy Storage | None (passive circuits) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
I/O Characteristics
The GE IC660BBD023 provides 8 digital inputs and 8 sinking digital outputs per block. Its input circuits accept signals from pushbuttons, limit switches, and proximity sensors. The outputs drive solenoids, indicator lights, and small relays with ease. This block’s sink configuration connects loads between the output terminal and the common positive supply.
Genius Bus Integration
The GE IC660BBD023 communicates with the host controller through the Genius bus network. This interface supports both peer-to-peer and controller-to-block data exchanges. The block reports its status and diagnostic data to the controller automatically. Users can configure the block’s node address and parameters through the host software.
Diagnostics and Troubleshooting
The GE IC660BBD023 includes comprehensive diagnostic features for field maintenance. Its self-test routines detect short circuits, open wiring, and internal faults. The module reports these conditions back to the controller for alarm generation. Local LED indicators show power, communication, and I/O status at a glance.
Installation Considerations
Users mount this block on a DIN rail or directly onto a panel. The GE IC660BBD023 requires 24 V DC power from an external supply. Its detachable terminal blocks simplify wiring and future replacements. The module’s compact housing suits both machine-mount and cabinet installations.
Application Scenarios
This block serves well in material handling systems with distributed I/O requirements. Automotive plants deploy it for conveyor control and robotic workcells. The GE IC660BBD023 also suits packaging lines and assembly automation applications.
Details
| Weight | 0.9 kg |
|---|---|
| Dimensions | 130 × 110 × 80 mm |
