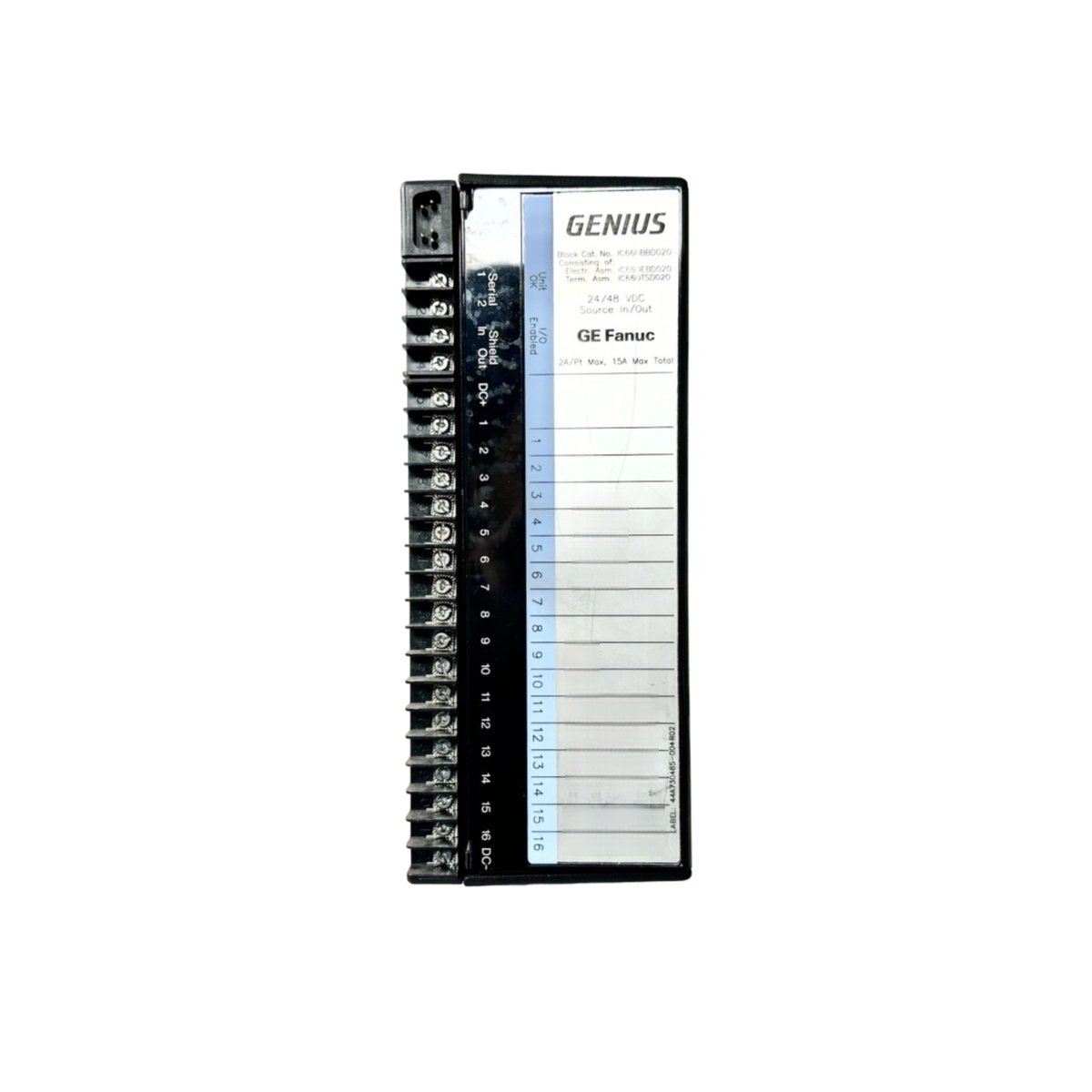

This GE Field Control module offers a compact DC source I/O solution for distributed architectures. It combines 16 discrete input points and 16 discrete output points in a single block. Engineers can rely on this unit for robust performance across various automation tasks. Its terminal base simplifies field wiring and reduces overall installation time. The block suits both new system designs and legacy upgrade projects.

Physical Characteristics and Mounting Design

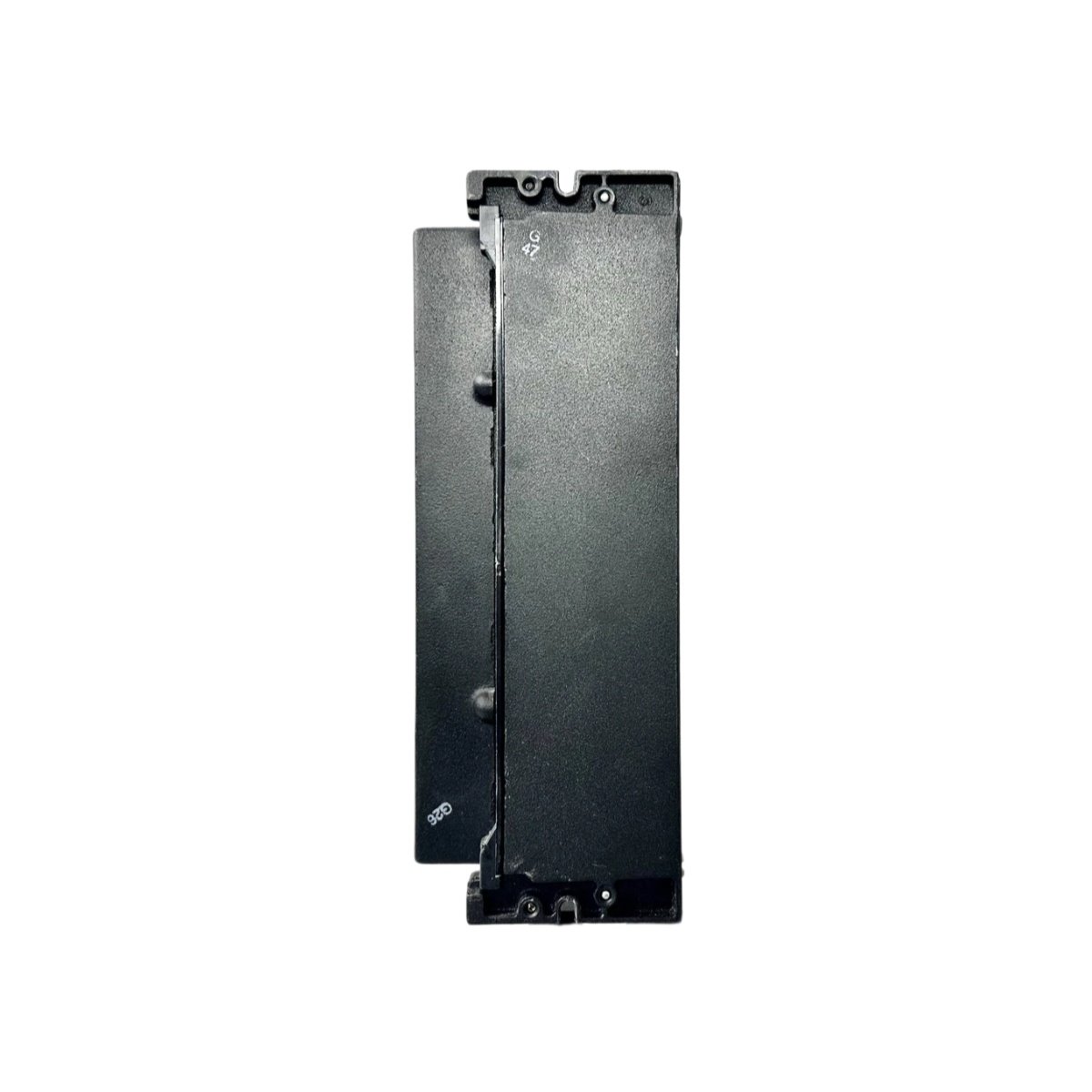

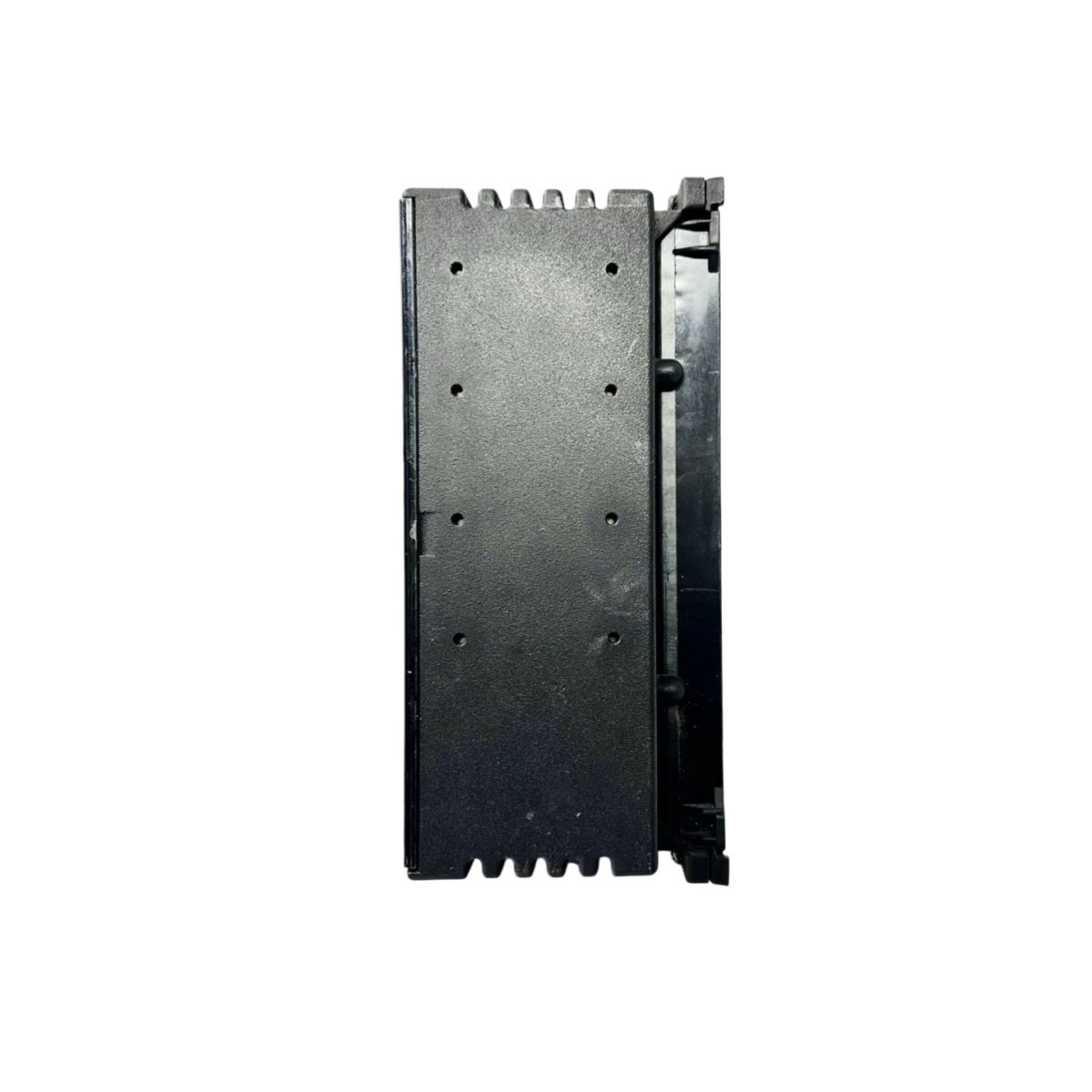

The block measures approximately 5.1 inches in width and 4.3 inches in height. Its rugged housing weighs roughly 2.2 pounds for durable industrial use. A DIN-rail mounting mechanism secures the unit firmly inside control panels. This design allows quick removal and replacement during maintenance activities. The integrated terminal base includes clearly labeled connection points for every channel.

Input and Output Channel Specifications

The module provides 16 sourcing input channels rated for 24 VDC operation. Each input features a nominal current draw of 7 mA for reliable signal detection. Simultaneously, the unit delivers 16 sourcing outputs with a capacity of 0.5 A per point. All output channels include built-in overcurrent protection and short-circuit fault tolerance. The total output current sums to 8 A across all active points. This configuration supports direct control of solenoids, indicators, and small relays.

Communication and Power Management

A dedicated Genius bus interface handles all data exchange with the host controller. This communication protocol supports baud rates up to 153.6 kbps for efficient scanning. The block draws 300 mA from the 24 VDC field power supply. It also requires 100 mA from the 5 VDC logic supply for internal circuitry. An onboard capacitor bank stores enough energy to maintain output states during brief power sags. This energy storage feature enhances system stability and prevents unexpected actuator trips.

Diagnostic Capabilities and Environmental Tolerance

Built-in diagnostic routines continuously monitor input status and output health. The module reports open-wire conditions and short circuits directly to the controller. LED indicators on the front panel provide immediate visual feedback for each channel. The unit operates reliably across a temperature range from 0 to 55 degrees Celsius. Its epoxy-coated circuit board resists moisture and airborne contaminants effectively.

Configuration and System Integration

Configuration requires only simple network addressing using the built-in rotary switches. Users can set the node address without specialized software tools. The module stores its configuration parameters in non-volatile flash memory. This storage retains all settings after a complete power cycle. The block integrates seamlessly with Series 90-30 and Series 90-70 systems.
