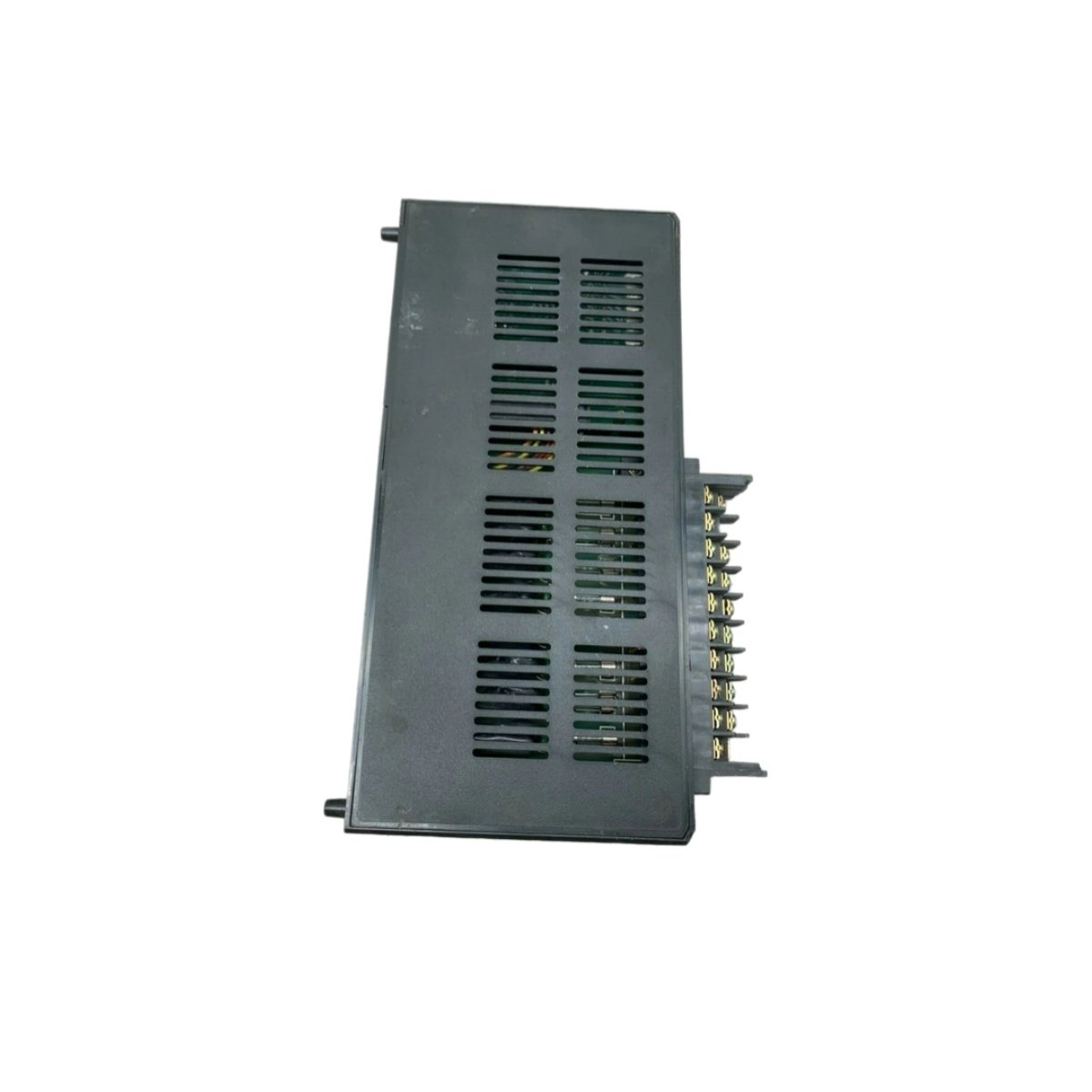

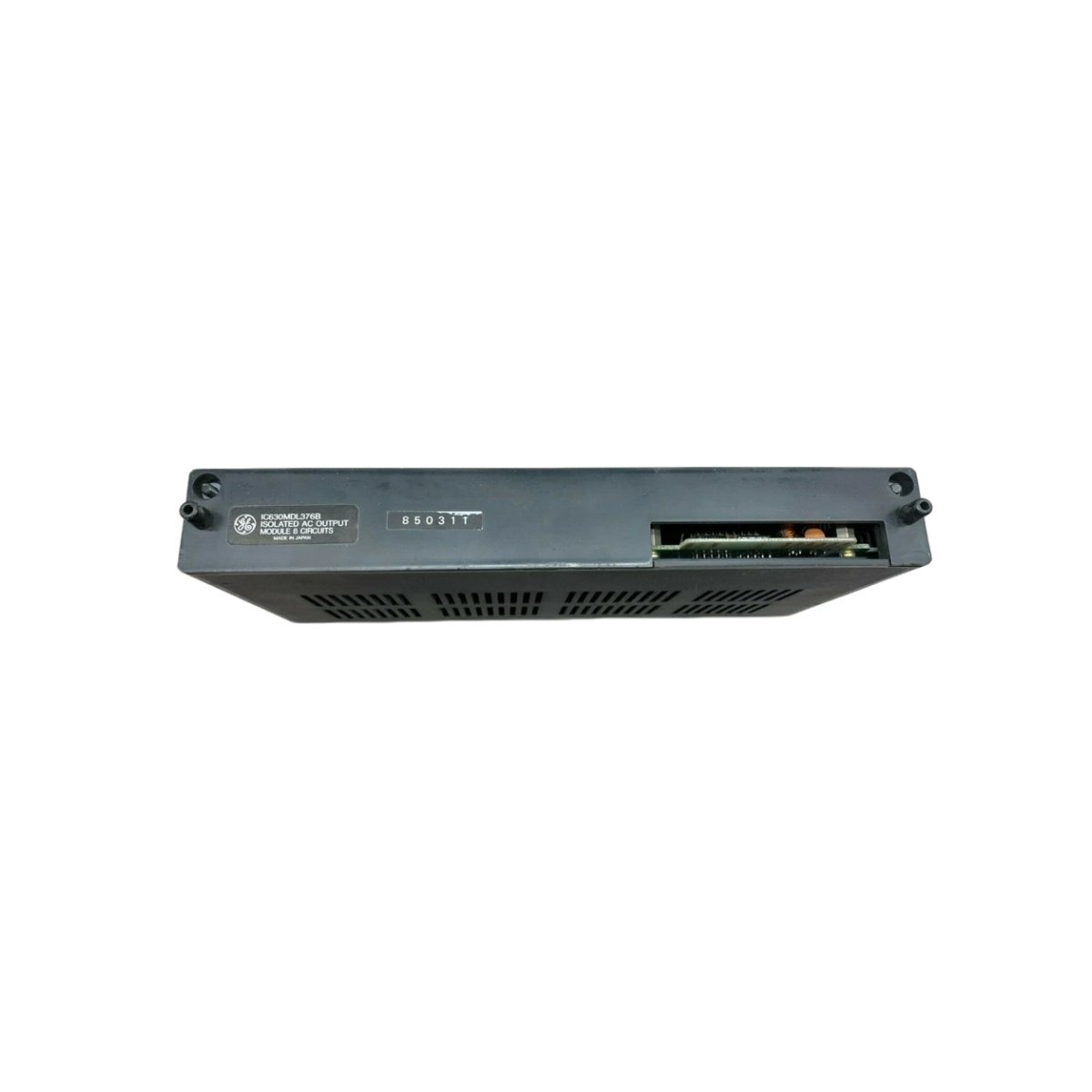

This output module controls discrete AC loads in GE Fanuc Series Three programmable controllers. It provides eight isolated circuits for driving relays, solenoids, and indicator lights . Engineers choose this module for its electrical isolation and robust fuse protection. Its design suits OEM machinery and retrofit applications requiring reliable load switching.
Output Architecture and Load Driving Capability
The GE IC630MDL376 offers eight isolated output circuits, each independent from the others . Each circuit can drive loads from 25 mA to 2 A at 115/230 VAC . Users can connect separate AC power sources to different outputs. Additionally, each output includes a 3 A fuse for circuit protection . This isolation ensures safe operation with mixed loads in diverse systems.
Voltage Ratings and Electrical Specifications
The GE IC630MDL376 operates across a wide voltage range of 85 to 265 VAC . The input voltage is selectable for either 115 VAC or 230 VAC nominal operation . Each output’s maximum current capacity reaches 2 A at 240 VAC. The module operates within a temperature range of 0°C to 60°C . Furthermore, humidity tolerance spans 5% to 95% non-condensing for versatile deployment .
Mechanical Design and Physical Specifications
The GE IC630MDL376 features LED indicators for each output to show ON/OFF status . Its weight is approximately 0.91 kg (2.00 lbs) . The module’s compact design fits standard Series Three rack slots. Each output circuit has two field terminals for flexible wiring configurations . Consequently, the module provides both durability and ease of installation.
Key Technical Specifications
The table below summarizes the critical parameters for the GE IC630MDL376.
| Parameter | Specification |
|---|---|
| Model Number | IC630MDL376 |
| Manufacturer | GE Fanuc / Emerson |
| Product Category | Isolated Output Module |
| Series | Series Three |
| Output Points | 8 isolated circuits |
| Voltage Rating | 115/230 VAC, 85–265 VAC range |
| Output Current | 25 mA to 2 A per point |
| Fuse Protection | 3 A per output |
| Isolation | Each circuit isolated from others |
| Status Indication | LED per output |
| Weight | Approx. 0.91 kg (2.00 lbs) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
Application and System Integration
The GE IC630MDL376 connects to typical AC loads like motor starters and solenoid valves . Users must supply external AC power to each output circuit . The module installs in any I/O slot of a Series Three baseplate. Therefore, this module provides a reliable interface for controlling AC loads in industrial automation.
Details
| Weight | 0.65 kg |
|---|---|
| Dimensions | 140 × 110 × 75 mm |
