8-Channel Relay Output Module for Series One PLCs

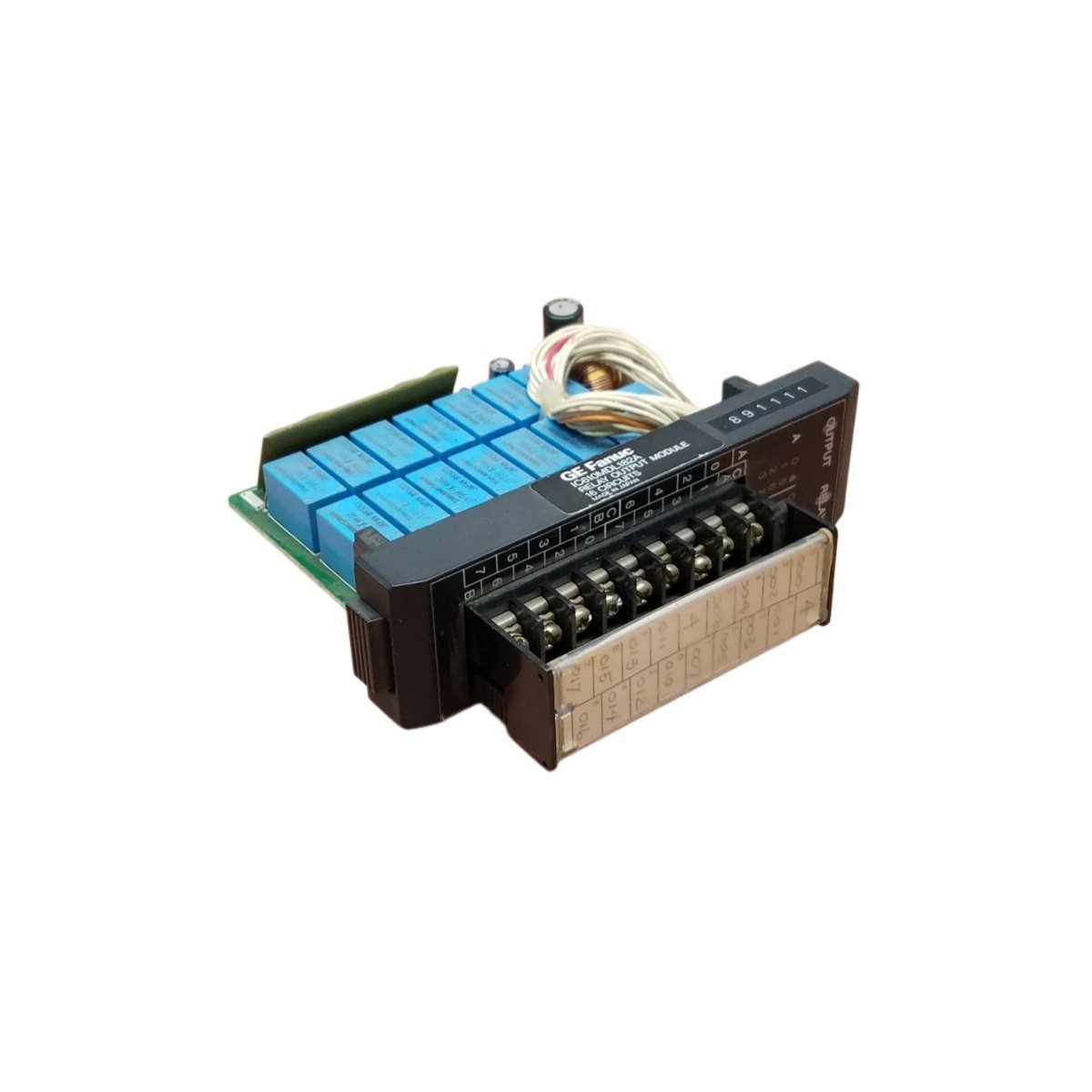

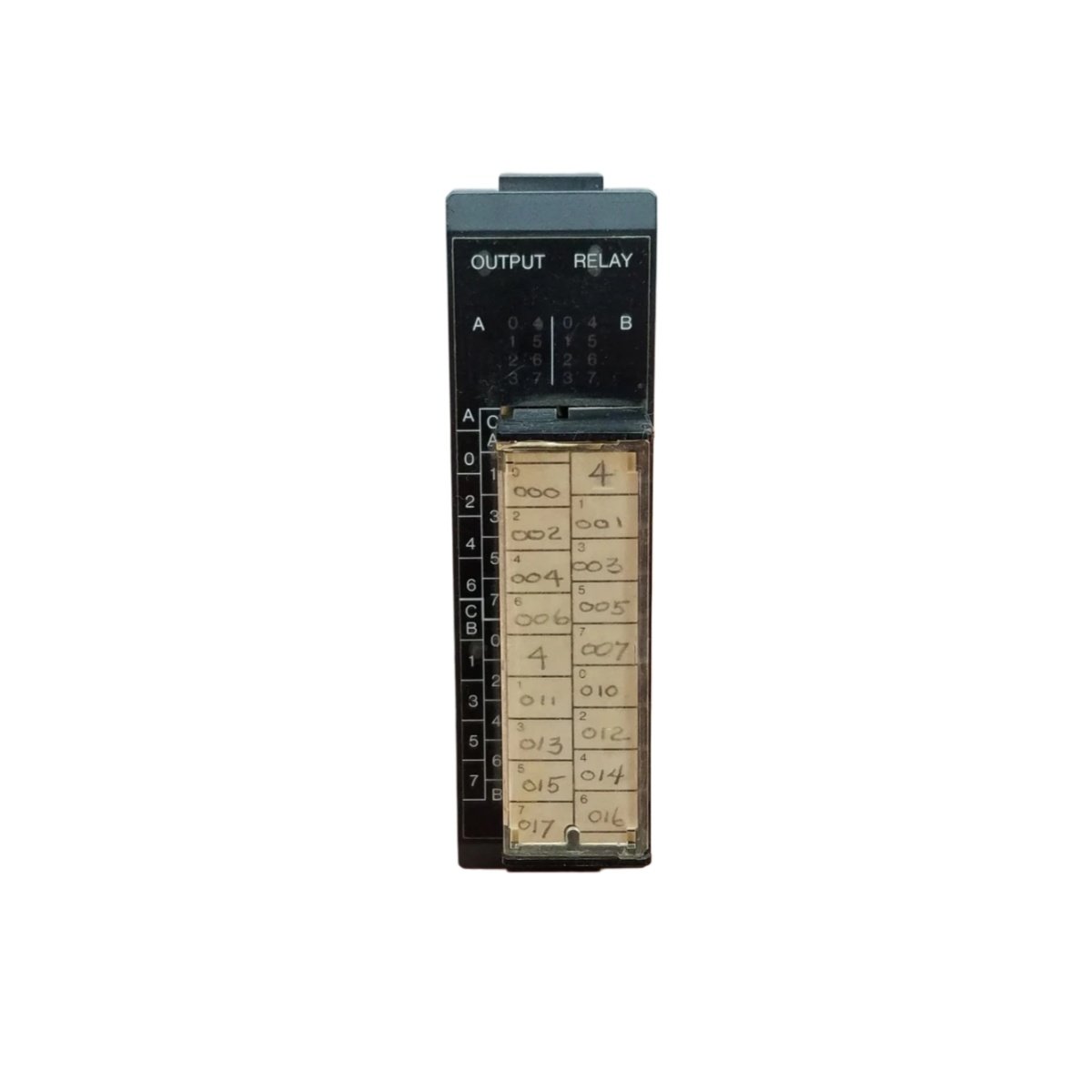

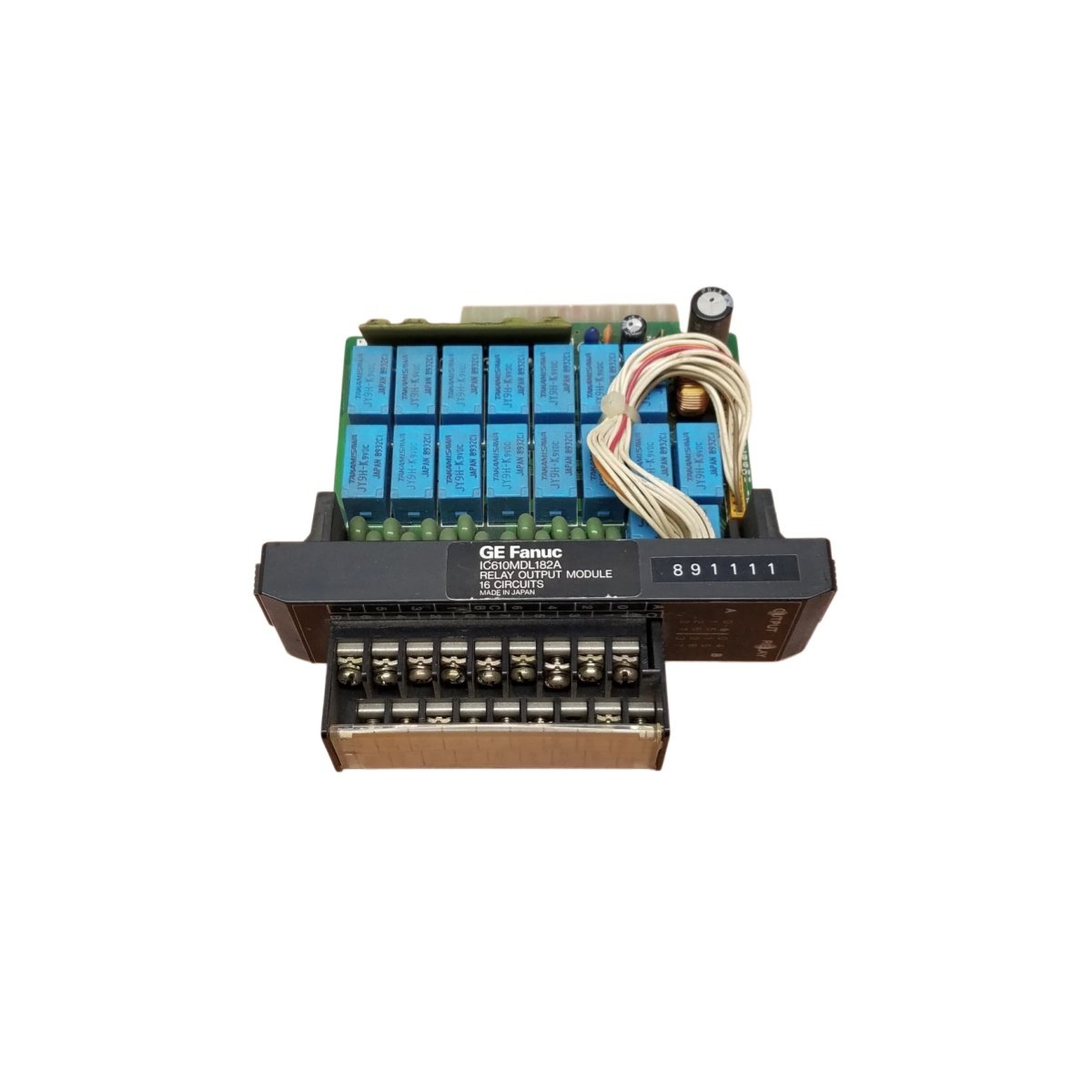

The GE IC610MDL182A functions as a digital relay output module for the Series One programmable logic controller platform. This module switches AC and DC loads through isolated relay contacts. Its design provides robust output control for industrial automation applications.

Output Specifications and Contact Ratings

This relay output module features 8 independent channels with form C contacts. Each relay switches 2 A at 120 VAC or 28 VDC for driving solenoids and contactors. The module provides electrical isolation between the PLC backplane and field outputs. Furthermore, the relay contacts handle inductive and resistive loads effectively. Consequently, this module delivers reliable switching for diverse field devices.

Diagnostic and Protection Features

The IC610MDL182A includes visual status indicators for each output channel. A built-in LED display shows relay activation status for quick troubleshooting. The module’s relay contacts withstand millions of mechanical operations. Additionally, the module incorporates protection against contact arcing. For this reason, this module ensures long-term reliable operation.

Physical Specifications and Environmental Ratings

This relay output module mounts in the Series I/O rack. Its dimensions fit standard rack slots for straightforward installation. The module draws 100 mA from the backplane supply. Furthermore, it operates reliably from 0 °C to 60 °C ambient temperature. Consequently, this module provides a dependable output solution for Series One systems.

Technical Specifications

Details
