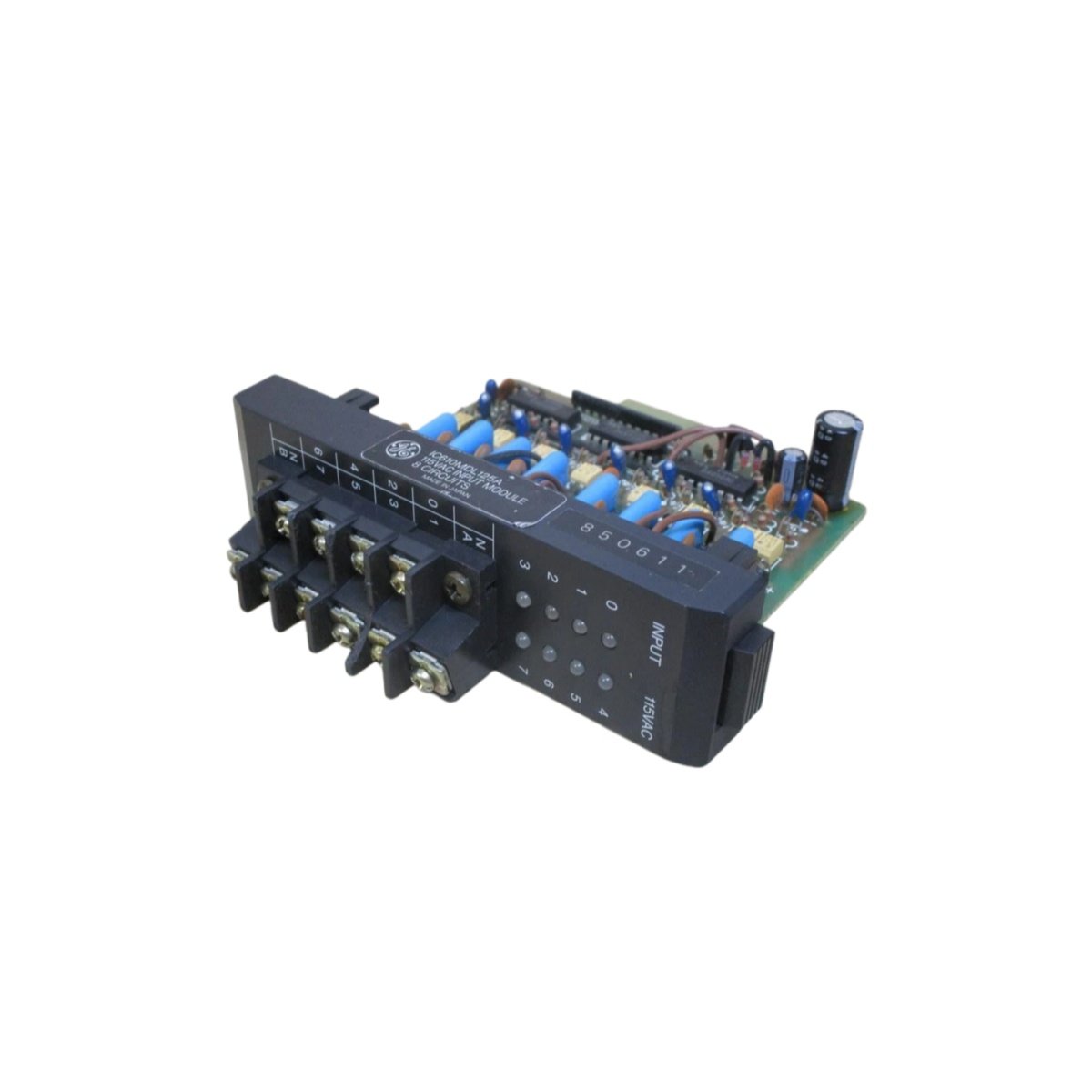

The IC610MDL125A digital input module captures discrete field signals for GE Series One PLC systems. This unit converts switch, limit, and sensor states into logic-level data. Engineers rely on it for dependable status monitoring in small machine control panels.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital Input Module |
| Compatibility | GE Series One PLC Systems |
| Input Channels | 16 Discrete Inputs |
| Input Voltage | 24 VDC |
| Input Current | 8 mA Per Point at Rated Voltage |
| Interface | Backplane Bus Connector, Front Terminal Block |
| Dimensions | 120 mm x 45 mm x 100 mm |
| Weight | Approximately 0.28 kg |
| Component Count | 44 Active Electronic Components |
| Energy Storage | None Required |
| Power Consumption | 5 VDC at 0.5 A |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Input Performance and Signal Handling
The module provides 16 discrete input points for switch and sensor monitoring. Therefore, it reads field contact states without external signal conditioning. Furthermore, each point draws roughly 8 mA at the rated 24 VDC level. Consequently, it interfaces directly with most industrial pilot devices.
Interface and Integration
A backplane connector links the IC610MDL125A to the Series One CPU rack. As a result, input status travels to the processor through protected internal paths. Additionally, the front terminal block simplifies field wiring and troubleshooting.
Power and Protection
The unit draws 5 VDC at 0.5 A from the system power supply. Moreover, internal filtering rejects electrical noise from nearby drive equipment. Consequently, connected signals remain stable in electrically noisy plants.
Installation Notes
Operators insert the module into a standard Series One rack slot. The single-slot housing conserves chassis space for additional I/O modules. However, users should verify input voltage levels before commissioning the rack.
