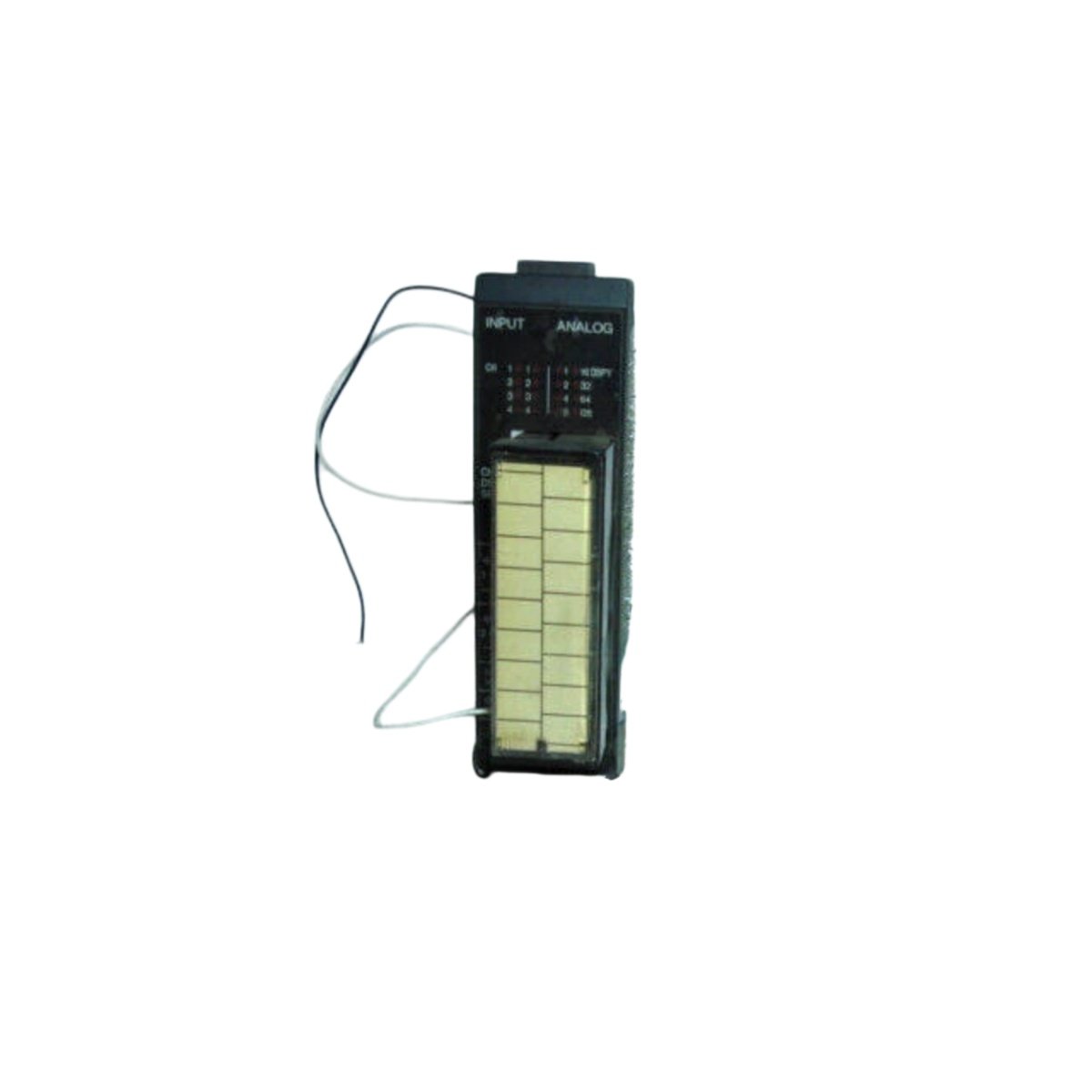

The IC610MDL116A analog input module captures continuous process signals for GE Series One PLC systems. This unit converts voltage and current inputs into digital values for control logic. Engineers rely on it for accurate measurement in small machine and process applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Analog Input Module |
| Compatibility | GE Series One PLC Systems |
| Input Channels | 8 Analog Inputs |
| Input Signals | 0–10 VDC, 4–20 mA |
| Resolution | 12-Bit |
| Interface | Backplane Bus Connector, Front Terminal Block |
| Dimensions | 120 mm x 45 mm x 100 mm |
| Weight | Approximately 0.30 kg |
| Component Count | 52 Active Electronic Components |
| Energy Storage | None Required |
| Power Consumption | 5 VDC at 0.6 A |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Input Performance and Accuracy
The module offers 8 analog channels for voltage and current measurement tasks. Therefore, it reads sensors, transmitters, and position feedback devices directly. Furthermore, 12-bit resolution captures small signal changes with good fidelity. Consequently, control loops stay within tight process tolerances.
Interface and Integration
A backplane connector links the IC610MDL116A to the Series One CPU rack. As a result, measurement data reaches the processor through protected internal paths. Additionally, the front terminal block simplifies field wiring and troubleshooting.
Power and Signal Quality
The unit draws 5 VDC at 0.6 A from the system power supply. Moreover, internal filtering rejects electrical noise from nearby drive equipment. Consequently, connected signals remain stable in electrically noisy plants.
Installation Notes
Operators insert the module into a standard Series One rack slot. The single-slot housing conserves chassis space for additional I/O modules. However, users should verify input signal ranges before commissioning the rack.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
