Overview

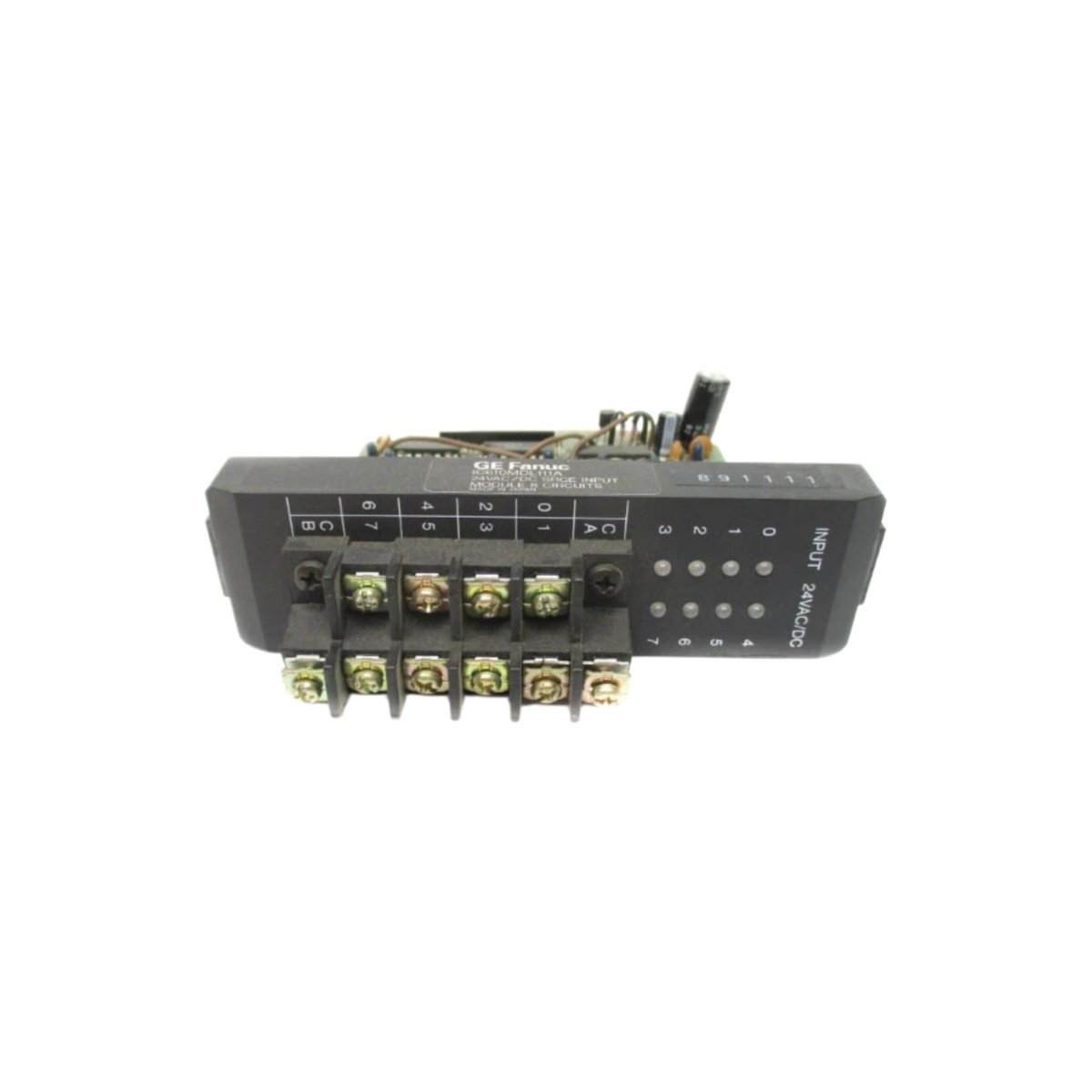

The IC610MDL111A belongs to the GE Fanuc Series One family, a line of compact PLC input modules. Engineers deploy this module to capture discrete field signals from switches, relays, and sensors. Consequently, it feeds status data into the Series One CPU for logic processing.

Key Technical Specifications

The IC610MDL111A provides discrete input points in a compact plug-in package. Moreover, it supports AC input voltage for direct field device connection. The table below lists the core parameters.

Installation and Interface Details

The module slides into any Series One rack slot with minimal effort. Field wiring lands on a front-panel terminal strip, which speeds up maintenance. Furthermore, the module draws only 60 mA from the 5 VDC backplane. As a result, technicians reduce power supply sizing and cabinet heat.

Signal Processing and Response

The module detects on-state signals above 80 VAC and ignores levels below 30 VAC. Meanwhile, the 10 mA input current keeps field device loading low. Additionally, the 20 ms response time suits most discrete control tasks. Therefore, the module handles pushbuttons, limit switches, and relay contacts reliably.

Environmental and Mechanical Ratings

The enclosure operates from 0 °C to +60 °C in typical plant conditions. Moreover, the sealed housing tolerates 5–95% relative humidity without condensation. The compact footprint of 100 mm × 40 mm × 95 mm fits crowded racks. Consequently, the module suits small machines, conveyor systems, and process skids.

Why Engineers Choose This Module

This module offers several practical advantages. First, it accepts 115 VAC field signals directly. Second, it packs eight input points into one slot. Third, its 1,500 VAC isolation protects the backplane from field surges. Therefore, maintenance teams simplify troubleshooting and reduce spare-part inventory.
