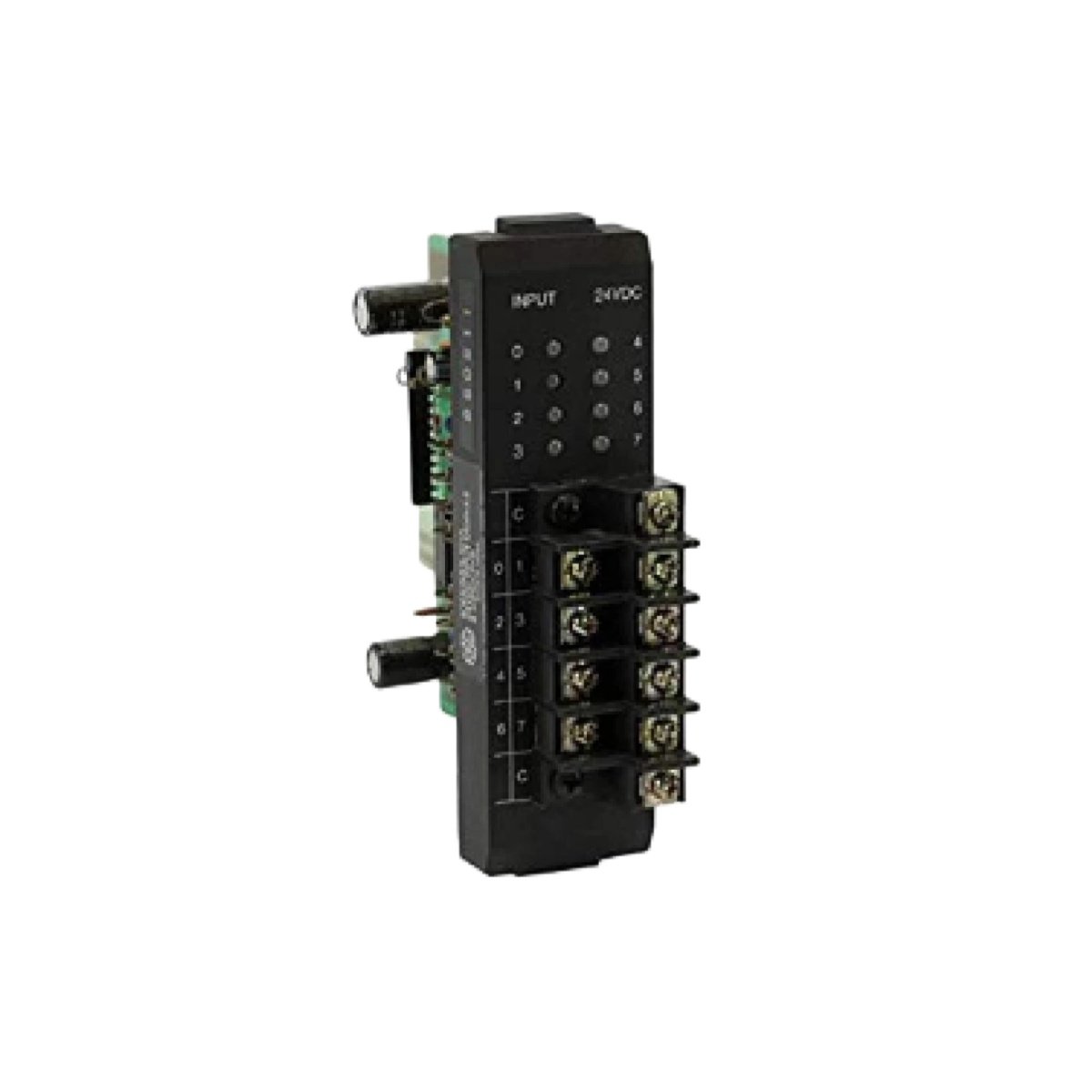

The IC610MDL101A functions as a 24 VDC input module within GE Series One programmable logic controllers. This unit reads signals from switches, sensors, and pushbuttons on industrial machines. Consequently, control engineers gain a dependable front end for binary process data.

Technical Specifications Overview

The IC610MDL101A pairs a compact slot width with rugged industrial construction. Moreover, its parameter set helps engineers plan channel counts and field wiring accurately.

Interface and Signal Connection Details

The IC610MDL101A connects field wiring through screw terminals on the front panel. Therefore, technicians achieve secure contact with standard industrial cables. Each input channel accepts 24 VDC signals with stable threshold behavior. In addition, the module draws logic power directly from the rack backplane.

Physical Characteristics and Installation

This module measures roughly 150 mm wide and 100 mm high. Furthermore, its 40 mm depth suits compact cabinet layouts. The IC610MDL101A weighs about 0.3 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the connector, then secure the unit with retaining screws.

Operational Role and Maintenance

Engineers apply the IC610MDL101A for limit switch sensing and interlock monitoring tasks. Meanwhile, front-panel LEDs show live channel status during troubleshooting. The module holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the backplane for logic power.
