Expandable Central Processor for Series One Plus Automation Systems

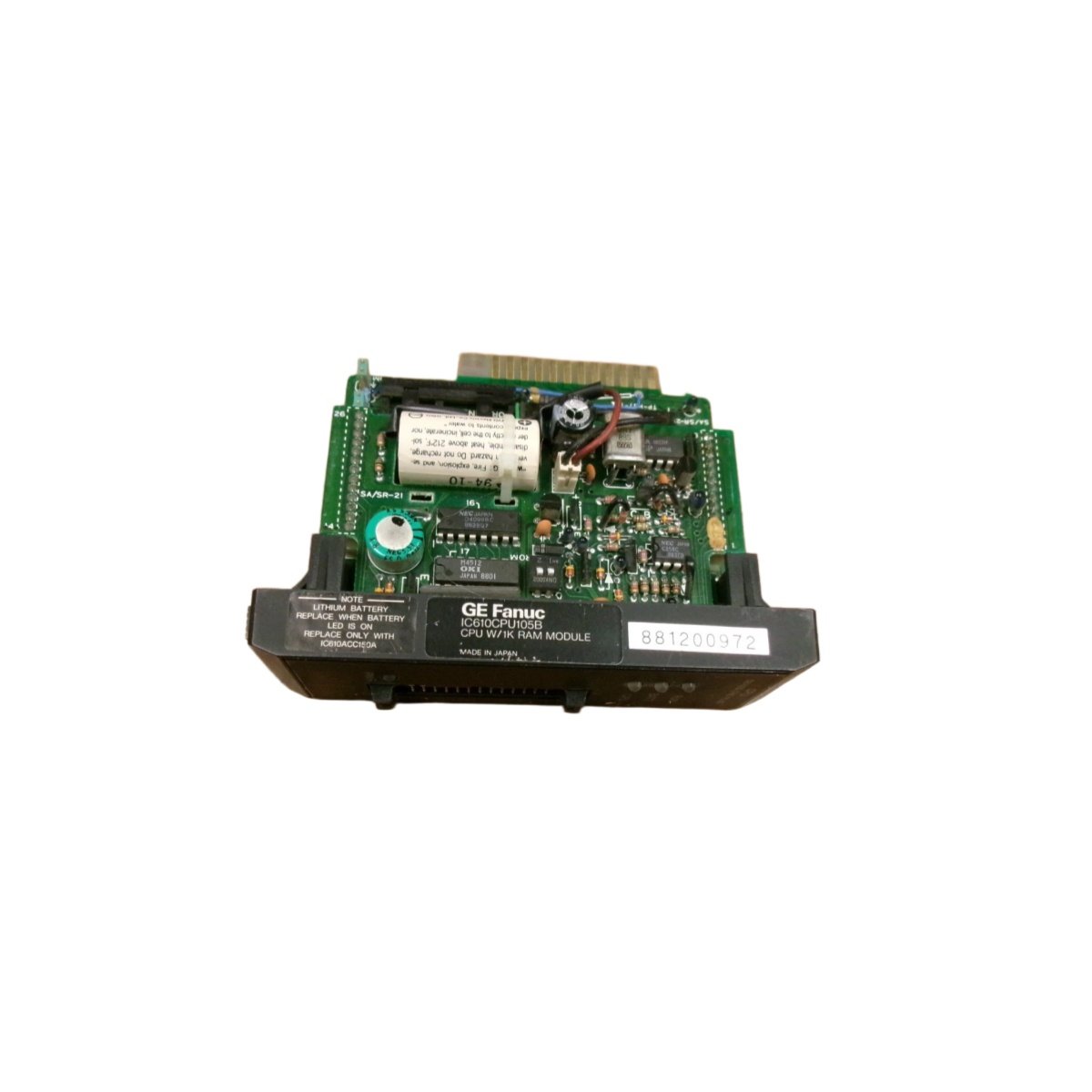

The IC610CPU105B serves as the central processing unit for GE Fanuc’s Series One Plus programmable logic controller platform. Engineers deploy this expandable CPU module to handle machine sequencing, process control, and material handling tasks. Consequently, the module delivers dependable logic execution for small-scale industrial automation applications.

Technical Specifications

Memory and Processing Architecture

The IC610CPU105B integrates 1K words of RAM for efficient program execution. Primary memory capacity reaches 700 words, expandable to 1.7K words for larger control applications. Therefore, engineers can scale the CPU to match growing automation requirements without replacing hardware.

Programming and Instruction Set

The Series One Plus platform supports an enhanced instruction set with faster scan cycles compared to the base Series One Junior. Function codes such as F50, F60, and F70 enable advanced operations like high-speed counter status monitoring. Additionally, the CPU accommodates up to two expansion racks through the IC610 remote I/O system.

Data Protection and Reliability

An integrated lithium battery preserves user programs and data tables during power interruptions. The module operates reliably across a temperature range of 0°C to +60°C and humidity levels up to 95%. Furthermore, the robust construction suits standard industrial manufacturing environments.

Installation Guidelines

Engineers must power down the PLC system before inserting or removing the CPU module from the backplane. Proper seating in the designated Series One backplane slot ensures reliable electrical contact. Additionally, periodic inspection of the lithium battery backup status maintains data integrity during power loss events.
