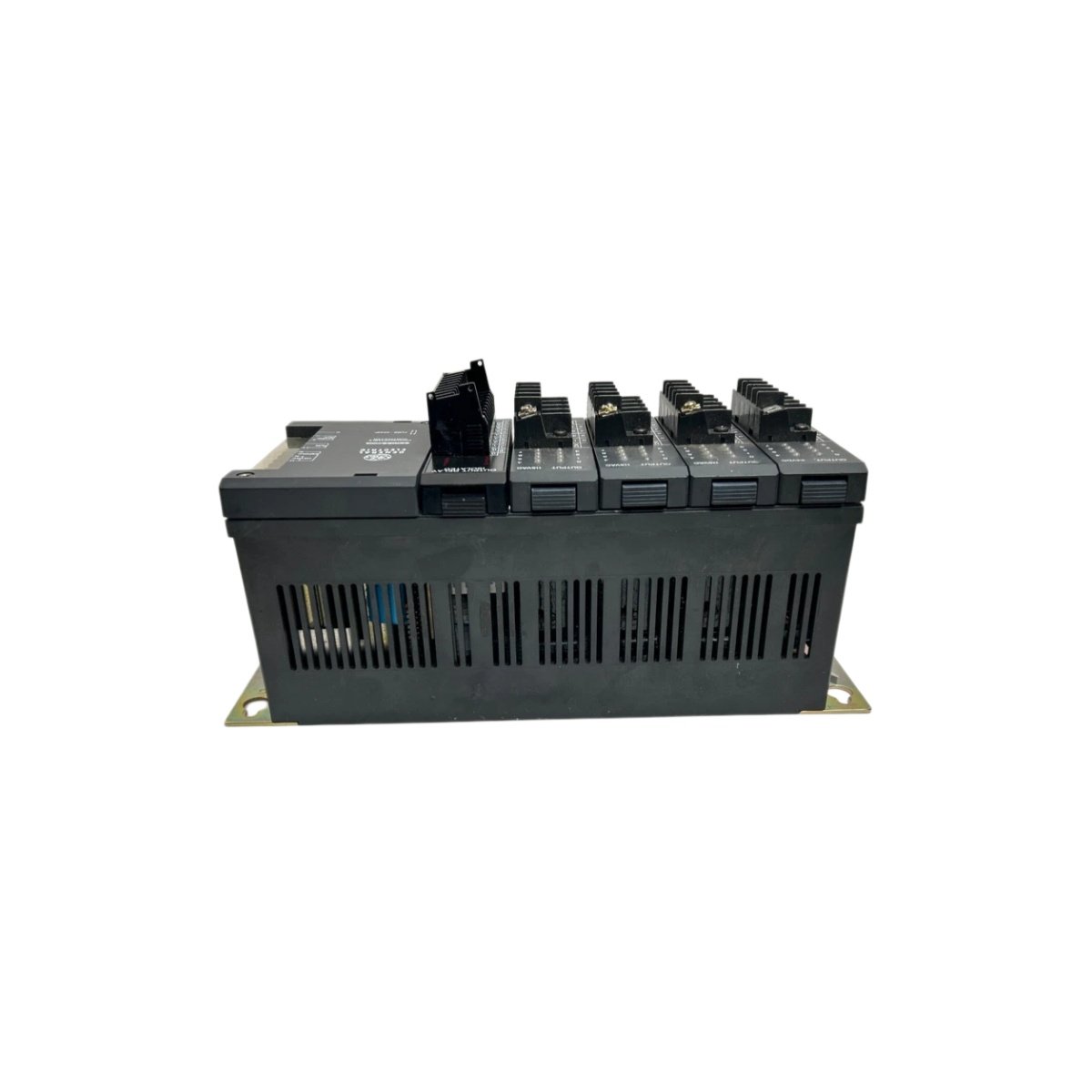

The GE IC610CHS110A five-slot rack provides a compact mounting platform within GE Series One PLC platforms. Engineers choose this chassis to hold the power supply, CPU, and I/O modules in one organized frame. Consequently, it serves manufacturing lines, packaging equipment, and utility control rooms.

Technical Specifications and Hardware Details

This rack offers five slots and accepts a range of Series One plug-in modules. It measures roughly 250 mm wide, 130 mm high, and 120 mm deep, while it weighs about 1.2 kg. Moreover, the chassis supports panel mounting through pre-drilled flanges.

Functional Capabilities and System Integration

The backplane routes power while it carries data between the CPU and each I/O module. Meanwhile, the rigid frame holds modules firmly against vibration and mechanical stress. Keyed slots guide installation, therefore technicians avoid incorrect module placement.

Additionally, the design allows expansion through additional racks and cables. As a result, installers scale systems without replacing the original chassis. Clear slot numbering helps operators identify module positions during troubleshooting. The open architecture also supports natural convection cooling.

Installation and Maintenance Guidelines

Technicians should secure the rack to a flat panel before they insert modules. Afterward, verifying backplane connections confirms reliable communication across the system. Periodic inspection of mounting screws prevents loosening from machine vibration. Finally, consult GE documentation for slot assignments and compatible module configurations.
