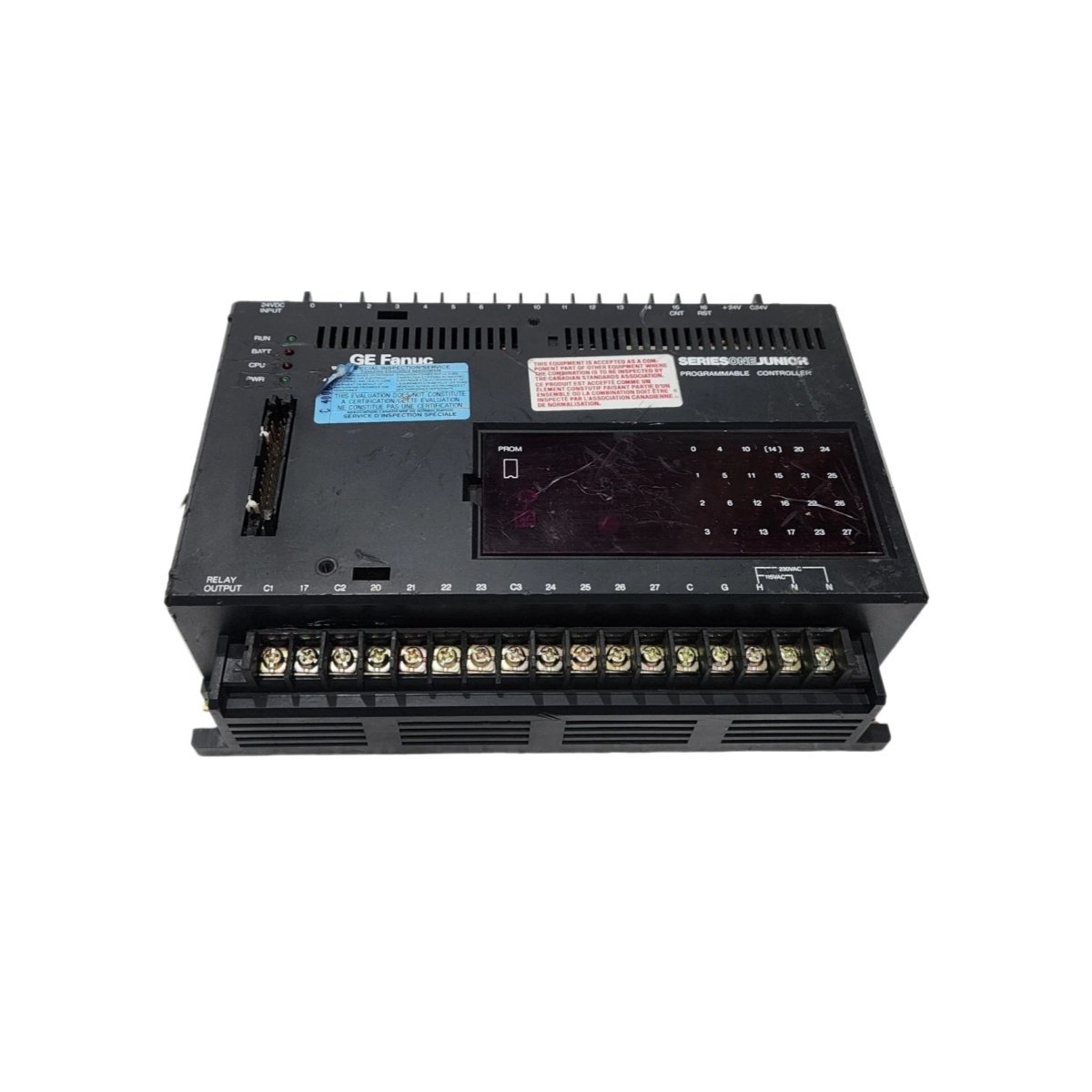

The IC609SJR120C operates as a Series One Junior basic unit within GE programmable controller systems. This compact base handles logic execution, input scanning, and output switching for small machines. Consequently, integrators gain an affordable control core for simple automation tasks.

Technical Specifications Overview

The IC609SJR120C combines a compact housing with rugged industrial construction. Moreover, its parameter set helps engineers plan I/O counts and panel space accurately.

Interface and Connection Details

The IC609SJR120C connects field wiring through integral screw terminals. Therefore, technicians achieve secure contact with standard industrial cables. The programming port supports handheld terminal connections during setup. In addition, the unit accepts a 120 V AC supply directly from the cabinet mains.

Physical Characteristics and Installation

This base unit measures roughly 200 mm wide and 100 mm high. Furthermore, its 80 mm depth suits compact panel enclosures. The IC609SJR120C weighs about 0.8 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the mounting tabs, then secure the housing with retaining screws.

Operational Role and Maintenance

Engineers apply the IC609SJR120C for conveyor control, pump sequencing, and lighting logic tasks. Meanwhile, front-panel indicators show live I/O status during troubleshooting. The unit holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the cabinet mains for power.
