Discrete Control Solution for Series One Systems

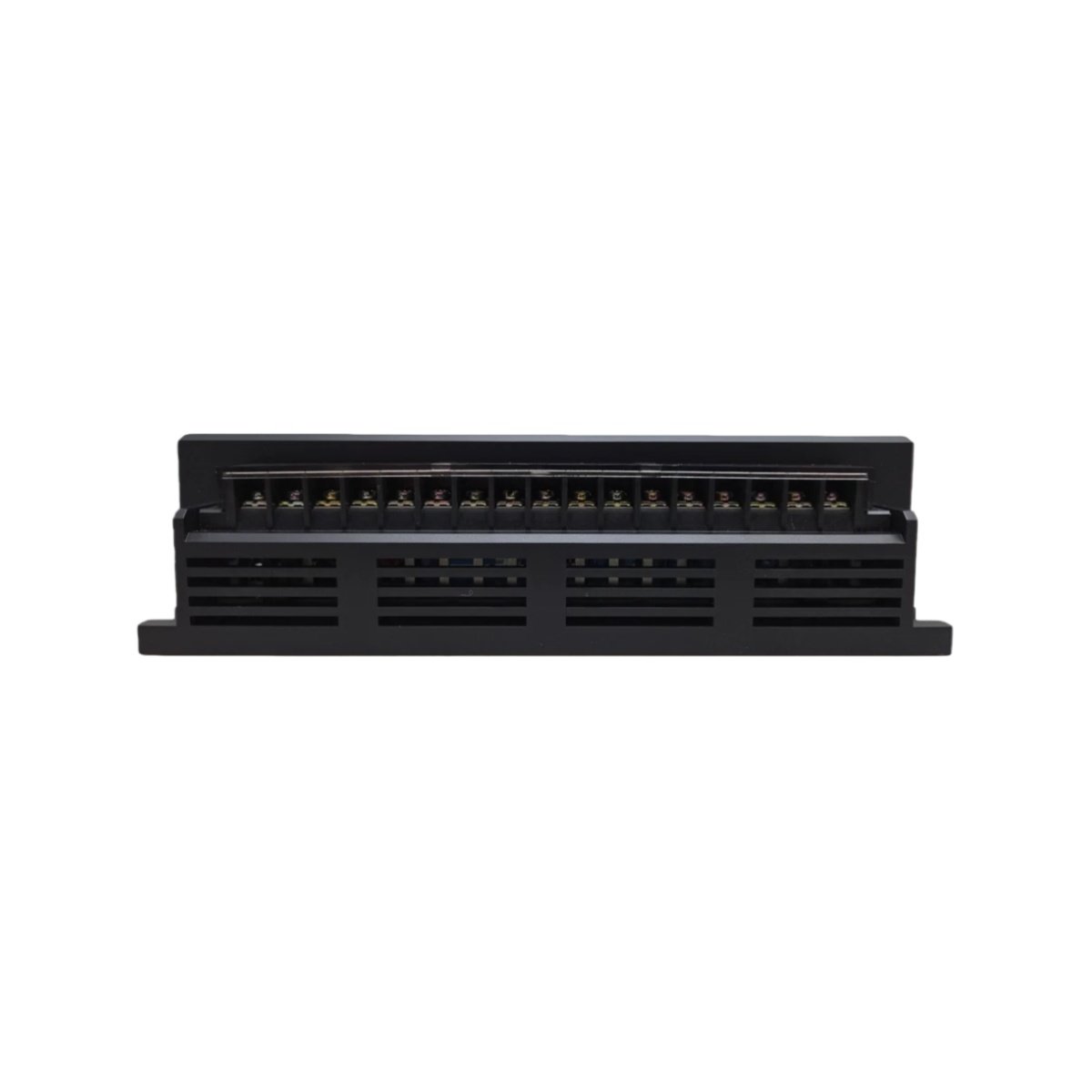

The GE IC609SJR100 functions as a dedicated output controller within the Series One programmable logic controller family. This unit provides 24 discrete output points, each delivering 24 V DC at 1.0 A for driving actuators and pilot devices. Its rugged enclosure measures 220 mm in height, 90 mm in width, and 160 mm in depth, accommodating standard industrial mounting panels. The total weight reaches approximately 1.5 kg, ensuring reliable performance in high-vibration manufacturing settings.

Each output channel includes individual fuse protection and visual status indication for straightforward diagnostics. The following table summarizes the complete technical specifications for this output controller:

Channel Configuration and Load Management

The 24 output channels offer substantial current capacity for directly operating solenoids, contactors, and motor starters. Each channel handles continuous loads up to 1.0 A, with a total module capacity of 24 A. Individual fuses protect each output from overload conditions, preventing fault propagation to adjacent circuits. This design ensures that a single shorted output will not disable the entire module.

Diagnostic Features and Status Indication

LED indicators provide immediate visual confirmation of each output’s energized or de-energized state. Maintenance personnel can therefore verify proper operation without requiring external test meters. The module also supports output forcing during commissioning, enabling engineers to test field wiring before program execution. This capability significantly reduces system startup time and troubleshooting effort.

Power Architecture and Environmental Durability

The IC609SJR100 draws 5 V DC logic power from the Series One backplane and 24 V DC field power from a dedicated supply. This dual-supply approach prevents field transients from affecting the controller’s processing core. Operating temperatures from 0°C to +55°C accommodate a wide range of factory environments. The storage temperature range from -40°C to +85°C protects the module during extreme shipping conditions. A 2500 V AC isolation barrier provides robust protection against surges and ground loops.
