Overview

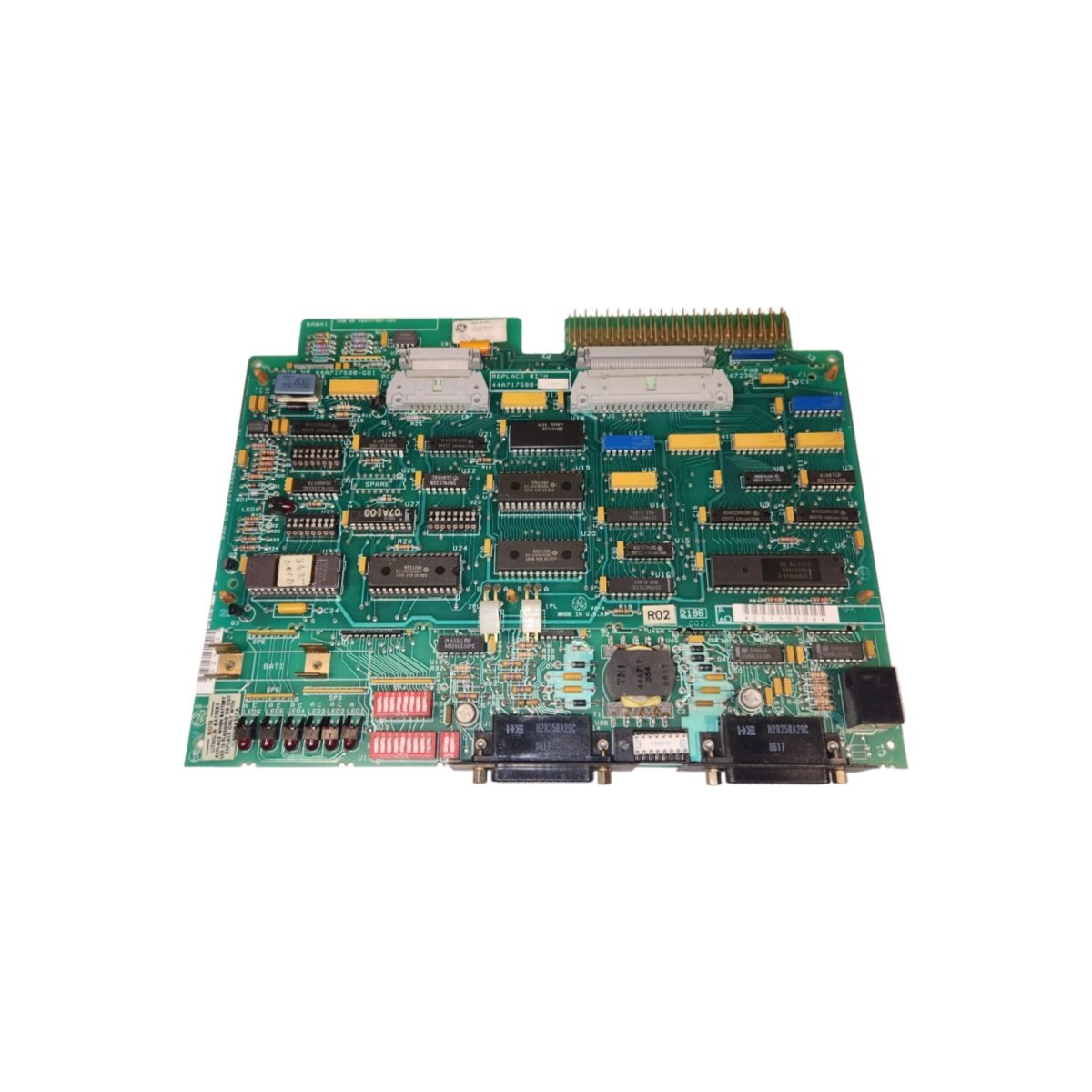

The IC600YB945 belongs to the GE Fanuc Series Six family, a line of legacy PLC communication modules. Engineers deploy this module to link Series Six CPUs with remote I/O racks and host computers. Consequently, it enables data exchange across distributed control networks in older installations.
Key Technical Specifications
The IC600YB945 handles serial communication between Series Six processors and external devices. Moreover, it supports multiple protocol options for flexible network integration. The table below lists the core parameters.
| Parameter | Specification |
|---|---|
| Product Type | Communication module |
| Series | GE Fanuc Series Six |
| Function | Serial data communication |
| Ports | 2 serial ports |
| Interface Type | RS-232 and RS-422 |
| Data Rate | Up to 19.2 kbaud |
| Protocol Support | SNP, ASCII, remote I/O |
| Isolation | 500 VAC port to logic |
| Backplane Current | 900 mA at 5 VDC |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95%, non-condensing |
| Dimensions | 150 mm × 45 mm × 130 mm |
| Weight | Approximately 0.35 kg (0.77 lb) |
| Mounting | Series Six rack slot |
| Compliance | CE, UL, CSA |
Installation and Interface Details
The module slides into any Series Six rack slot with minimal effort. Cables then connect through the front-panel RS-232 and RS-422 ports. Furthermore, the module draws 900 mA from the 5 VDC backplane. As a result, technicians link CPUs, programmers, and remote racks without extra interface hardware.
Communication Performance and Protocols
The module supports SNP, ASCII, and remote I/O protocols for versatile connectivity. Meanwhile, data rates reach 19.2 kbaud across both ports. Additionally, the 500 VAC isolation protects the backplane from ground loops. Therefore, the module handles program downloads, peer-to-peer links, and supervisory data exchange reliably.
Environmental and Mechanical Ratings
The enclosure operates from 0 °C to +60 °C in typical plant conditions. Moreover, the sealed housing tolerates 5–95% relative humidity without condensation. The compact footprint of 150 mm × 45 mm × 130 mm fits crowded racks. Consequently, the module suits legacy Series Six installations in steel mills, refineries, and power plants.
Why Engineers Choose This Module
This module offers several practical advantages. First, it provides dual serial ports in one slot. Second, it supports multiple protocols through simple configuration. Third, its isolation protects the backplane from ground loops. Therefore, maintenance teams extend the life of existing Series Six systems.
