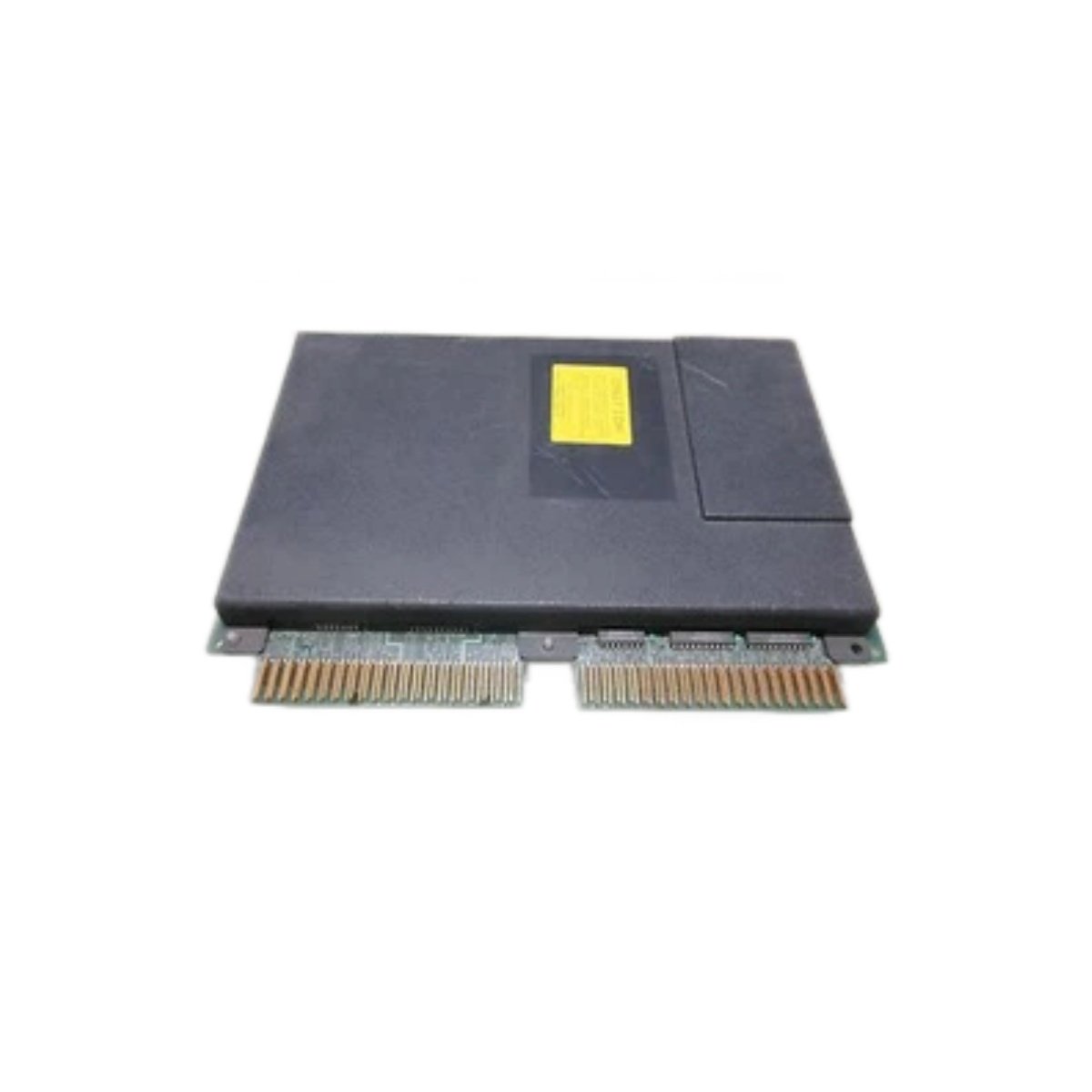

The IC600LR648 functions as a combined memory board for GE Fanuc Series Six programmable logic controllers. This module provides essential program storage and short-term data memory for industrial automation applications. Consequently, engineers deploy this unit to expand memory capacity in legacy Series Six control systems.
Memory Architecture and Capacity
This module delivers a primary memory capacity of 32K dedicated to program storage and execution. Additionally, it provides 16K of short-term memory for runtime data operations. The combined architecture supports complex control logic without requiring multiple separate memory boards.
| Parameter | Specification |
|---|---|
| Model | IC600LR648 |
| Product Type | Combined Memory Module |
| Product Line | Series Six |
| Primary Memory | 32K |
| Short-Term Memory | 16K |
| Weight | 2.72 kg (6.00 lbs) |
| Construction | Solid-State |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | 0°C to 70°C |
| Humidity Range | 5% to 95%, Non-Condensing |
Physical Design and Installation
The IC600LR648 features a solid-state construction that promotes durability in demanding industrial environments. Its modular design enables straightforward installation into Series Six backplanes using factory-provided insertion and extraction tools. However, technicians must observe proper electrostatic discharge precautions during handling because the board remains an open device.
Compatibility and Applications
This memory module supports GE Fanuc Series Six PLC platforms specifically. System integrators use this board to store program data and execute critical control tasks in manufacturing and process applications. The solid-state design ensures reliable data retention across varying operational conditions.
Details
| Weight | 2.5 kg |
|---|---|
| Dimensions | 306 × 230 × 76 mm |
