Product Overview

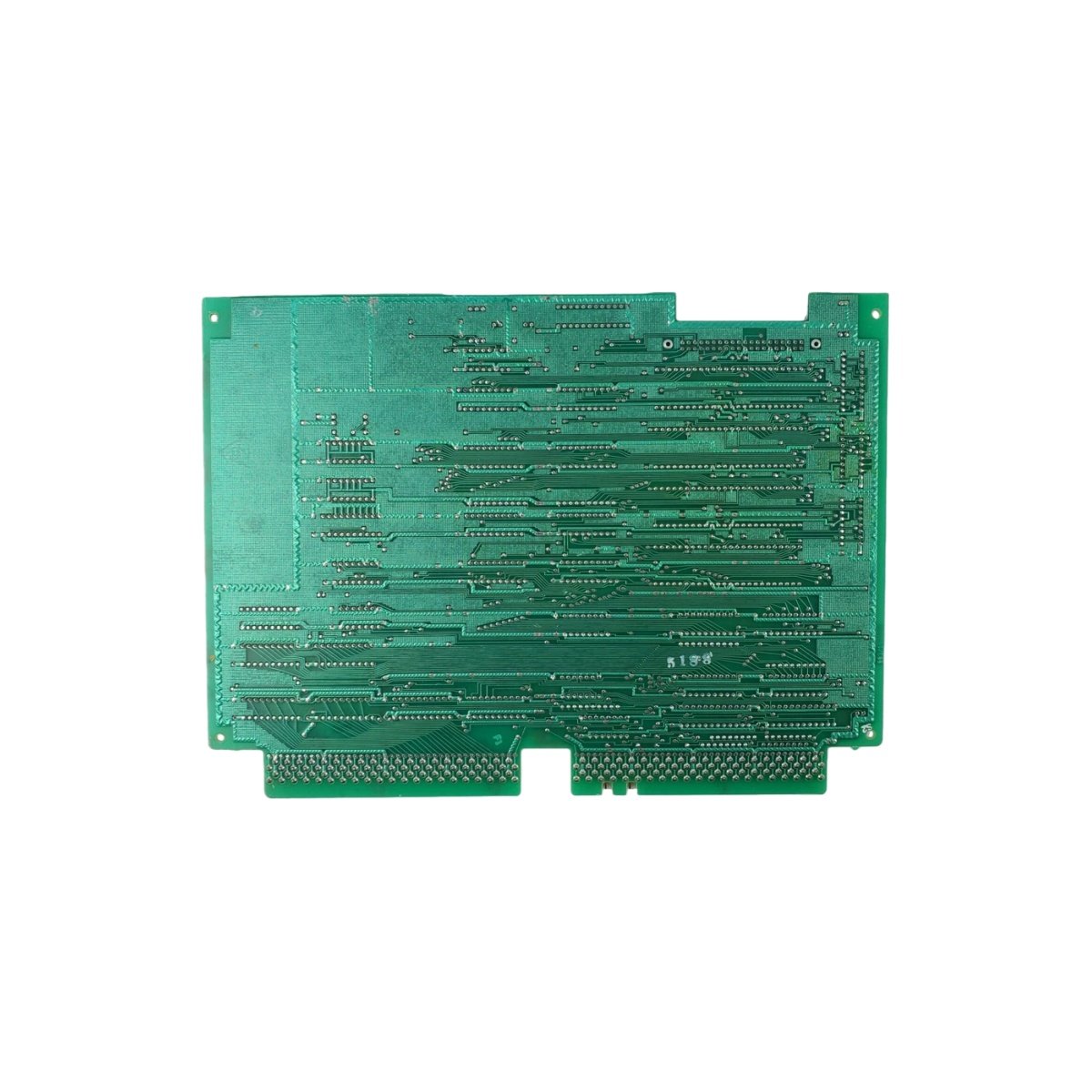

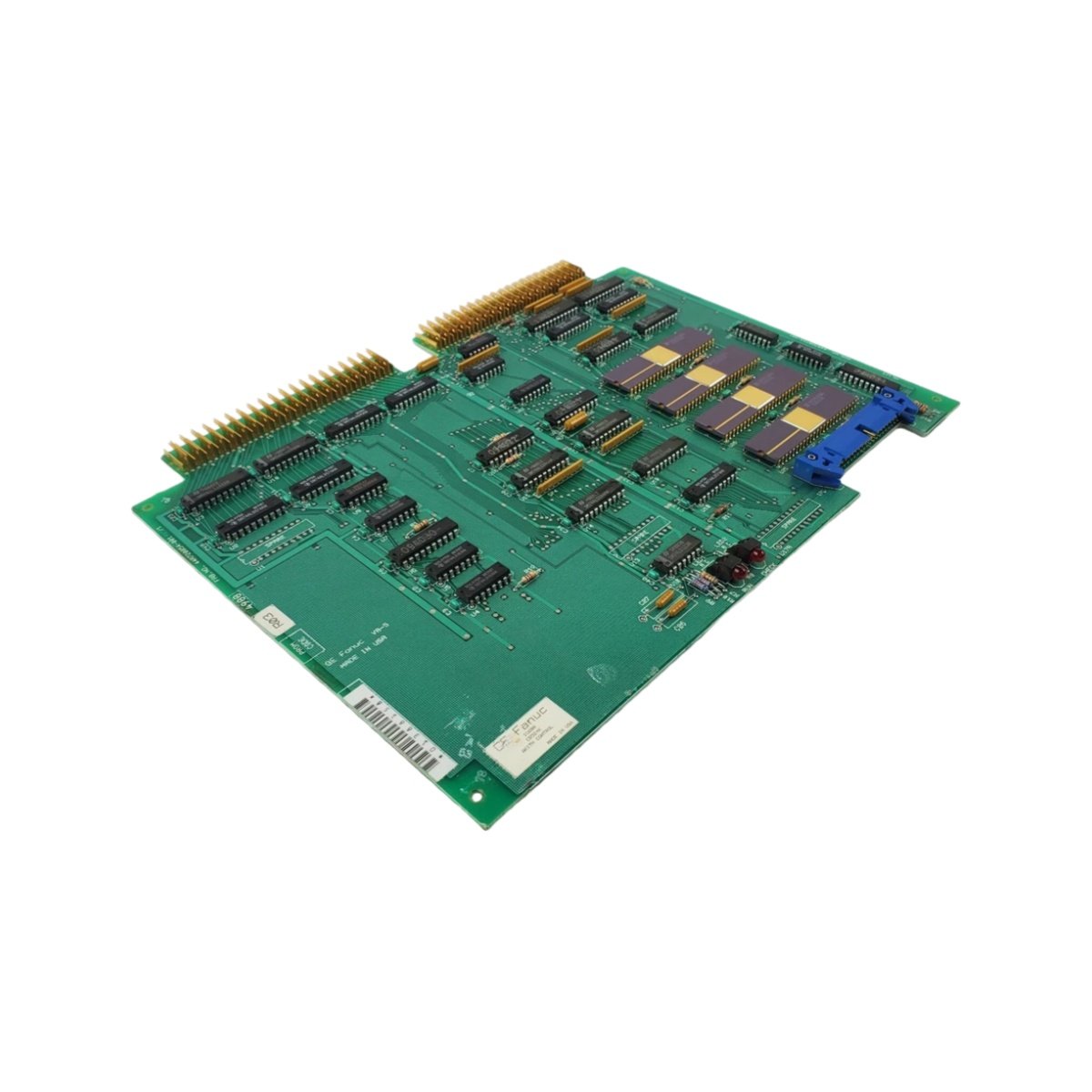

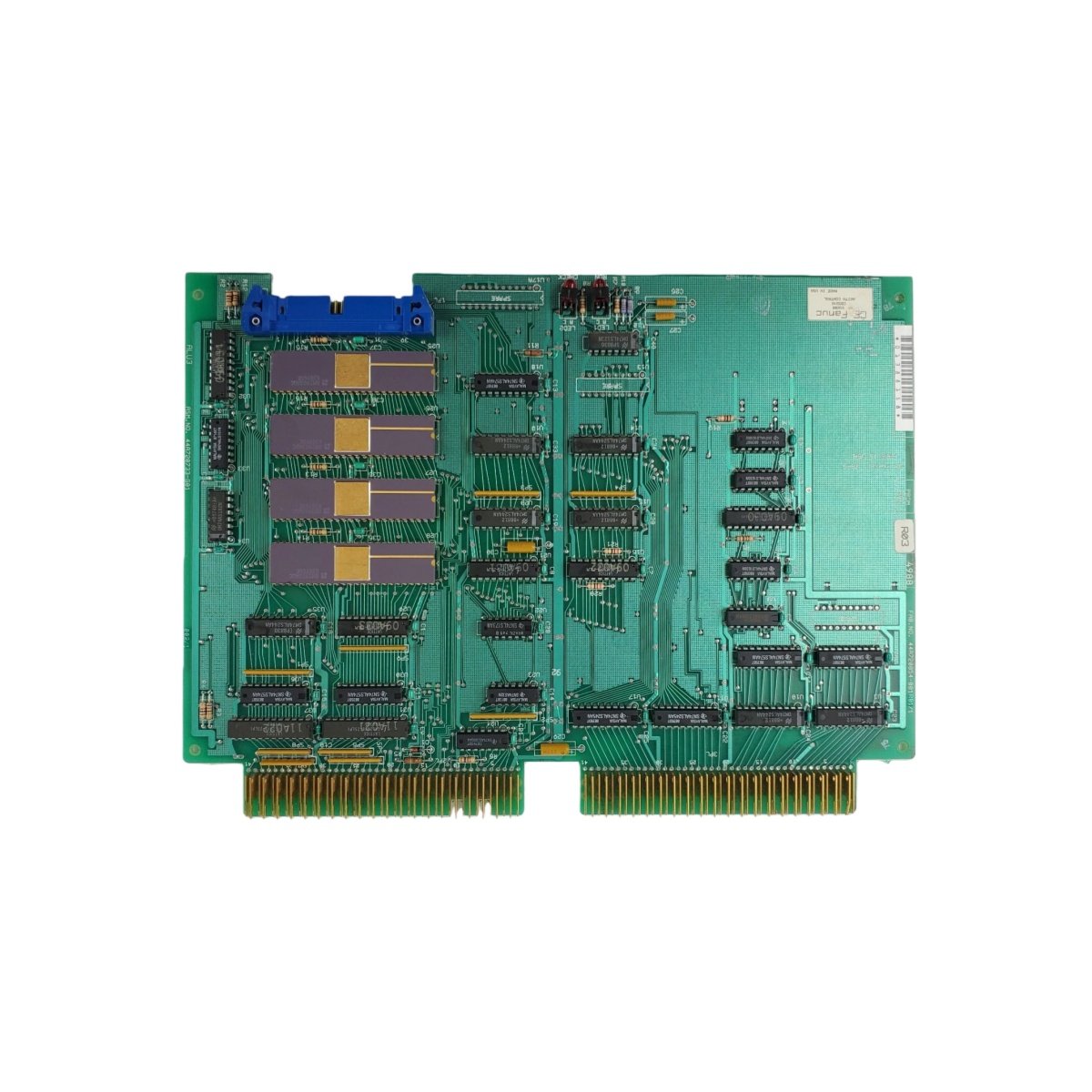

This arithmetic control module delivers precise computational control for industrial automation systems. It performs mathematical operations and logic functions within GE’s Series Six programmable controller architecture. The module supports complex arithmetic tasks including addition, subtraction, multiplication, and division. It also handles comparison operations and data manipulation for process control applications.

Technical Specifications

The IC600CB524 module features a compact design that fits standard Series Six rack systems. It measures approximately 25.4 cm in height and 17.8 cm in depth. The unit weighs around 1.2 kg, making it suitable for dense cabinet installations. It operates on a 5 VDC power supply with typical current draw of 2.5 A. The module includes 4 KB of battery-backed CMOS RAM for program and data storage. This memory retains critical parameters during power interruptions. A lithium battery provides backup power with a typical lifespan of 5 years. The module interfaces with the backplane through a 48-pin edge connector. It supports up to 512 input and output points per scan cycle. The module processes 16-bit data words and executes basic arithmetic instructions within 1.2 milliseconds.

Key Features and Functions

• Arithmetic Operations: Performs addition, subtraction, multiplication, and division on 16-bit integer values.

• Logic Processing: Executes AND, OR, XOR, and complement operations for digital signal control.

• Data Comparison: Compares numeric values and triggers outputs based on greater-than, less-than, or equal conditions.

• Memory Capacity: 4 KB battery-backed RAM ensures reliable data retention during power cycles.

• Scan Performance: Processes arithmetic instructions in 1.2 ms, supporting fast control loops.

Installation and Compatibility

This module installs directly into any Series Six I/O rack slot. It requires no external programming device for basic operation. The IC600CB524 works with CPU models including IC600CP100, IC600CP200, and IC600CP300. It communicates with the central processor via the system backplane. The module’s front panel includes LED indicators for power, run, and fault status. These lights enable quick visual diagnostics during system operation.

Physical and Environmental Parameters

Applications and Use Cases

This module excels in continuous process control, batch processing, and material handling systems. It performs flow calculations, ratio control, and temperature compensation tasks effectively. The IC600CB524 also supports positioning control, speed monitoring, and energy management functions. Its fast arithmetic response suits applications requiring tight regulation and precise setpoint tracking.
