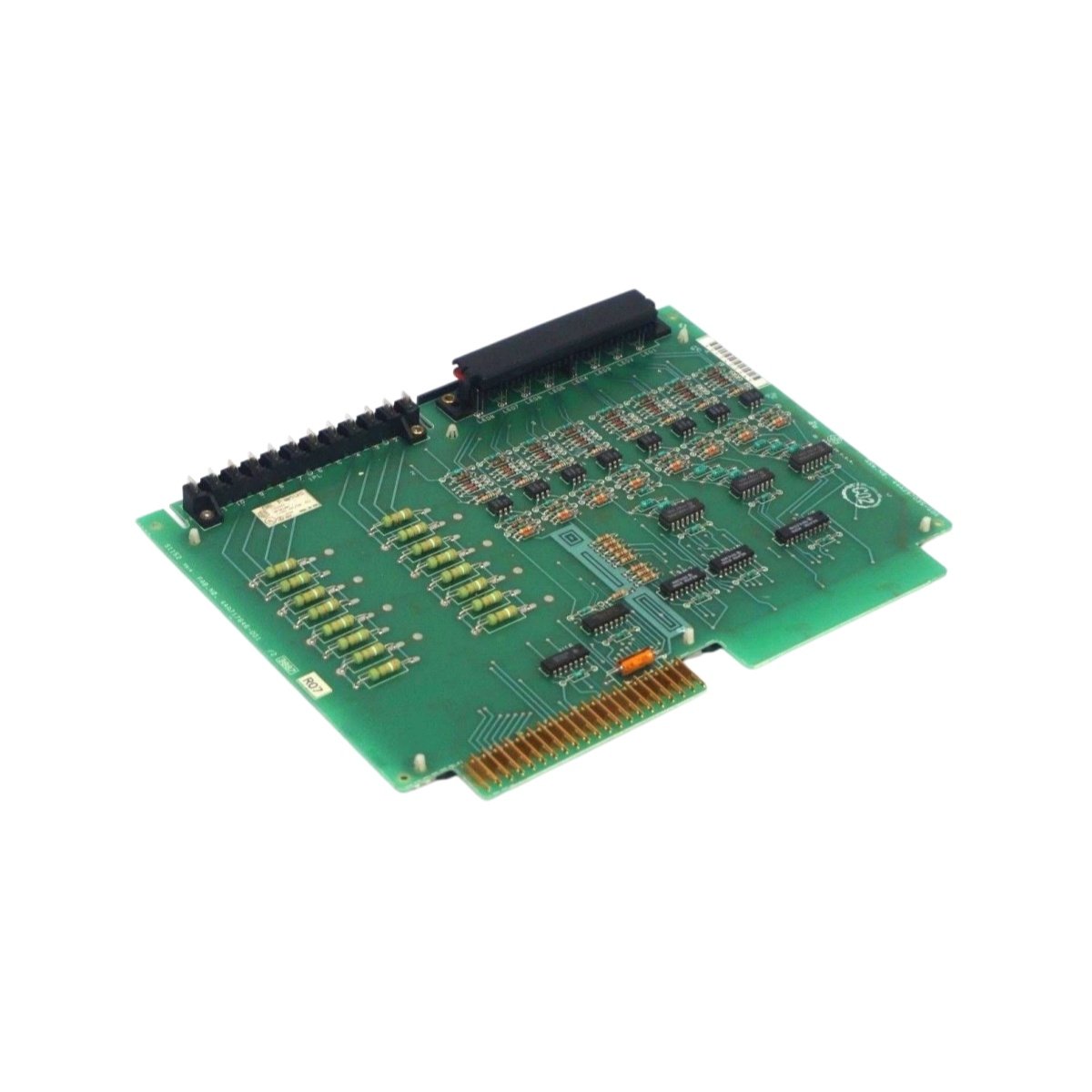

The IC600BF804 operates as an input module within GE Series Six programmable logic controllers. This unit reads signals from switches, sensors, and pushbuttons on industrial machines. Consequently, control engineers gain a dependable front end for binary process data.

Technical Specifications Overview

The IC600BF804 pairs a compact slot width with rugged industrial construction. Moreover, its parameter set helps engineers plan channel counts and field wiring accurately.

Interface and Signal Connection Details

The IC600BF804 connects field wiring through screw terminals on the front panel. Therefore, technicians achieve secure contact with standard industrial cables. Each input channel accepts industrial signal levels with stable threshold behavior. In addition, the module draws logic power directly from the rack backplane.

Physical Characteristics and Installation

This module measures roughly 200 mm wide and 150 mm high. Furthermore, its 40 mm depth suits compact cabinet layouts. The IC600BF804 weighs about 0.5 kg. Consequently, installation requires no lifting tools or special fixtures. Technicians align the connector, then secure the unit with retaining screws.

Operational Role and Maintenance

Engineers apply the IC600BF804 for limit switch sensing and interlock monitoring tasks. Meanwhile, front-panel LEDs show live channel status during troubleshooting. The module holds no battery or capacitor for energy storage. Thus, it avoids periodic cell replacement work. Instead, it relies entirely on the backplane for logic power.
