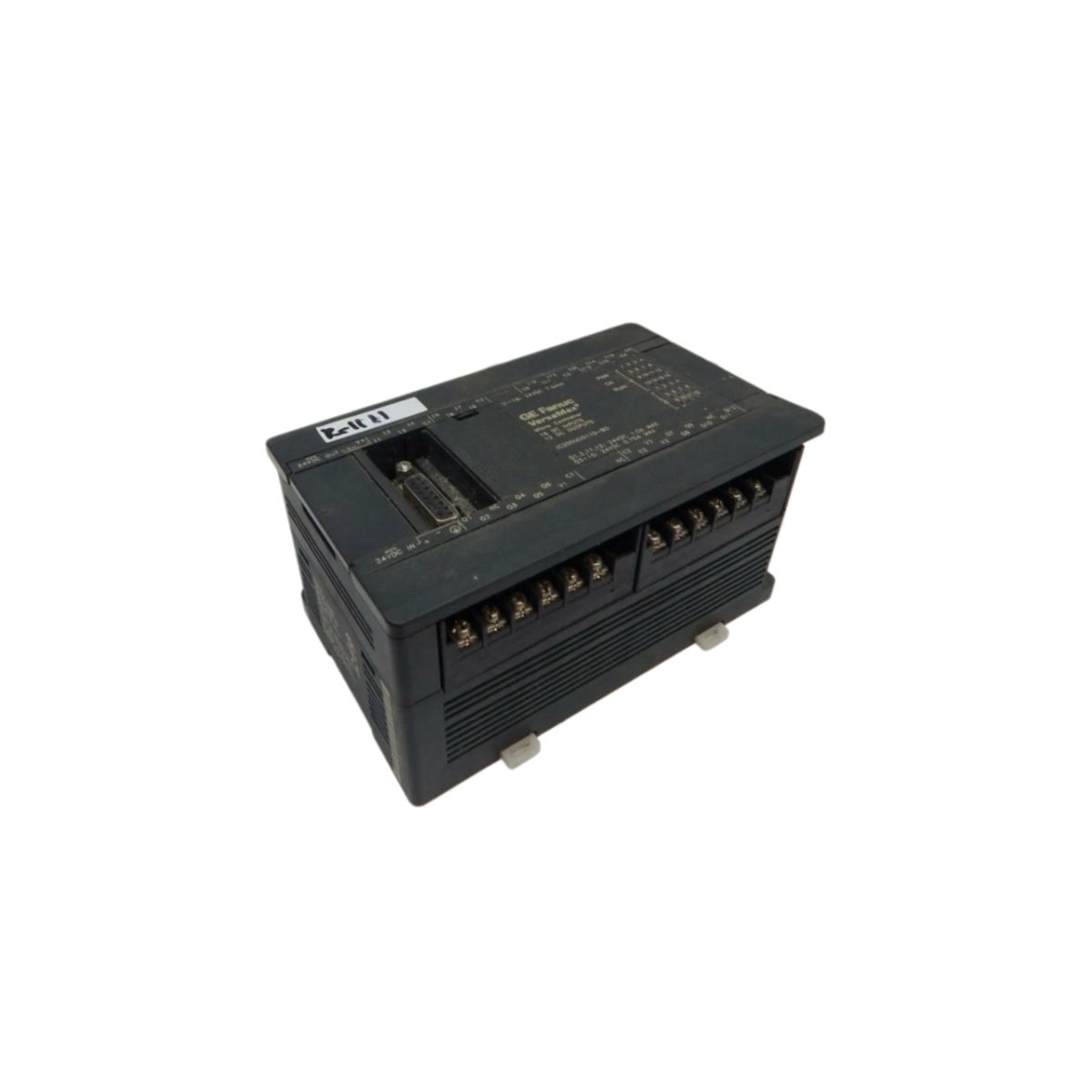

The IC200UDD110-BD micro controller expansion unit adds I/O capacity to GE VersaMax Micro PLC systems. This compact module connects directly to the base controller and extends its signal handling range. Engineers rely on it for small machine control where space and cost matter.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Micro Controller Expansion Unit |
| Compatibility | GE VersaMax Micro PLC Systems |
| Digital Inputs | 8 Discrete Inputs, 24 VDC |
| Digital Outputs | 6 Relay Outputs |
| Output Rating | 2 A Per Relay Point |
| Interface | Expansion Port Connector, Front Terminal Block |
| Dimensions | 90 mm x 70 mm x 80 mm |
| Weight | Approximately 0.26 kg |
| Component Count | 46 Active Electronic Components |
| Energy Storage | None Required |
| Power Consumption | 24 VDC at 0.3 A |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
I/O Capacity and Signal Handling
The unit provides 8 discrete inputs and 6 relay outputs for machine control. Therefore, it expands the base controller without replacing existing hardware. Furthermore, each relay point handles up to 2 A for direct load switching. Consequently, it drives solenoids, lamps, and small contactors without interposing relays.
Interface and Integration
An expansion port connector links the IC200UDD110-BD to the VersaMax Micro base unit. As a result, the controller recognizes added I/O automatically after configuration. Additionally, the front terminal block simplifies field wiring and troubleshooting.
Power and Protection
The unit draws 24 VDC at 0.3 A from the system supply. Moreover, internal isolation protects logic circuits from field voltage transients. Consequently, connected devices operate reliably in industrial environments.
Installation Notes
Operators snap the module onto a DIN rail beside the base controller. The compact housing fits tight panels with minimal clearance requirements. However, users should verify relay load ratings before commissioning the system.
