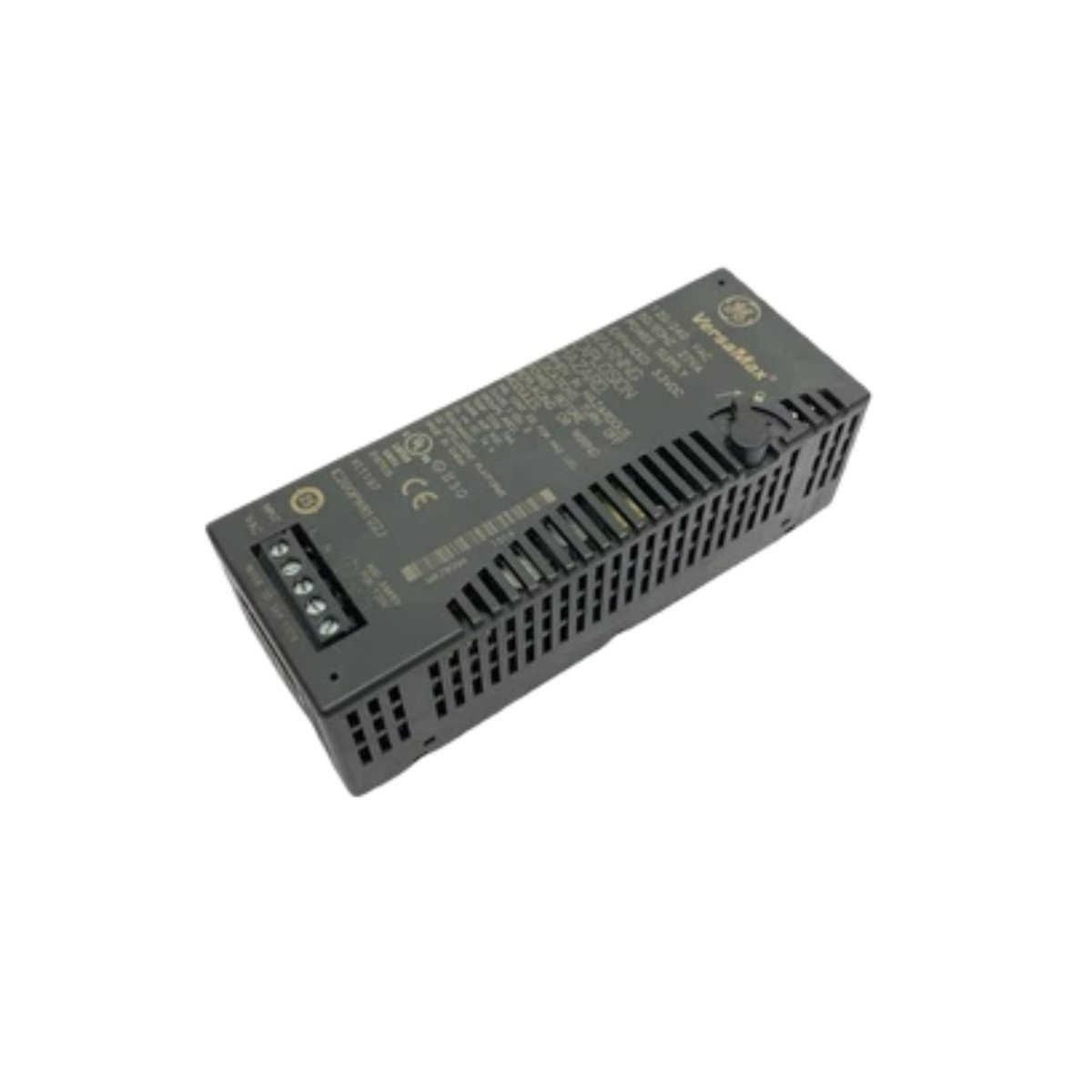

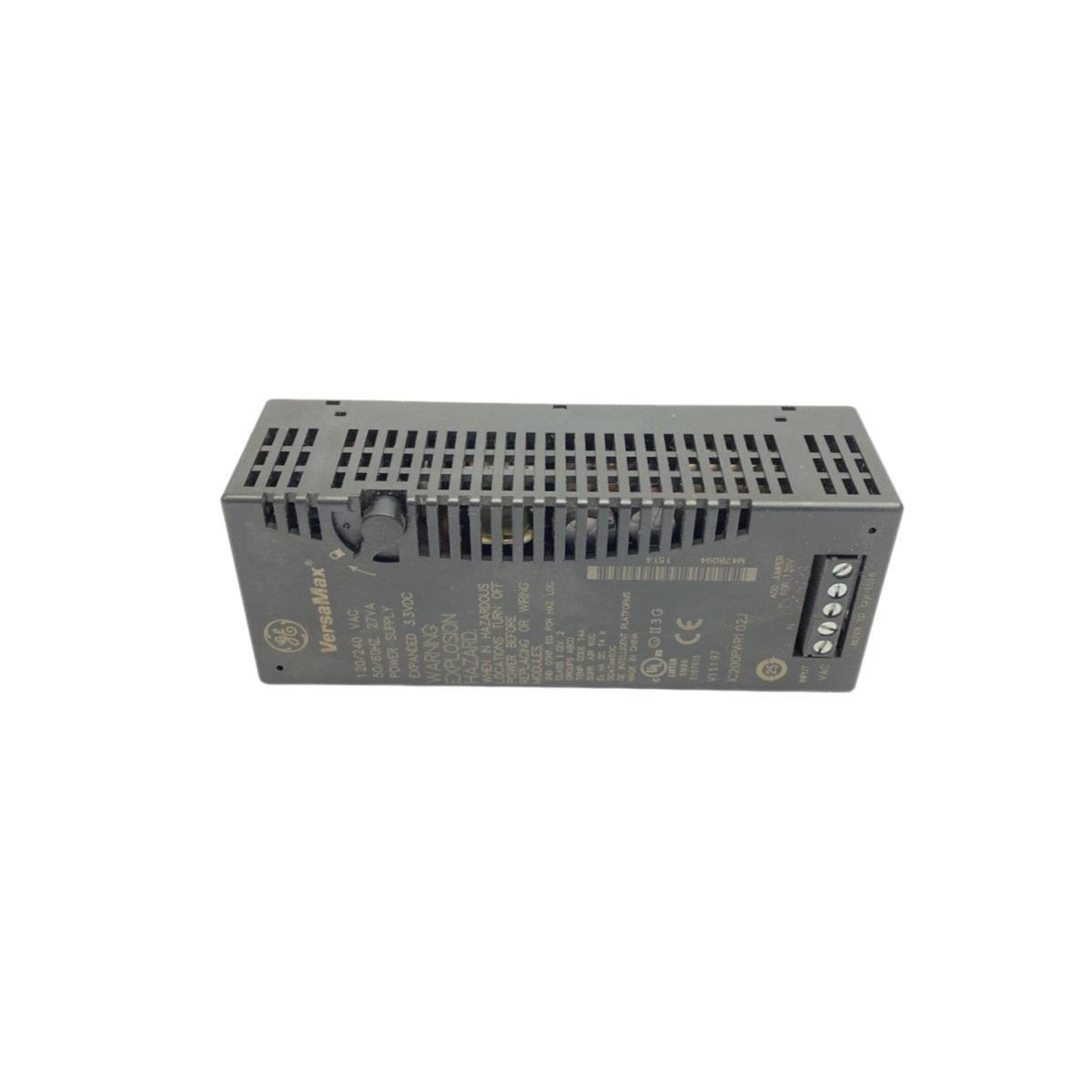

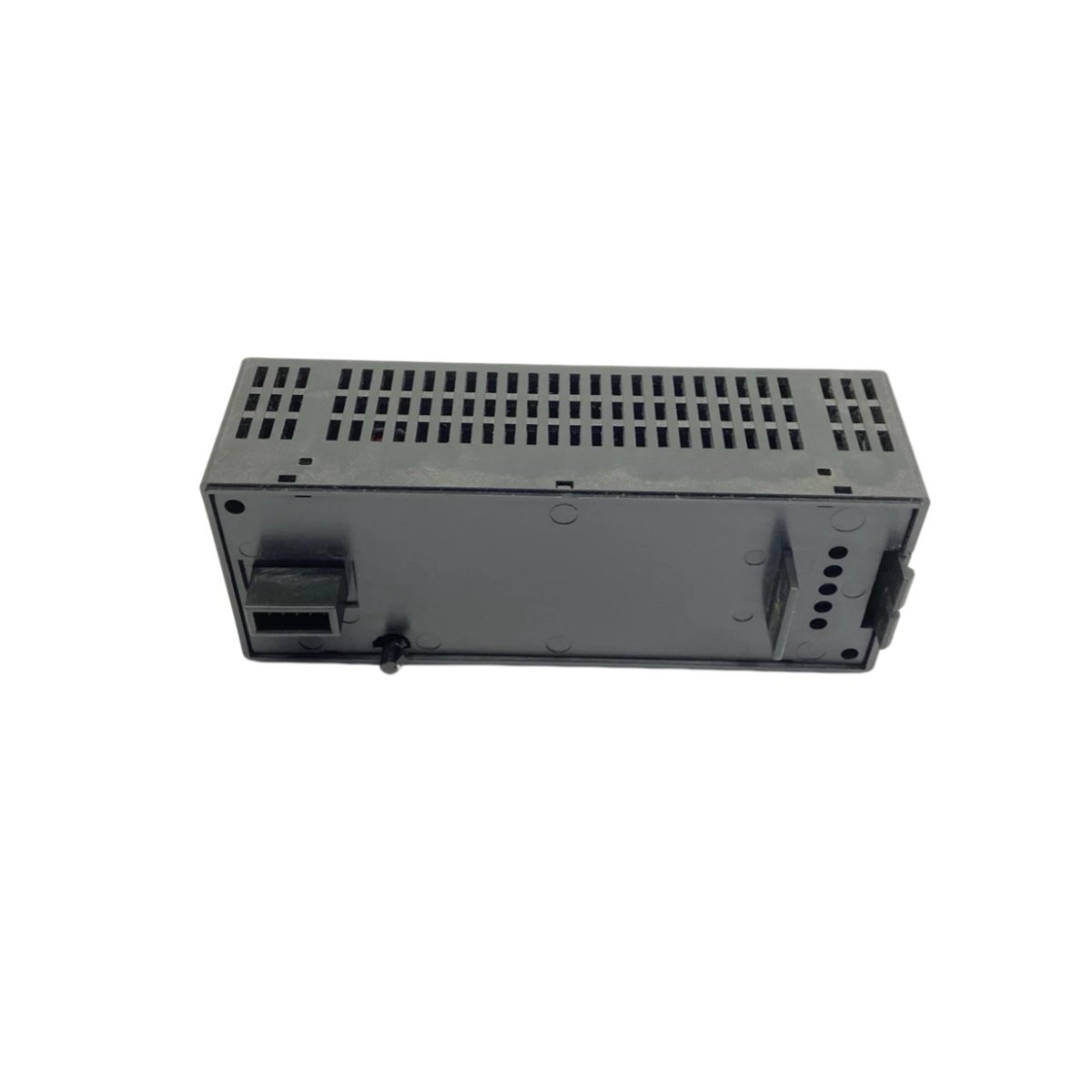

The GE IC200PWR102J power supply module provides stable DC power to VersaMax I/O carriers and modules. This compact unit converts AC line voltage into regulated DC for system operation. Its housing measures 110 mm in height, 45 mm in width, and 75 mm in depth.

Technical Specifications

Input Power and Voltage Range

The GE IC200PWR102J accepts a universal AC input from 85 to 264 V for global compatibility. This wide input range covers standard 120 V and 230 V mains without adjustment. The module operates at frequencies from 47 to 63 Hz for flexible installation worldwide. A built-in fuse protects the unit against input overcurrent events and short circuits.

Output Capabilities and Power Distribution

This power supply delivers 5 V DC at 1.5 A for backplane and I/O module logic circuits. A separate 24 V DC output provides 0.5 A for external sensors and auxiliary devices. The total output power reaches 25 W for supporting multiple modules on a single carrier. Such capacity suits typical VersaMax Compact system configurations with mixed I/O types.

Energy Storage and Output Filtering

An internal 680 µF capacitor bank filters the input supply to reduce AC ripple effectively. This capacitance ensures stable output during brief input voltage dips or load changes. Output ripple stays below 50 mV peak-to-peak for noise-sensitive analog circuits. Clean power delivery ensures reliable operation of measurement and control modules.

Protection Systems and Fault Tolerance

The GE IC200PWR102J includes comprehensive protection for both the supply and connected modules. Overcurrent protection limits each output to prevent thermal damage during overload events. Short-circuit protection automatically disconnects outputs to safeguard the power electronics. Overvoltage clamping prevents output voltage excursions from damaging sensitive I/O circuitry.

Efficiency and Thermal Performance

The module achieves 82% efficiency, reducing wasted power and minimizing heat generation. This efficiency allows operation without forced air cooling in most industrial environments. The aluminum housing conducts heat away from internal components effectively. The unit operates reliably across the full 0°C to 60°C temperature range without derating.

Installation and Mounting

Mount the GE IC200PWR102J on a standard 35 mm DIN rail using the spring-loaded clip mechanism. The rail mounting provides quick installation and removal for maintenance. Position the unit at the left end of the VersaMax carrier for optimal power distribution. The 6-pin screw terminal block accepts wire gauges from 0.5 to 2.5 mm².

Component Layout and Construction

This PCB contains 42 components, including switching transistors, transformers, and filter capacitors. The board uses surface-mount technology for compact component placement. A protective coating on the PCB shields the circuitry from dust and moisture. The housing meets UL 94 V-0 flammability standards for fire safety compliance.
