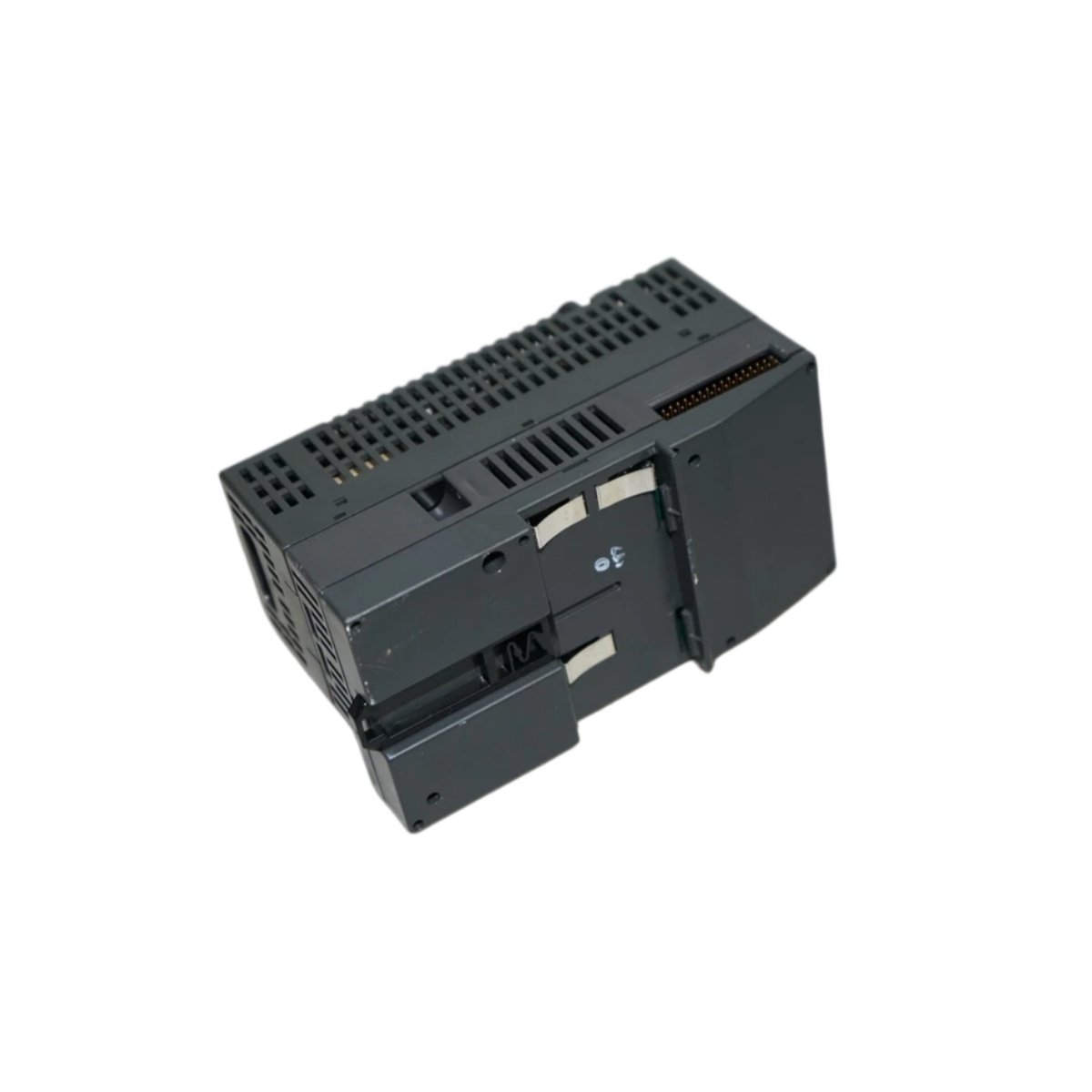

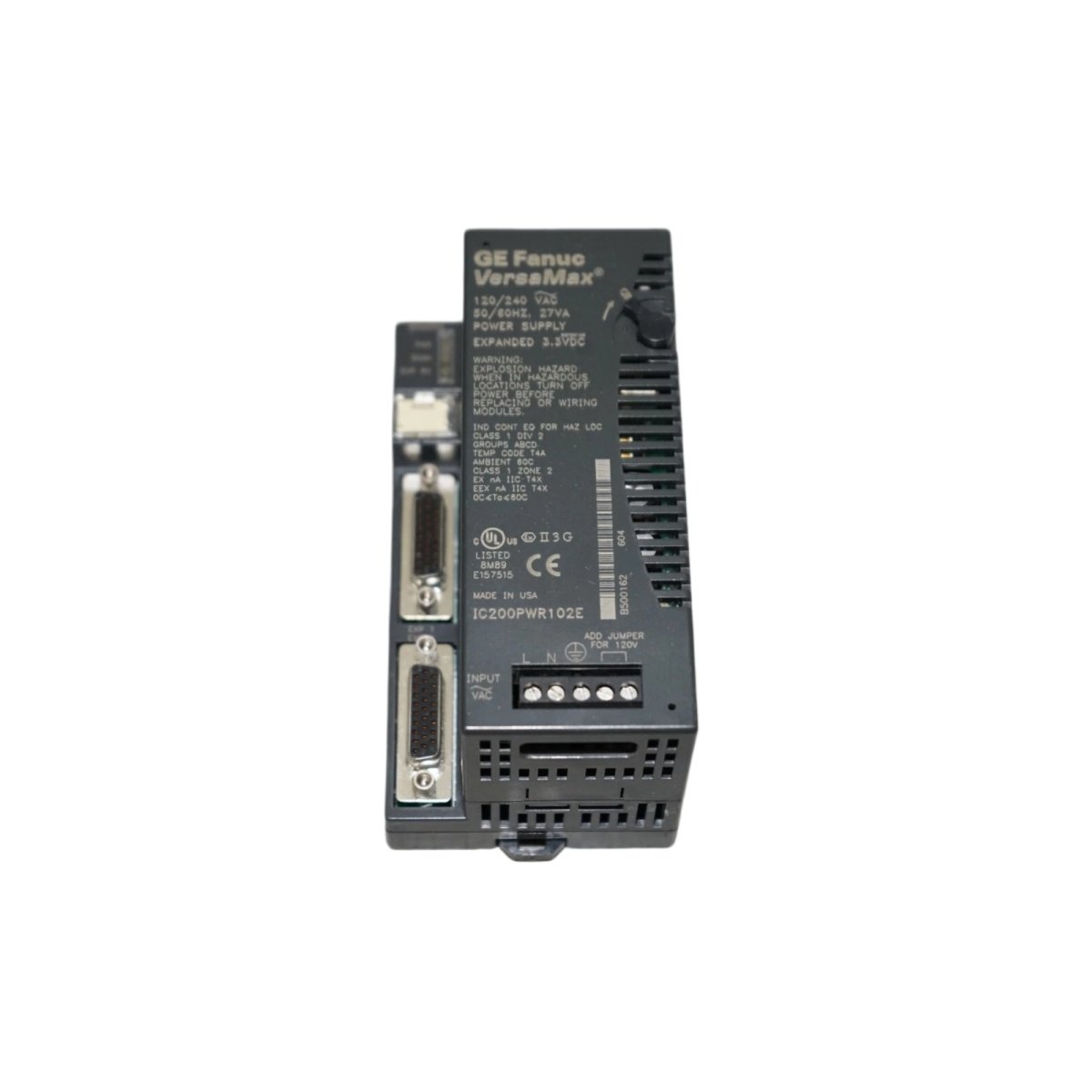

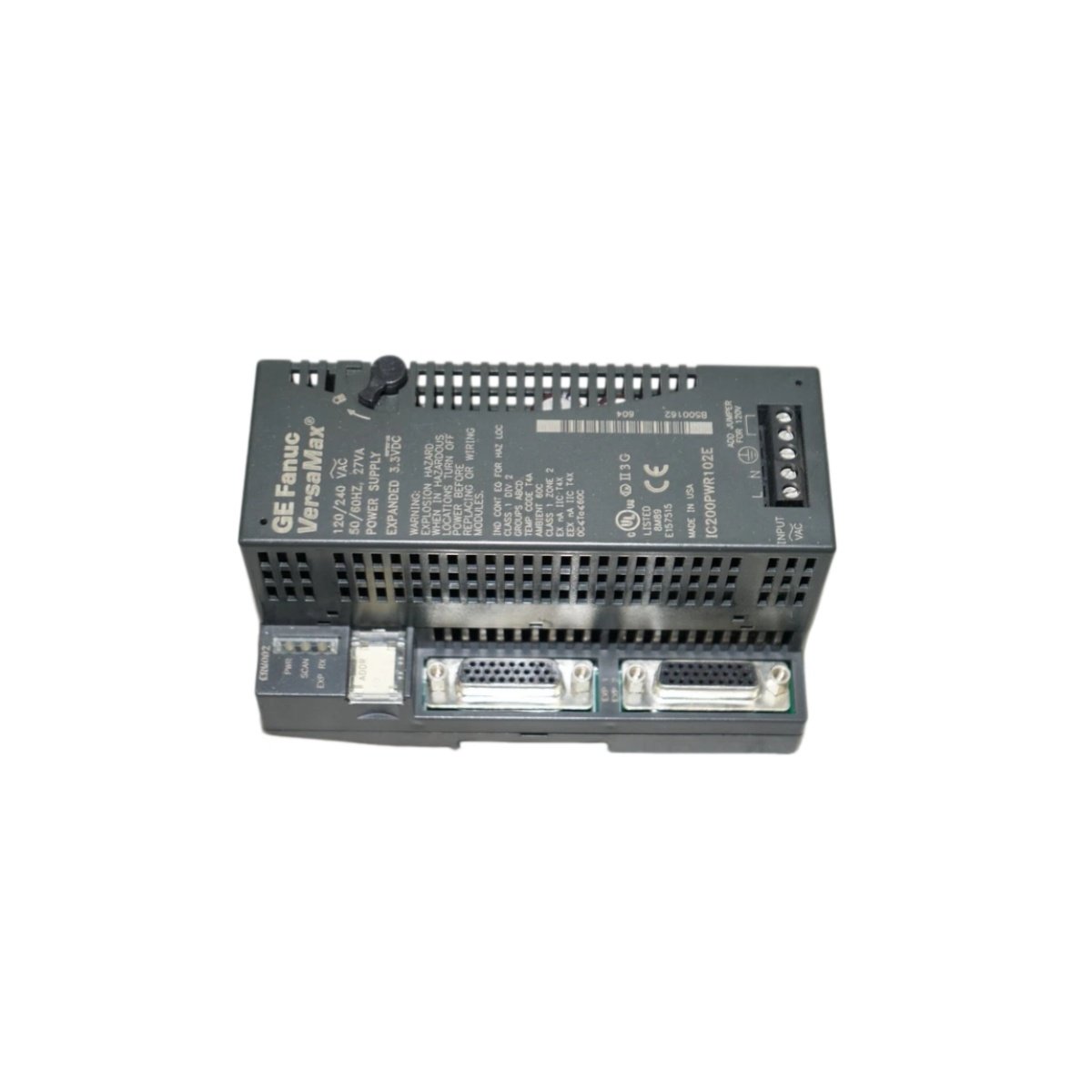

This expanded power supply module delivers reliable DC power to GE VersaMax PLC systems . It powers CPUs, I/O modules, and network interface units through the backplane connection . Engineers choose this module for its dual-range AC input and robust protection features. Its design supports both primary and supplementary power applications in industrial automation .
Input Voltage Configuration and Power Specifications
The GE IC200PWR102E accepts dual-range AC input through a configurable jumper. With the jumper installed, it operates at 85–132 VAC with a nominal 120 VAC rating. Without the jumper, the input ranges from 176–264 VAC with a nominal 240 VAC rating . The module draws 27 VA input power and supports 47–63 Hz frequency . It delivers 3.3 VDC and 5 VDC outputs with a total maximum current of 1.5 A .
Output Current Distribution and Hold-Up Time
The GE IC200PWR102E provides 1.0 A maximum at 3.3 VDC and up to 1.5 A at 5 VDC, minus any 3.3 V load . The hold-up time reaches 20 ms, maintaining output during brief power interruptions . This feature ensures continuous operation during minor grid fluctuations. Consequently, the module supports reliable system performance in demanding industrial environments.
Key Technical Specifications
The table below summarizes the critical parameters for the GE IC200PWR102E.
| Parameter | Specification |
|---|---|
| Model Number | IC200PWR102E |
| Manufacturer | GE Fanuc / Emerson |
| Product Category | Expanded Power Supply Module |
| Series | VersaMax PLC |
| Input Voltage (Jumper In) | 85–132 VAC (120 VAC nominal) |
| Input Voltage (Jumper Out) | 176–264 VAC (240 VAC nominal) |
| Input Power | 27 VA |
| Frequency | 47–63 Hz |
| Hold-Up Time | 20 ms |
| Output Voltage | 3.3 VDC, 5 VDC |
| Total Output Current | 1.5 A maximum |
| 3.3 V Output Current | 1.0 A maximum |
| 5 V Output Current | 1.5 A minus 3.3 V load |
| Efficiency | ≥85% at full load |
| Protection Features | Short-circuit, overload, over-temperature |
| Mounting | DIN rail or VersaMax I/O carrier |
| Hot-Swappable | Supported |
| Dimensions (W x H x D) | 51 x 127 x 51 mm |
| Weight | 0.20 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5%–95% non-condensing |
| Certifications | CE, UL, CSA |
Protection Features and Installation Benefits
The GE IC200PWR102E includes short-circuit and overload protection for connected modules . LED indicators display AC OK and DC OK status for easy diagnostics . Its compact design allows DIN rail mounting or VersaMax I/O carrier installation. The hot-swappable capability enables replacement without system shutdown . Therefore, this module reduces downtime and simplifies maintenance in critical automation systems.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 51 × 127 × 51 mm |
