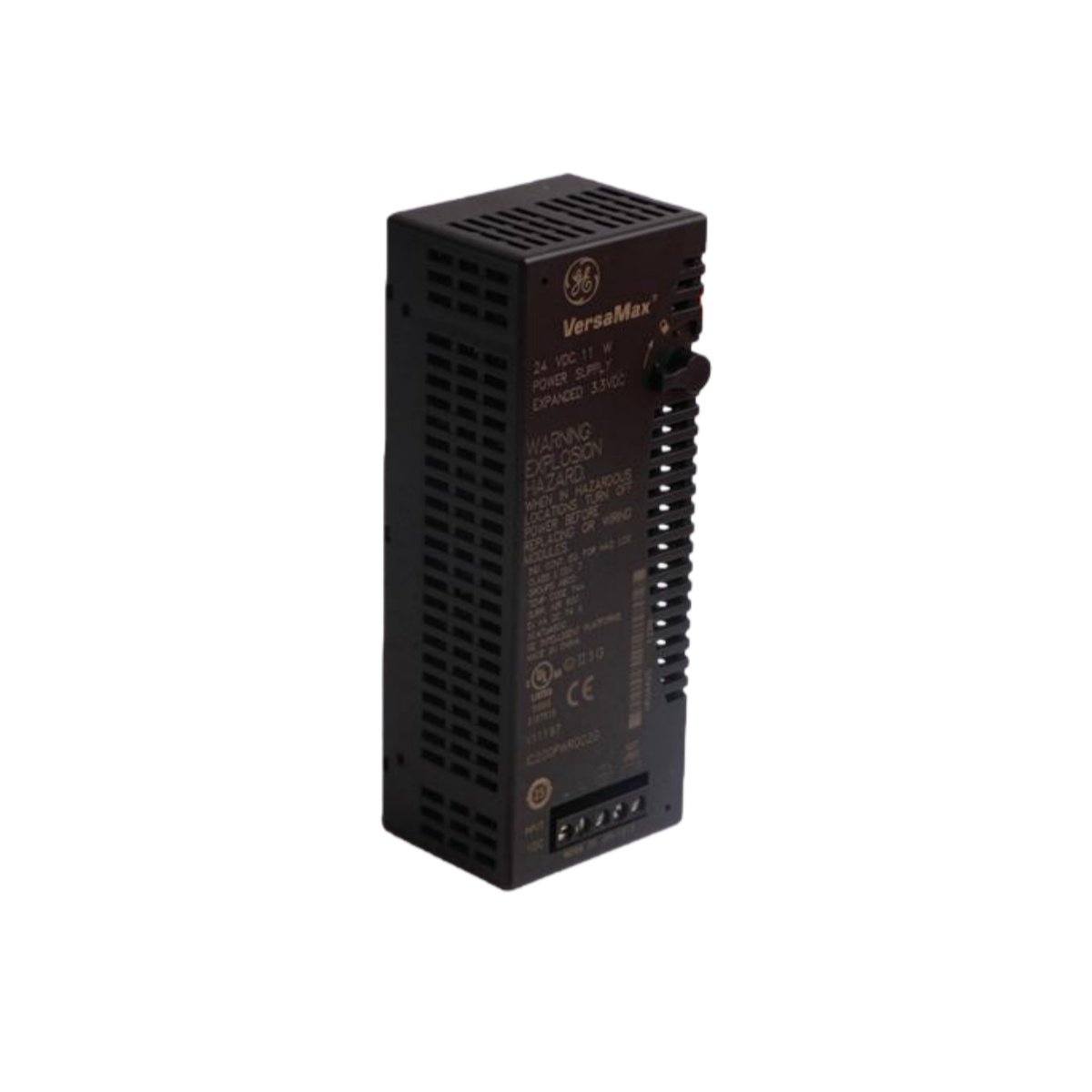

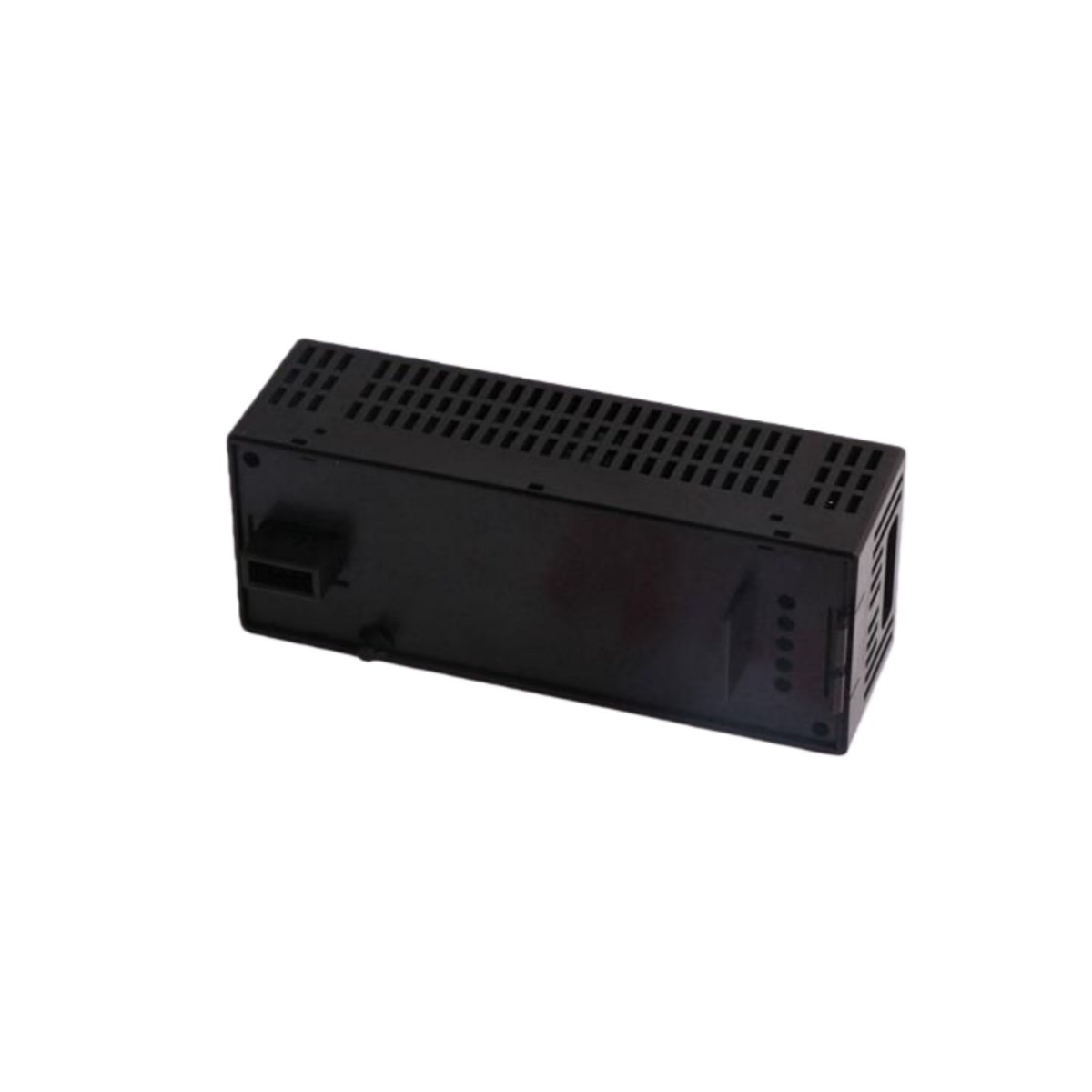

This power supply module provides regulated DC power to GE VersaMax I/O racks and field devices. It converts 120/240 V AC input into stable outputs for logic and loop power. The IC200PWR102 delivers 40 W of total output capacity for small to medium installations.
Core Electrical Specifications
The module accepts an input voltage range of 85–264 V AC at 47–63 Hz. It produces two output rails at 5 V DC and 24 V DC respectively. The 5 V rail delivers 5 A for powering backplane logic and communication circuits. Furthermore, the 24 V rail supplies 1 A for energizing field sensors and actuators. The unit achieves 82% typical efficiency across its full load range.
Connectivity and Protection Features
The front panel features screw-type terminal blocks for AC input and DC output connections. These terminals accept wire gauges from 0.5 to 2.5 mm² for secure terminations. Additionally, the IC200PWR102 includes a green LED for power-good status indication. The unit offers short-circuit protection on both output rails for safe operation. It also provides overvoltage protection that clamps outputs at safe levels.
Energy Storage and Ride-Through Capability
An internal capacitor bank stores 25 joules of energy for brief hold-up requirements. This storage maintains output regulation for 20 milliseconds following an AC dropout. Consequently, the module prevents controller resets during momentary power disturbances. The unit also features soft-start circuitry that limits inrush current to 20 A peak.
Mechanical Specifications and Environmental Ratings
The module measures 13.0 x 12.0 x 4.5 centimeters and weighs approximately 600 grams. Its compact block design mounts directly onto a standard 35-mm DIN rail. The operating temperature range spans -10°C to +55°C with 90% non-condensing humidity tolerance. Moreover, the IC200PWR102 fits neatly into GE VersaMax rack systems.
Technical Parameters Summary
| Parameter | Specification |
|---|---|
| Model | GE IC200PWR102 |
| AC Input Range | 85–264 V AC, 47–63 Hz |
| Output 1 | 5 V DC / 5 A |
| Output 2 | 24 V DC / 1 A |
| Total Output Power | 40 W |
| Efficiency | 82% (typical) |
| Hold-up Time | 20 ms at full load |
| Storage Energy | 25 Joules (capacitor bank) |
| Inrush Current Limiting | 20 A peak, soft-start |
| Input Terminals | Screw-type, 0.5–2.5 mm² |
| Output Protection | Short-circuit, overvoltage |
| Status Indicator | 1 x green LED |
| Mounting | 35-mm DIN rail |
| Dimensions (W x H x D) | 13.0 x 12.0 x 4.5 cm |
| Weight | 600 g |
| Operating Temperature | -10°C to +55°C |
| Certifications | CE, UL, CSA |
System Integration and Application Areas
This power supply integrates with GE VersaMax I/O systems and standalone applications. It supplies clean power to analog, digital, and specialty I/O modules effectively. The unit’s compact size allows mounting in crowded control panels easily. Industries such as water treatment, HVAC, and conveyor systems benefit from its reliable performance.
Summary
The IC200PWR102 offers a cost-effective power solution for VersaMax-based control systems. Its dual outputs, robust protection, and compact design simplify panel integration. This module provides dependable power for a wide range of automation applications.
Details
| Weight | 0.6 kg |
|---|---|
| Dimensions | 130 × 120 × 45 mm |
