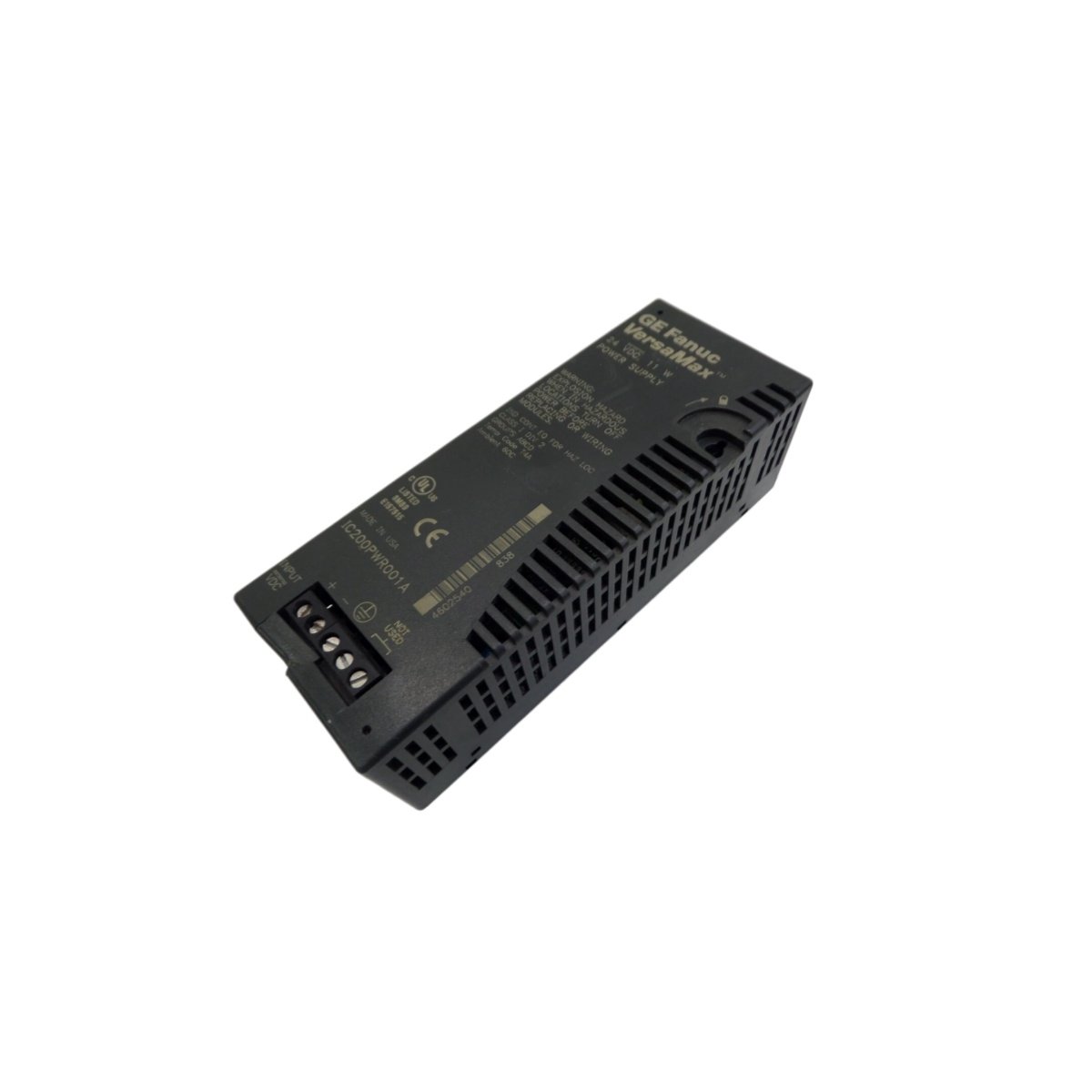

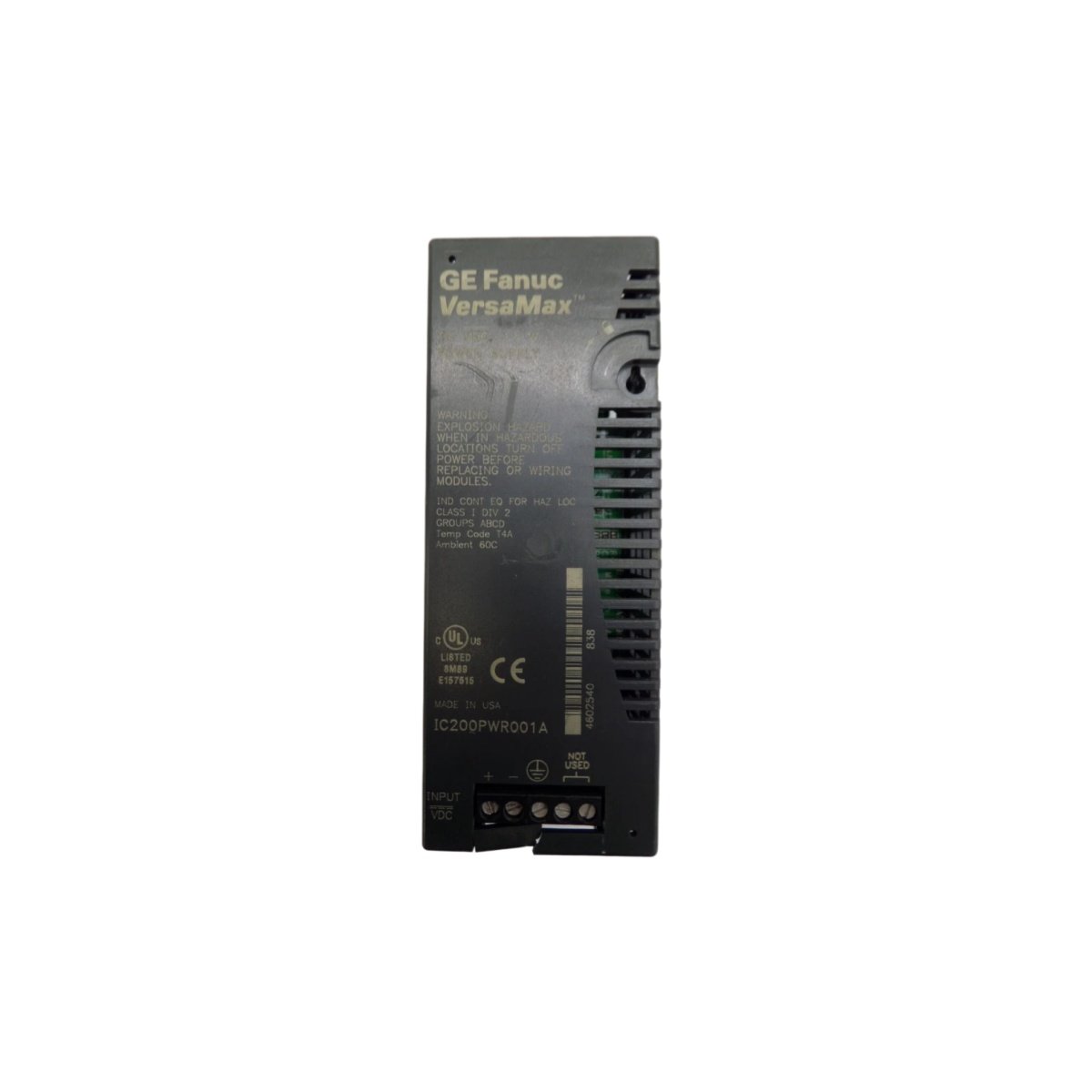

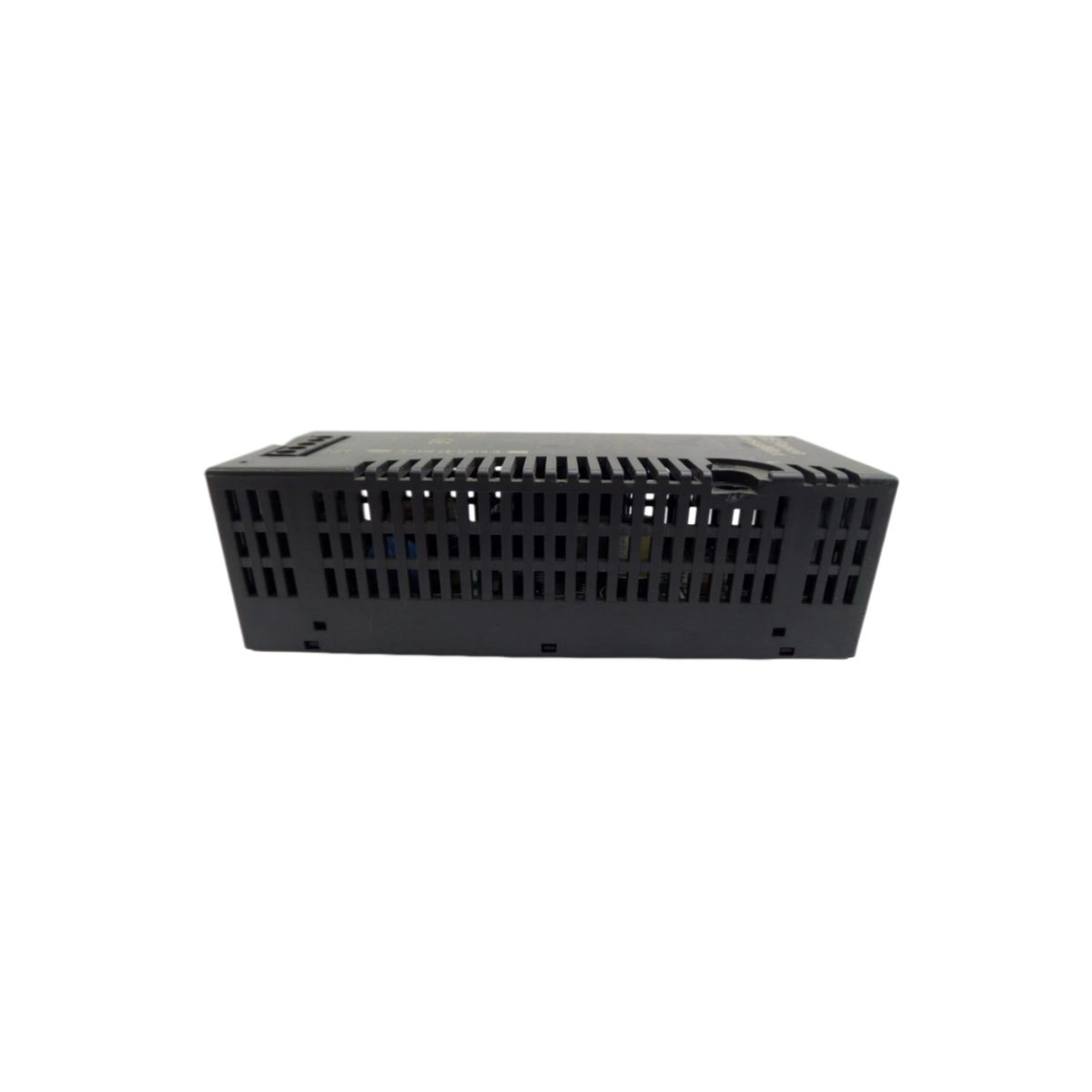

The IC200PWR001A delivers regulated DC power inside GE Fanuc’s VersaMax PLC platform. This module measures roughly 4.3 inches tall, 1.7 inches wide, and 2.4 inches deep. Moreover, it weighs about 0.4 pounds, which suits compact DIN rail cabinets. Engineers specify the IC200PWR001A when they need stable rail voltages for controllers and I/O modules.
Technical Specifications and Interface Details
The unit converts AC mains input into regulated DC output for backplane distribution. Specifically, it supplies 5 VDC and 24 VDC rails to connected VersaMax modules. Additionally, screw terminals accept field wiring without special tools. Front-panel LEDs reveal output status and fault conditions during service.
| Parameter | Specification |
|---|---|
| Module Type | Power Supply Module |
| Platform | VersaMax PLC |
| Input | AC mains |
| Output | 5 VDC and 24 VDC rails |
| Dimensions | 4.3 x 1.7 x 2.4 in |
| Weight | ~0.4 lbs |
| Terminals | Screw-type field connections |
| Mounting | DIN rail |
Energy Storage and Output Stability
Internal capacitors on the IC200PWR001A provide substantial energy storage for smooth DC output. Consequently, the supply rides through brief mains dips without disturbing logic circuits. This buffering also filters ripple that could affect analog measurements. The design therefore supports consistent performance across demanding plant conditions.
Installation and Compatibility Notes
Because the IC200PWR001A snaps onto standard DIN rail, technicians complete installation quickly. They should verify mains voltage before they energize the supply. Furthermore, the module integrates smoothly with existing VersaMax control hardware. Always store spare units in anti-static packaging to protect sensitive components.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
