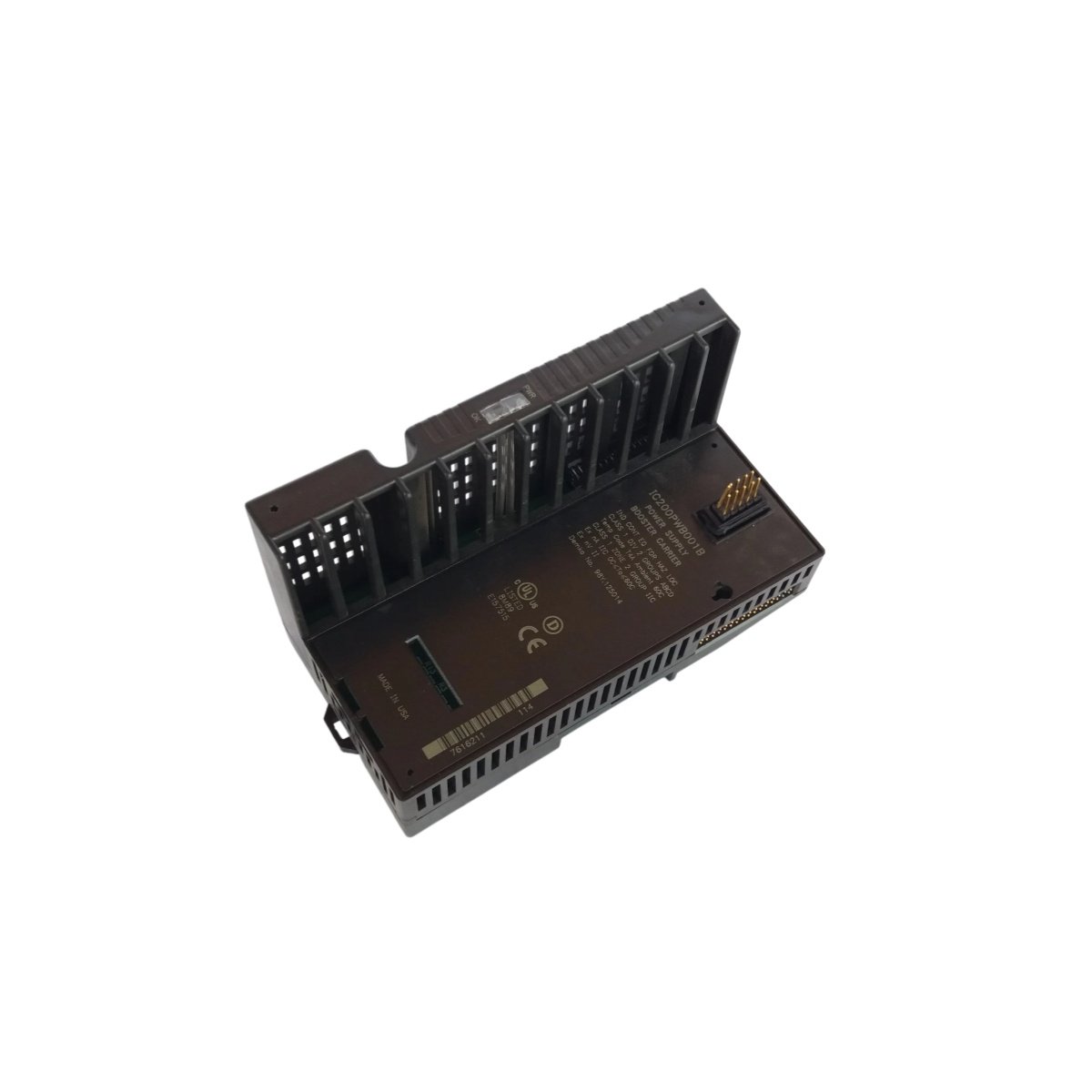

The IC200PWB001B power supply booster carrier supports expanded loading for GE VersaMax PLC systems. This carrier module holds and connects booster power supplies within a rack. Engineers use it to feed additional modules when standard supply capacity falls short.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Power Supply Booster Carrier |
| Compatibility | GE VersaMax PLC Systems |
| Function | Booster Supply Mounting and Distribution |
| Interface | Backplane Bus Connector, Power Terminals |
| Dimensions | 110 mm x 66 mm x 100 mm |
| Weight | Approximately 0.25 kg |
| Component Count | 18 Active Electronic Components |
| Energy Storage | None Required |
| Input Voltage | 24 VDC |
| Output Capacity | Supports One Booster Supply |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Power Distribution Design
The carrier accepts one booster supply and routes power across the backplane. Therefore, additional I/O modules receive stable voltage without strain. Furthermore, the design isolates booster output from the main supply rail. Consequently, system loading stays balanced across multiple modules.
Interface and Integration
A backplane connector links the IC200PWB001B directly to the VersaMax rack. As a result, power and data flow through protected internal paths. Additionally, screw terminals accept field wiring for the booster input.
Electrical Characteristics
The unit operates on 24 VDC and supports one booster supply module. Moreover, it handles ambient temperatures from 0°C to 55°C reliably. Consequently, it suits most industrial control cabinet environments.
Installation Notes
Operators snap the carrier into a standard VersaMax slot for quick assembly. The compact housing fits tight racks with minimal clearance needs. However, users should verify total load calculations before adding modules.
