Product Overview

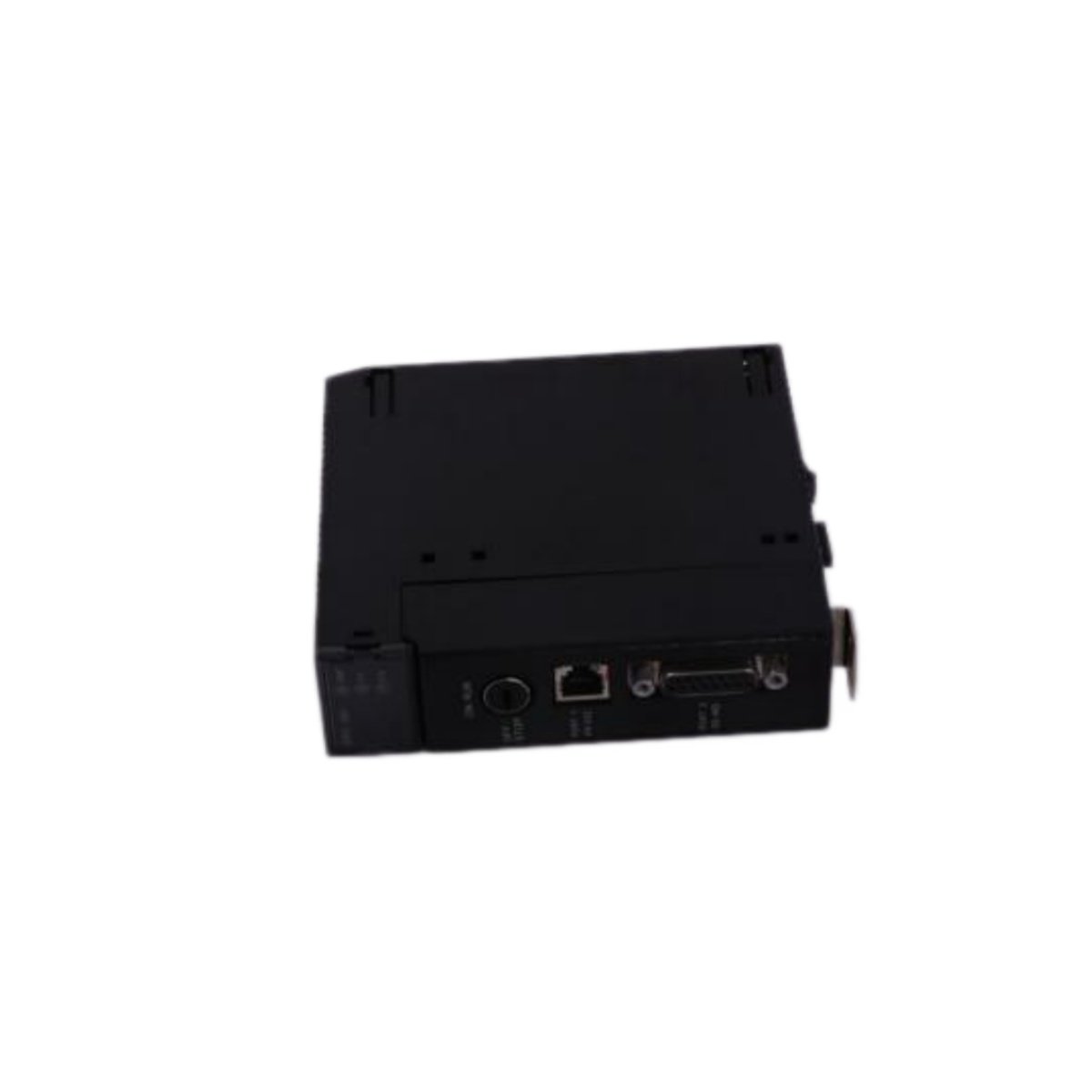

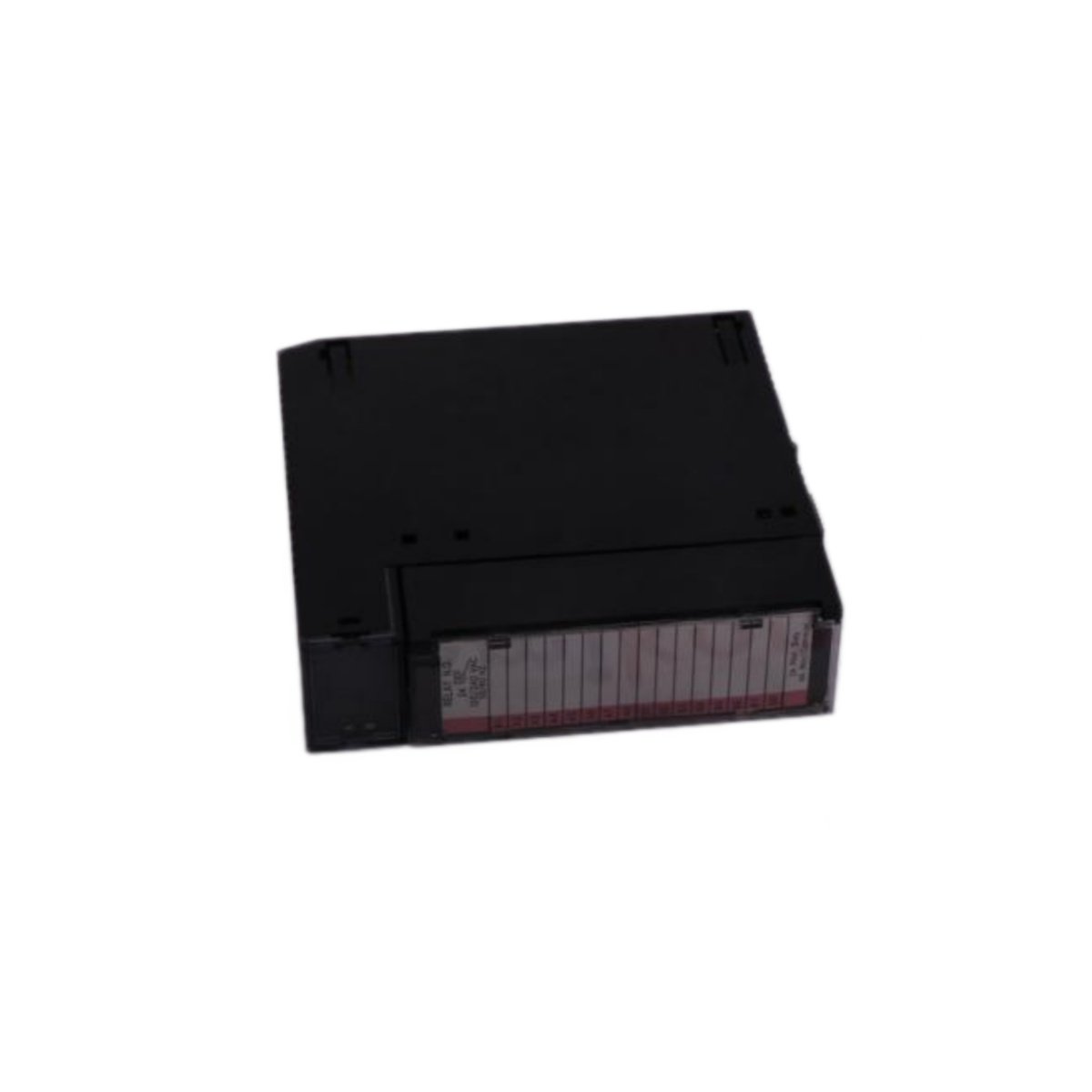

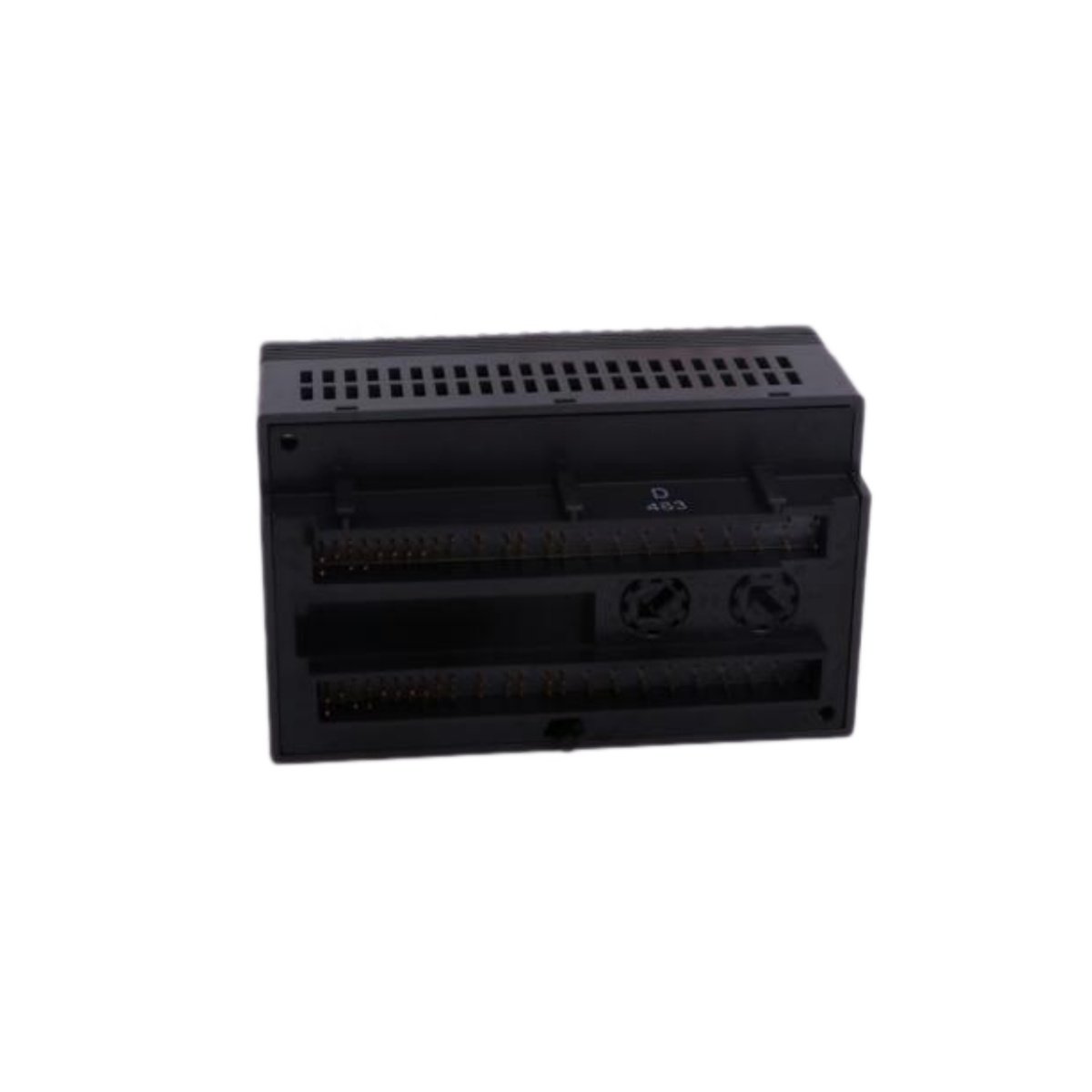

The GE IC200PBI001-KG network interface unit serves as a communication gateway for the VersaMax I/O platform. This module connects remote I/O drops to a Profibus DP network master. It translates Profibus DP protocol into the native VersaMax backplane communication format. The unit supports both cyclic data exchange and acyclic parameter access for flexible control strategies.

Technical Specifications

Communication Performance

This interface unit automatically detects the network baud rate from 9.6 kbps up to 12 Mbps. The GE IC200PBI001-KG handles 244 bytes of input and 244 bytes of output data per scan cycle. It supports both synchronous and free-run mode for matching different application requirements. The RS-485 transceiver provides robust noise immunity for reliable communication in industrial environments.

Addressing and Configuration

You set the station address using two rotary switches located on the front panel. The unit supports addresses from 0 to 99, allowing flexible network planning. Configuration software maps the I/O data into the Profibus DP telegram structure. This unit stores its configuration parameters in non-volatile memory to retain settings after power loss.

Physical Interface and Indicators

The 9-pin D-sub connector provides a standard interface for Profibus cables. Four LED indicators display power, network status, I/O fault, and module health conditions. The GE IC200PBI001-KG includes a removable terminal block for the external 24 VDC power supply. This design simplifies replacement procedures without disturbing field wiring connections.

Mechanical Construction

This interface unit measures 12.5 centimeters in height and weighs only 0.25 kilograms. Its compact housing fits directly into the standard VersaMax I/O rack system. The unit uses high-temperature plastic that maintains dimensional stability in warm cabinets. Ventilation holes ensure adequate airflow for passive heat dissipation during long-term operation.

System Integration

This gateway supports up to 32 stations per Profibus DP segment for large distributed systems. You can place the GE IC200PBI001-KG up to 1,200 meters from the master using standard twisted-pair cable. The unit works with all VersaMax discrete and analog I/O modules in the drop. It also supports device-specific parameterization through Profibus DPV1 extensions.

Environmental and Compliance

This network interface operates reliably from 0°C to 60°C ambient temperature. It withstands humidity from 5% to 95% without condensation issues. The unit meets UL 508, CSA C22.2, and CE directives for industrial automation products. Consequently, this module suits automotive assembly, material handling, and process skid applications.
