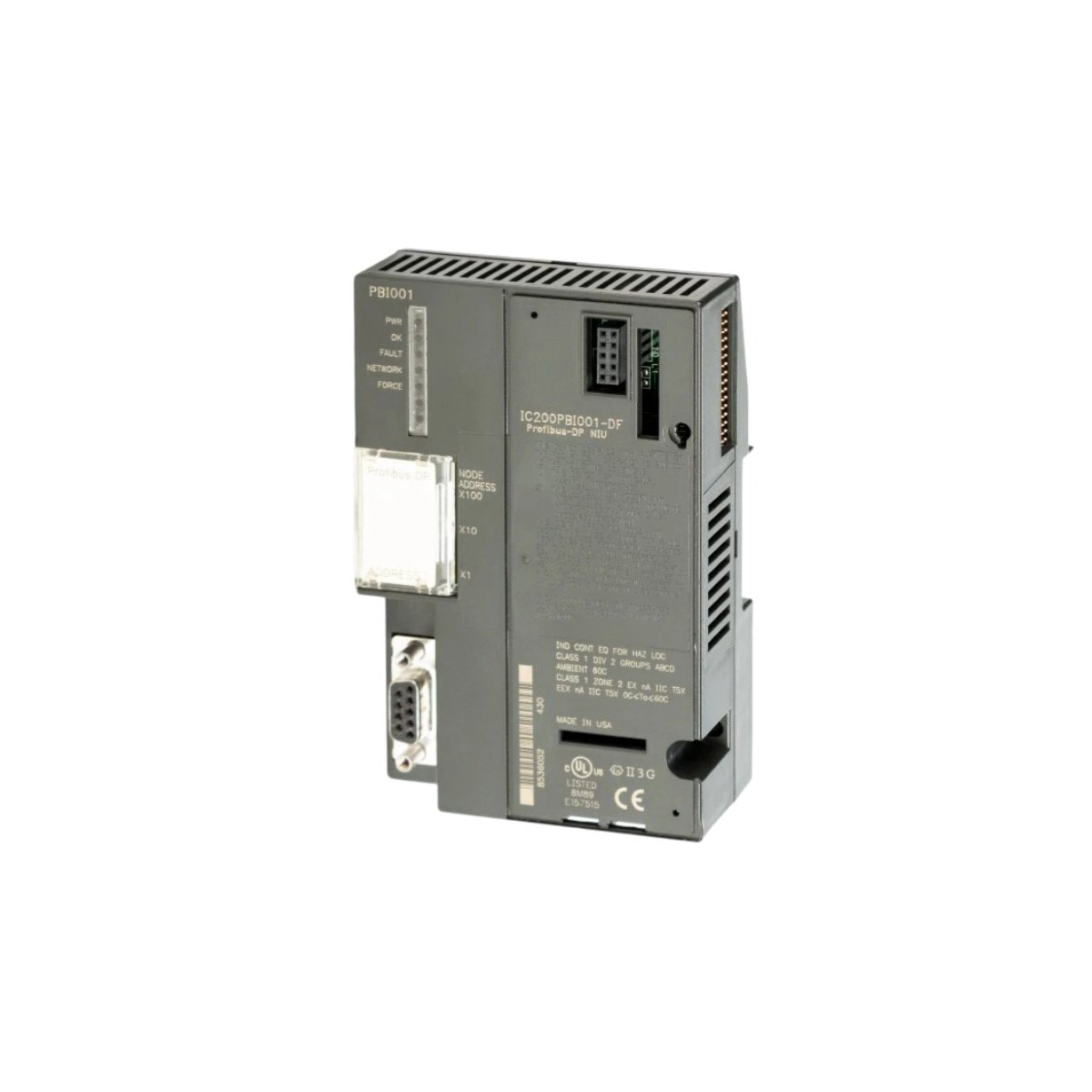

This Profibus-DP slave module connects GE VersaMax I/O systems to Profibus master controllers. It enables seamless data exchange between VersaMax devices and Siemens or third-party PLCs. Engineers choose this module for its fast data transfer rates and easy configuration . Its design supports modular and redundant VersaMax system architectures.

Network Communication and Protocol Support

The GE IC200PBI001-DF supports Profibus-DP communication with data rates from 9.6 Kbps to 12 Mbps. It automatically detects the baud rate set by the master controller. A single module can exchange up to 244 bytes of input and 244 bytes of output data . The module uses DPV0 cyclic communication for continuous data transfer . Additionally, the module supports DPV1 parameterization, alarms, and acyclical communication for enhanced functionality.

I/O Mapping and Configuration Flexibility

The GE IC200PBI001-DF maps Profibus configuration data to the rack number, slot number, and byte count . You can configure any combination of input and output bytes within the 244-byte limit. The module operates as a DPV0 slave for standard I/O scanner configuration . It also enables DPV1 services in DP-V1 capable master controllers . The module accepts up to 25 GSD configuration options for versatile system integration.

Key Technical Specifications

The table below summarizes the critical parameters for the GE IC200PBI001-DF.

Installation and System Integration

This module mounts directly onto a VersaMax carrier alongside I/O modules. You can achieve maximum flexibility through combined standard and high-density I/O configurations . The module operates without requiring any communication coprocessor . You configure the module using master station parameters in the PLC configuration software. Therefore, engineers can integrate VersaMax I/O seamlessly into existing Profibus networks.
