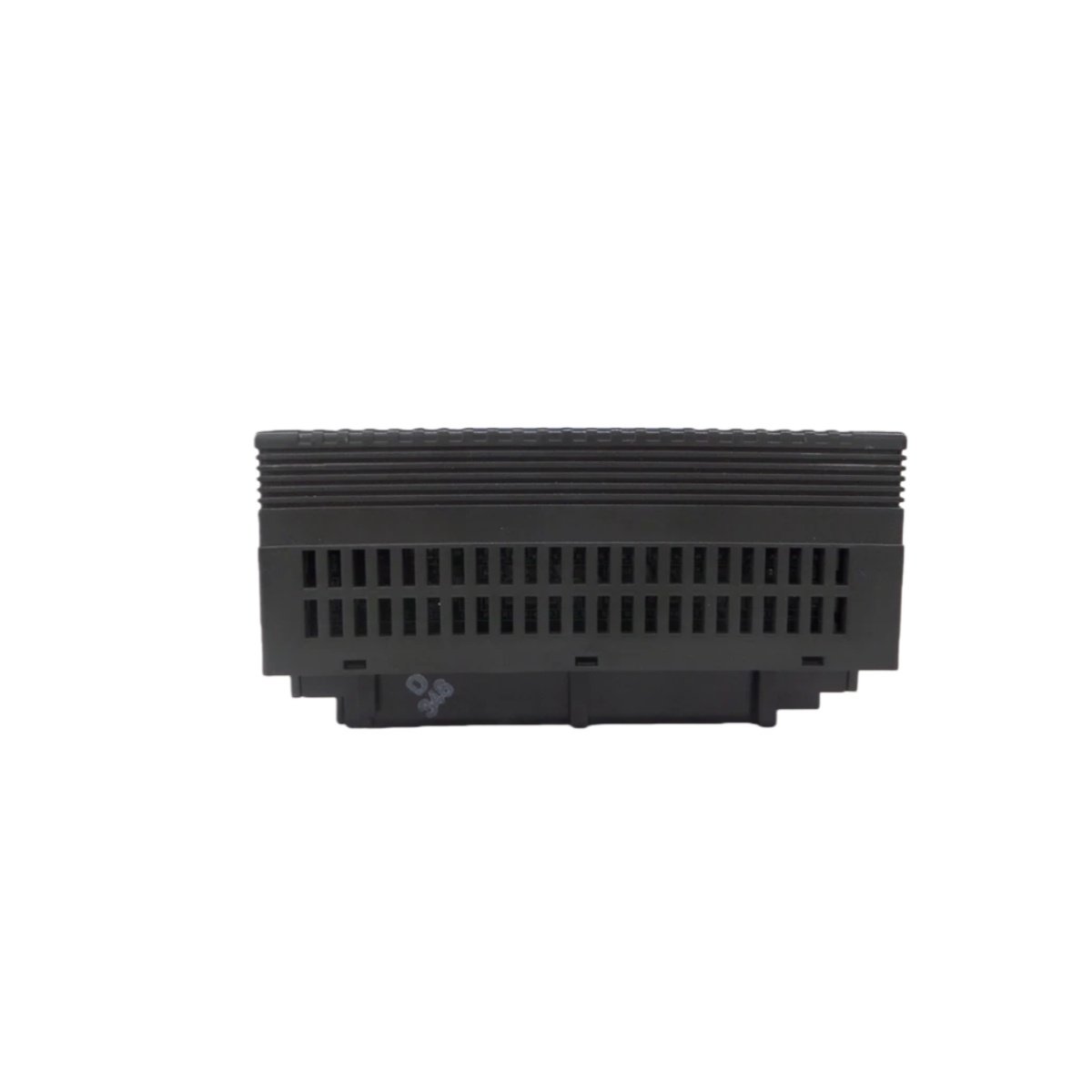

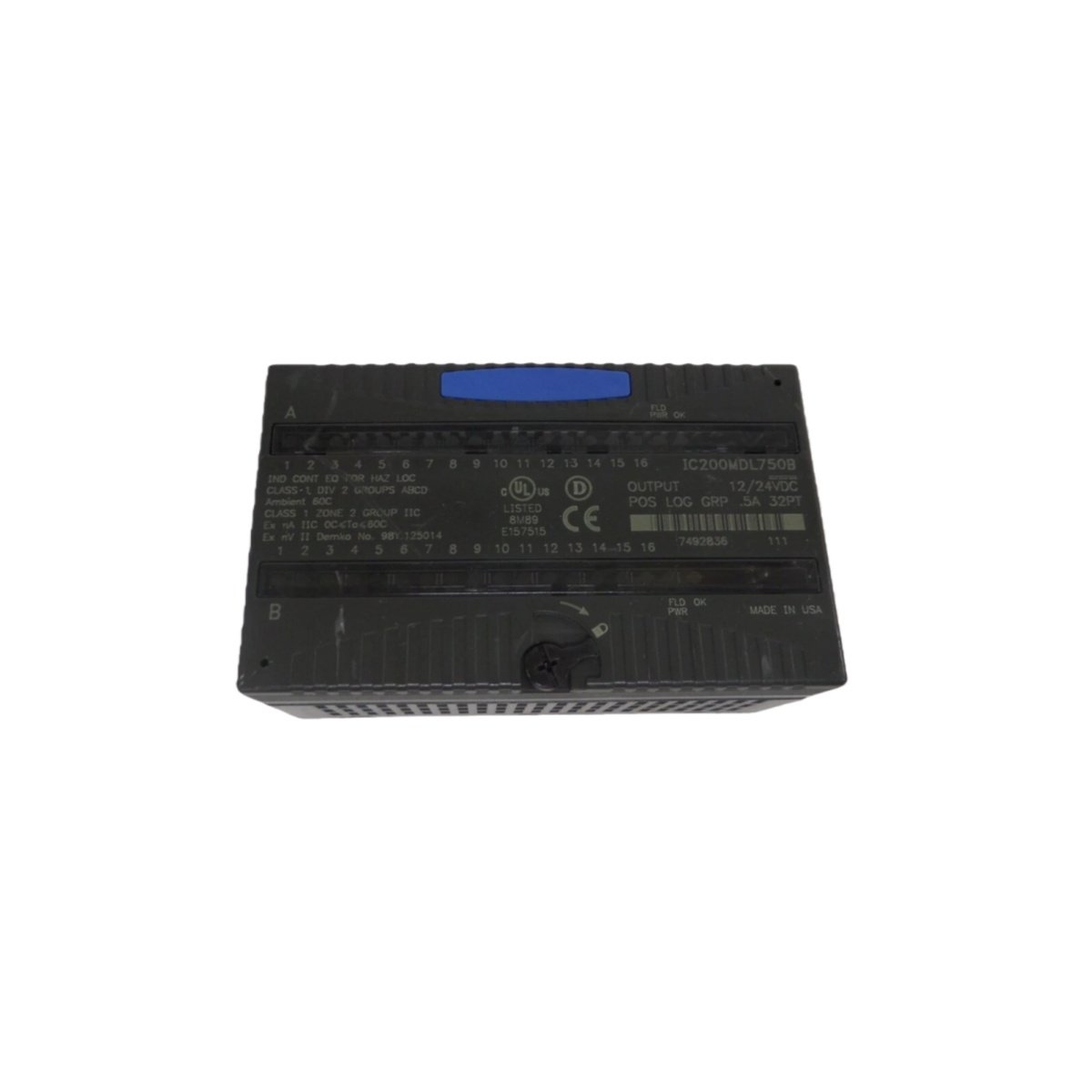

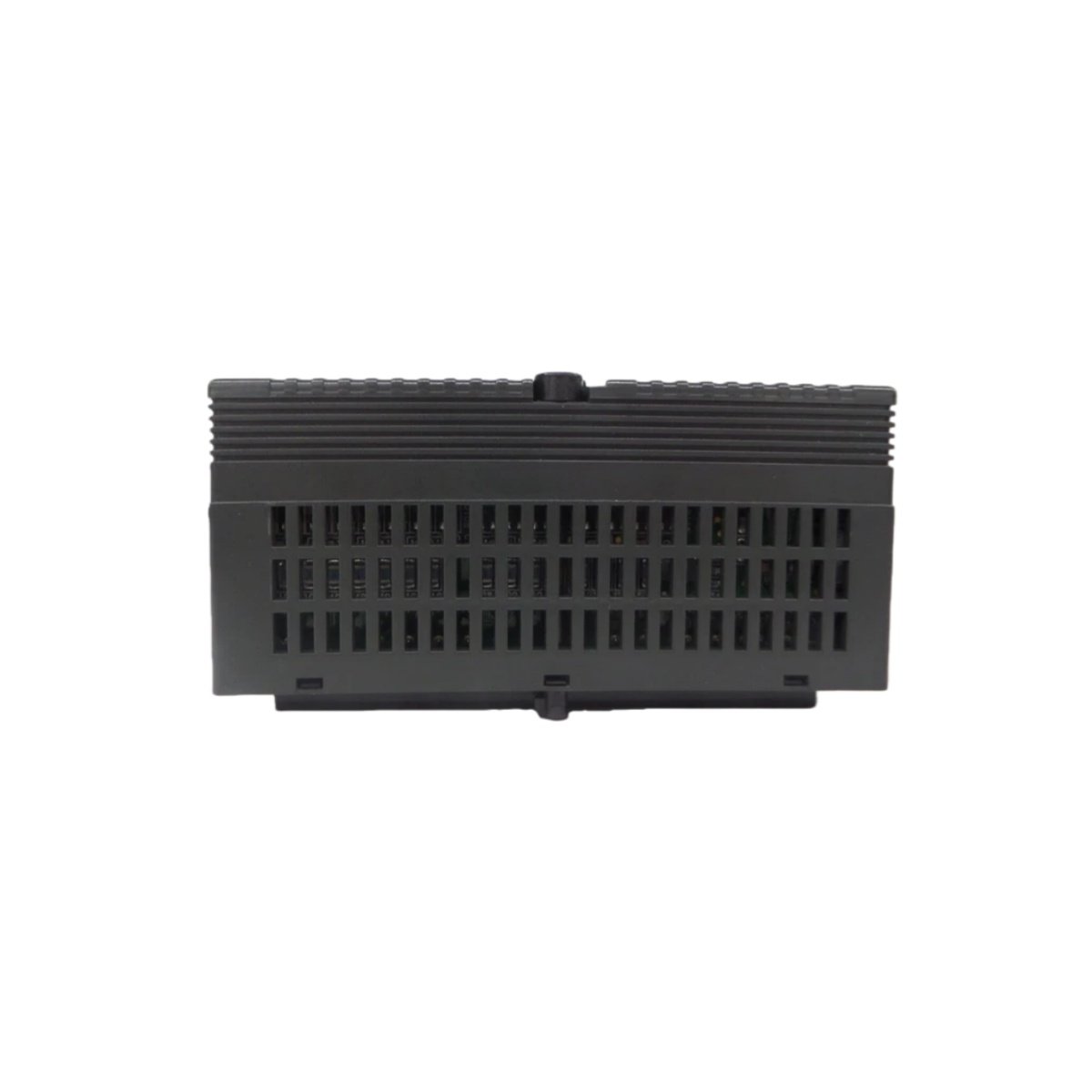

This output module provides reliable discrete control for GE VersaMax PLC systems. It drives solenoids, contactors, indicator lights, and other 120 VAC field devices. The module’s compact design saves valuable space in control cabinets.
Output Configuration and Electrical Ratings
The GE IC200MDL750 features 16 discrete output points, each rated for 120 VAC operation. Each point handles 0.5A of continuous current with a surge rating of 2.0A for 10ms. The total load current per common is 4.0A maximum. The module includes individual LED indicators for each output to show the on/off status. The module has a backplane current draw of 90mA at 5VDC and 150mA at 24VDC.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | IC200MDL750 |
| Product Type | Discrete Output Module |
| System Compatibility | GE VersaMax Family |
| Output Type | 16 outputs |
| Output Voltage | 120 VAC |
| Output Current | 0.5A per point, 2.0A surge (10ms) |
| Total Load Per Common | 4.0A maximum |
| Backplane Current Draw | 90mA at 5VDC, 150mA at 24VDC |
| Response Time (Off to On) | 1ms maximum |
| Response Time (On to Off) | 10ms maximum |
| Protection | Short circuit protection, Overcurrent protection |
| Module Width | Single slot |
| Dimensions | Approx. 73 × 146 × 56 mm |
| Weight | 0.25kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Wiring Type | Removable terminal block |
| Mounting | VersaMax mounting rail |
| Certifications | UL, CE, CSA |
Output Protection and Diagnostics
The module features short-circuit protection that trips when overcurrent conditions occur. Each output channel includes an overcurrent protection circuit that disables the output during fault conditions. The controller resets tripped outputs automatically after a time delay when the fault clears. LED indicators assist in troubleshooting by showing the current status of each output. These status indicators allow operators to verify output states without needing a programming terminal.
Application Use and Field Wiring
This module suits machine control, conveyor systems, packaging lines, and material handling applications. It also drives alarm annunciators, heating elements, and small contactors in building automation systems. Removable terminal blocks simplify wiring and module replacement without removing field wires. The outputs are grouped into two isolated commons of 8 points each. This grouping provides flexibility in wiring different voltage circuits to the same module. The module’s rapid response times make it suitable for applications requiring quick output switching.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
