Product Overview

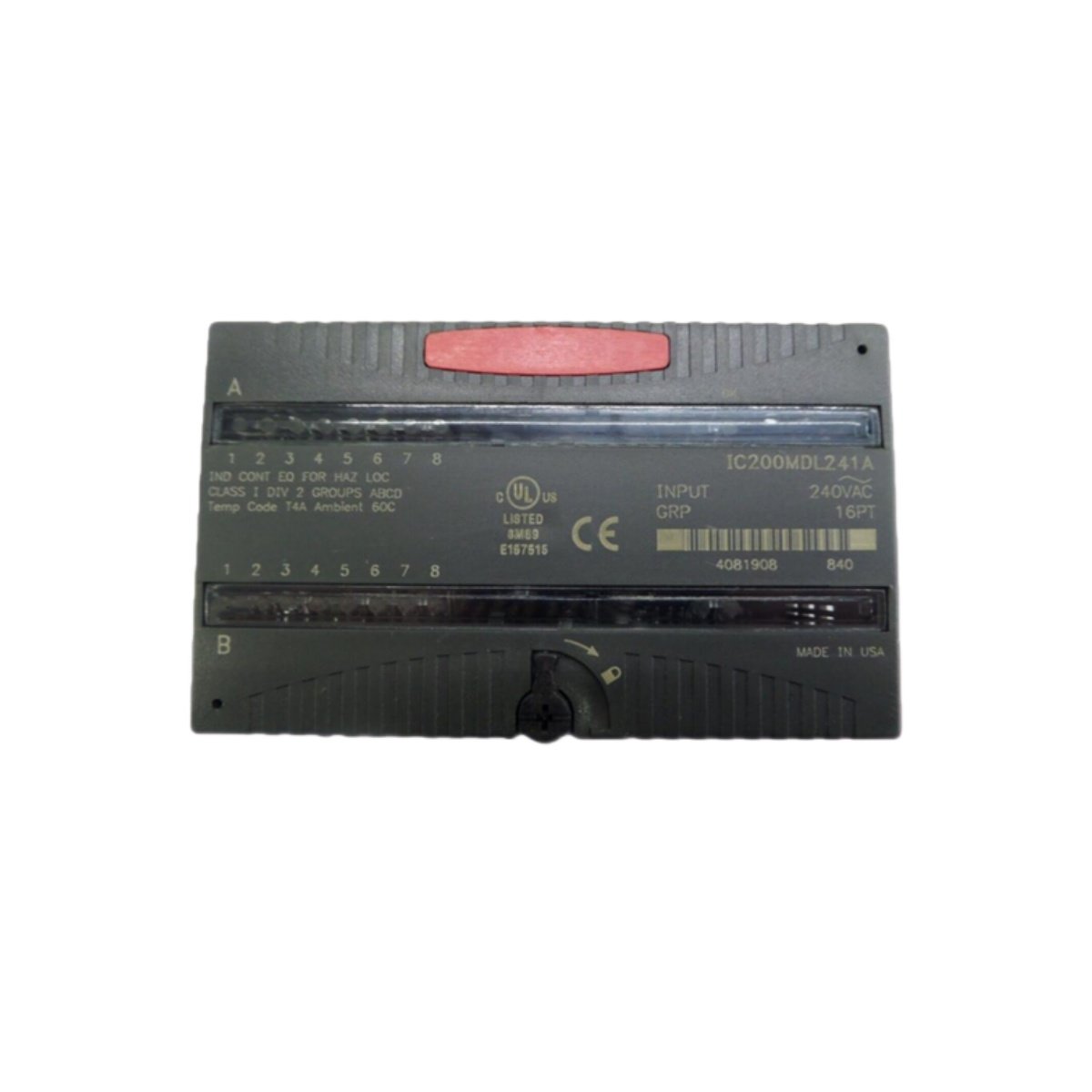

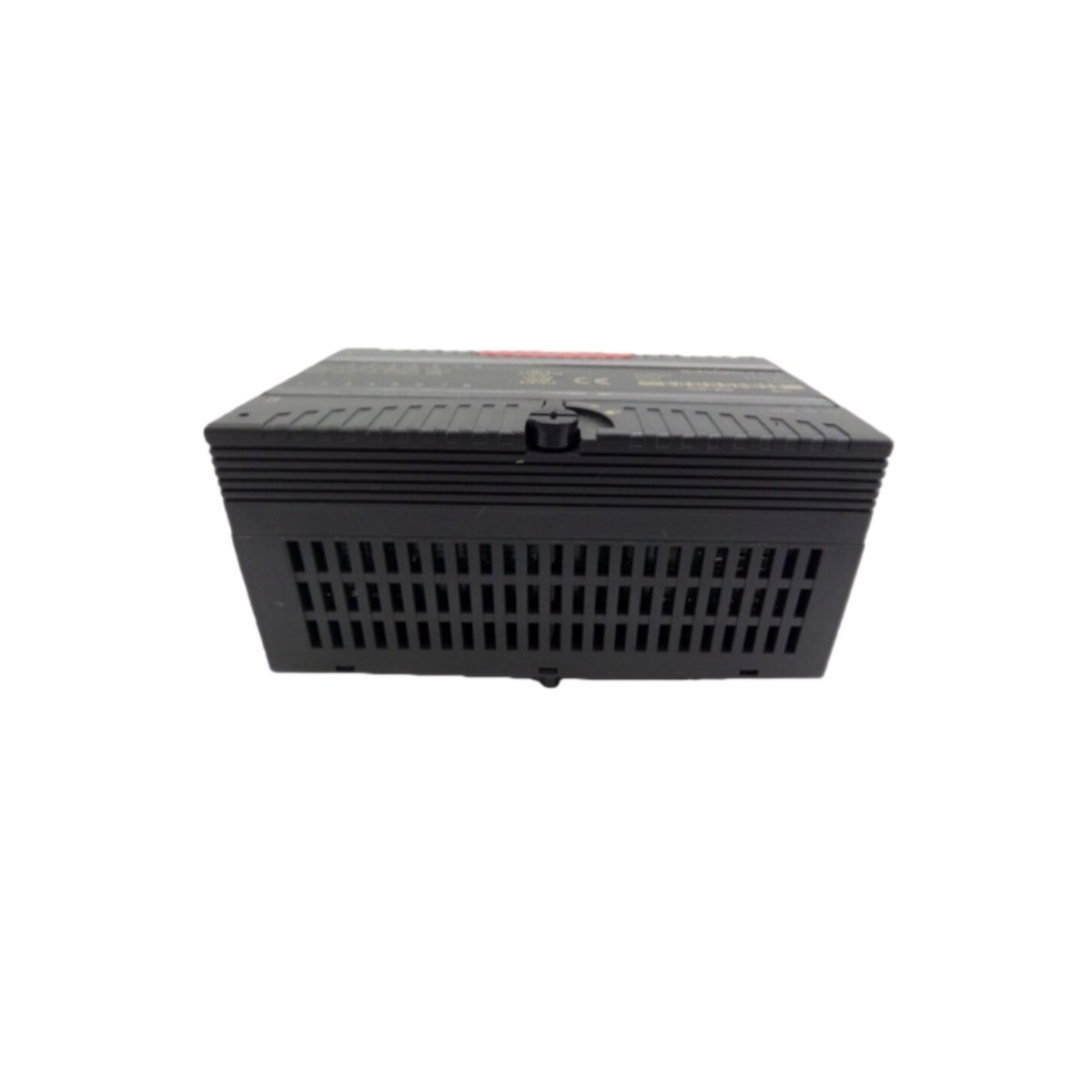

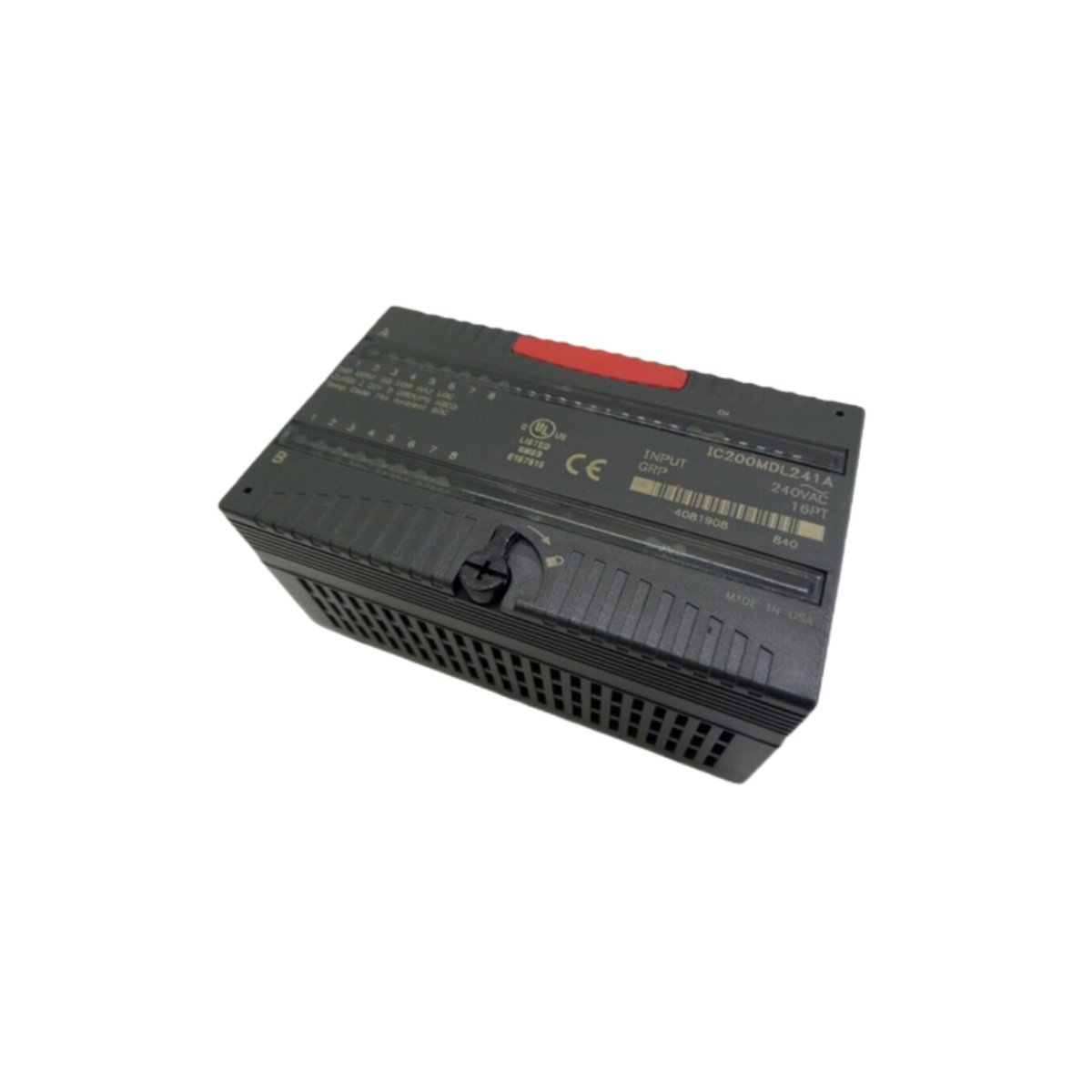

The GE IC200MDL241 VersaMax AC input module captures 16 discrete AC signals from field devices in GE Fanuc control systems. This module accepts 120V AC inputs for direct connection to standard industrial sensors. It integrates seamlessly into the VersaMax I/O platform. The unit provides reliable signal acquisition for monitoring and control applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC200MDL241 |
| Product Type | AC Input Module |
| Brand | GE Fanuc |
| Category | PLC Input Modules |
| Number of Inputs | 16 channels |
| Input Voltage | 120V AC nominal |
| Input Current | 7 mA (typical) |
| Frequency | 47-63 Hz |
| Backplane Current Draw | 5V DC, 55 mA |
| Isolation | Optical (channel-to-backplane) |
| Weight | Approximately 0.18 kg |
| Dimensions | Standard VersaMax module |
| Operating Temperature | 0°C to 60°C |
| Protection Class | IP20 |
Key Features and Benefits
Direct AC Input Connectivity
The IC200MDL241 accepts 120V AC inputs directly from standard sensors and switches. This eliminates the need for external signal conditioning. Users save panel space and reduce component costs.
Optical Isolation Protection
The module features optical isolation between field inputs and the backplane. This isolation protects the controller from voltage spikes. Consequently, system reliability improves in electrically noisy environments.
High Channel Density
This input module packs 16 channels into a compact VersaMax package. This density saves valuable cabinet space. System integrators can connect numerous field devices efficiently.
Application and Use Cases
The GE IC200MDL241 serves manufacturing, packaging, and material handling systems using AC sensors. It also supports building automation and process monitoring applications. Maintenance engineers will find this module a reliable replacement for failed input units.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
