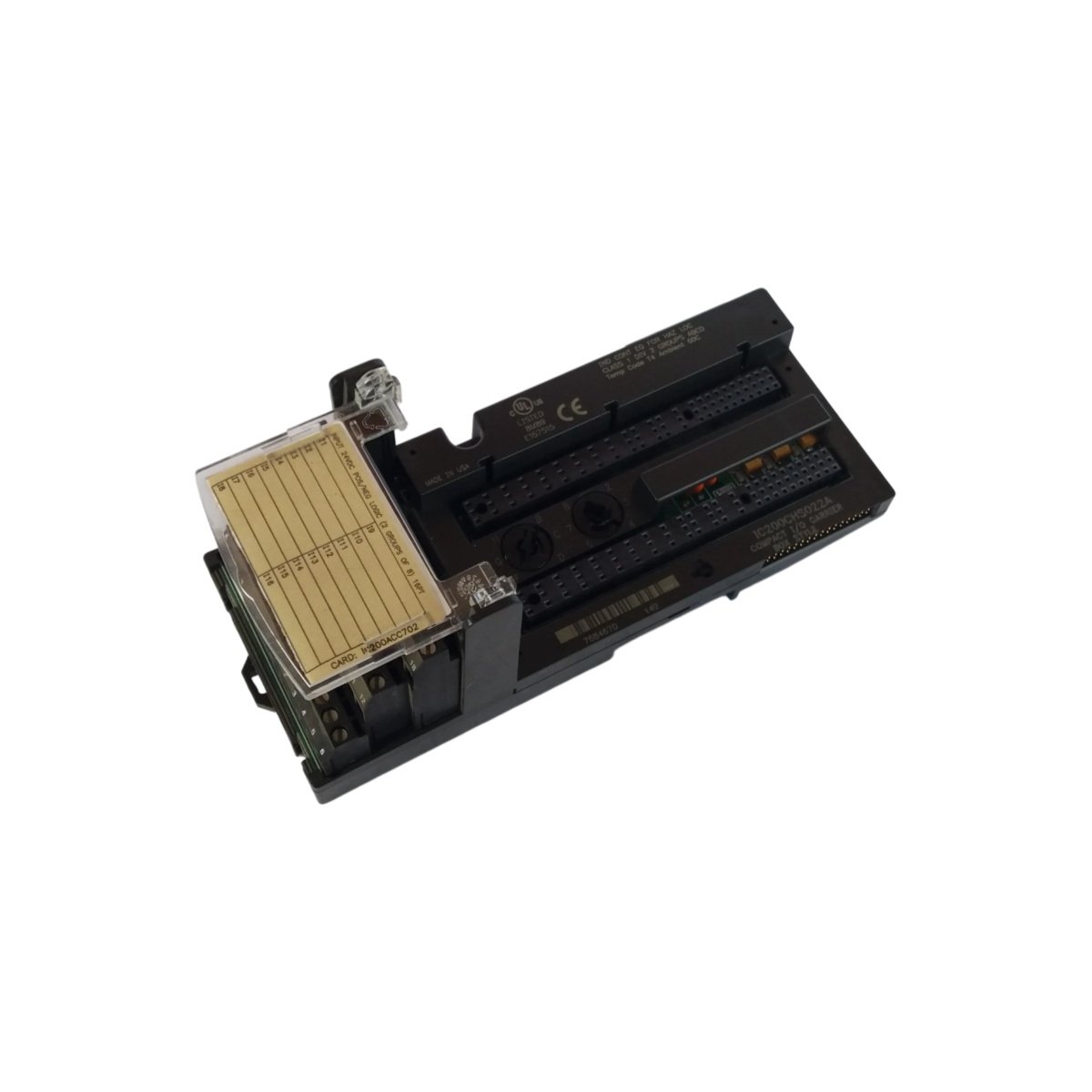

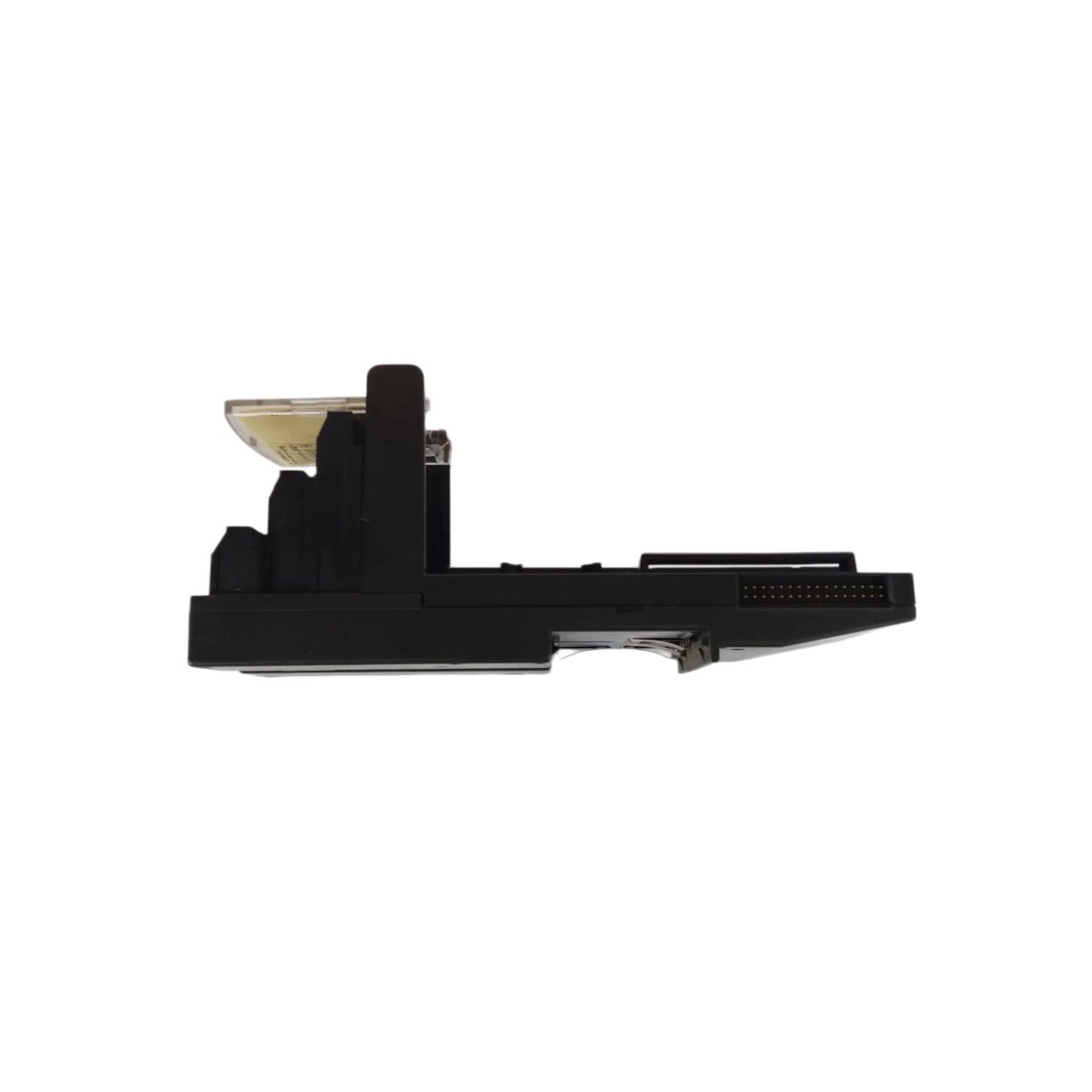

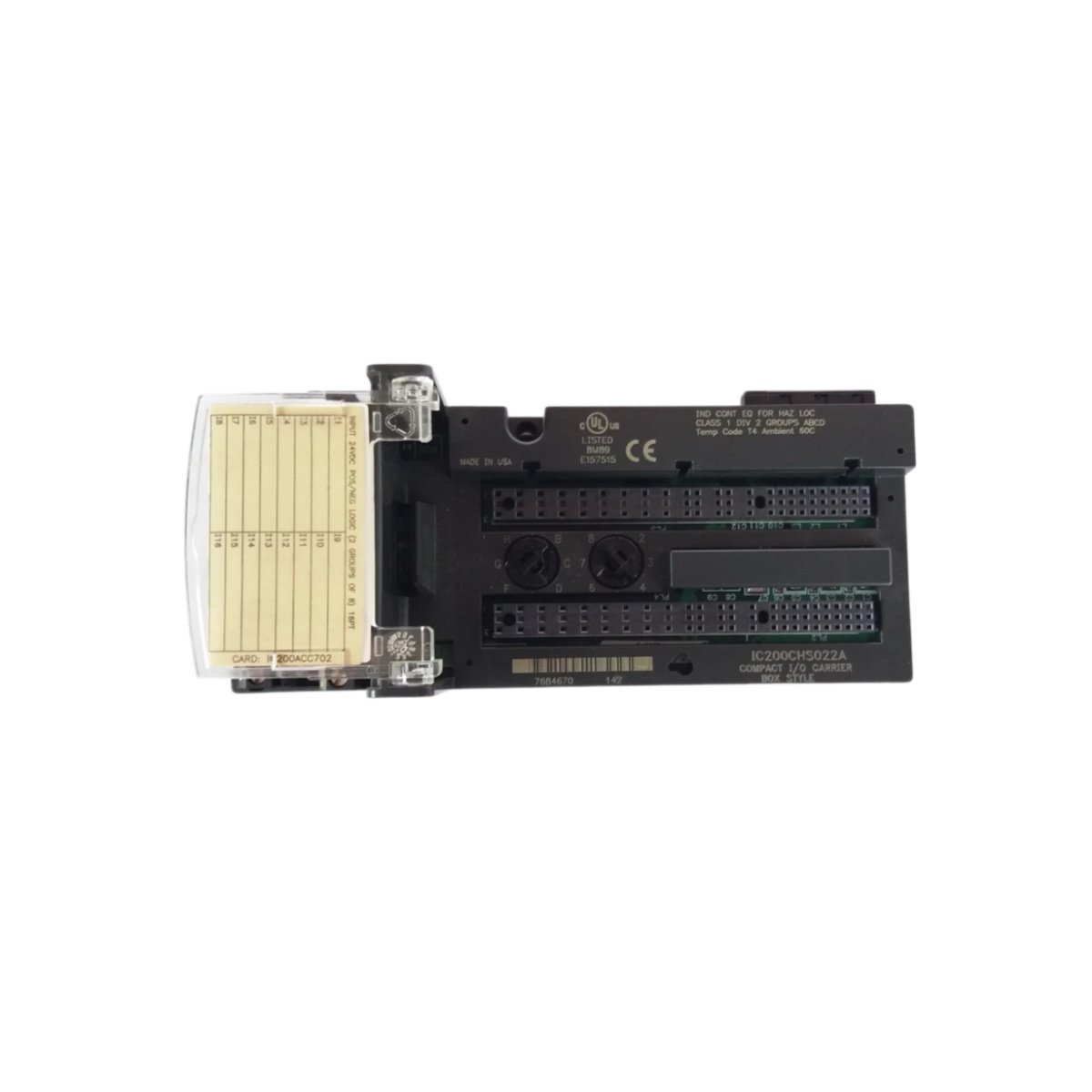

The GE IC200CHS022A VersaMax Compact I/O carrier provides a mounting platform for I/O modules in distributed control architectures. This compact base unit supports flexible system configurations for space-constrained applications. Its housing measures 110 mm in height, 45 mm in width, and 75 mm in depth.

Technical Specifications

Modular Architecture and System Scalability

The GE IC200CHS022A accommodates two VersaMax Compact I/O modules in a single assembly. This modular design allows users to mix discrete, analog, and specialty modules as needed. The carrier communicates with the network interface via the backplane bus for reliable data exchange. Engineers can add multiple carriers to scale the system without major hardware redesign.

Backplane Communication and Data Transfer

This carrier provides a passive backplane that routes signals between modules and the network adapter. The backplane carries both power and communication signals to all installed modules. The bus operates at deterministic speeds for consistent I/O update cycles. Such reliable communication ensures synchronised operation across all connected modules.

Physical Design and Component Organization

The GE IC200CHS022A contains eight components, including connectors, terminals, and the PCB assembly. Its compact 45 mm width allows high-density installations in limited panel spaces. The gray housing protects internal circuitry and provides a professional appearance. Two 10-pin connectors provide secure interface points for the I/O modules.

Installation and Mounting Flexibility

Mount the GE IC200CHS022A on a standard 35 mm DIN rail using the integrated clip mechanism. Alternatively, use the two mounting holes for panel screw attachment in non-rail installations. The unit locks securely into position to prevent movement during vibration. Ensure adequate clearance around the carrier for module insertion and cable connections.

Power Distribution and Current Capacity

This carrier accepts a 24 V DC supply that powers the backplane and installed modules. The bus delivers up to 1.0 A at 5 V DC to support connected I/O modules. Such capacity handles typical combinations of discrete and analog modules without overloading. The carrier consumes only 1.5 W for its internal logic and bus management.

Module Insertion and Maintenance

Insert modules into the GE IC200CHS022A by aligning them with the guide rails and pressing firmly. The connector locks securely into place for reliable electrical and mechanical contact. Remove modules by releasing the retaining clip and pulling the module forward. This simple mechanism enables rapid field replacement and module upgrades.

Application Suitability and System Integration

This carrier works with VersaMax Compact discrete input, discrete output, and analog modules. It integrates seamlessly with network interface units for Ethernet, Profibus, or DeviceNet communication. The compact size suits small-scale applications like packaging machines and material handling. The carrier’s modularity simplifies expansion when control requirements grow over time.
