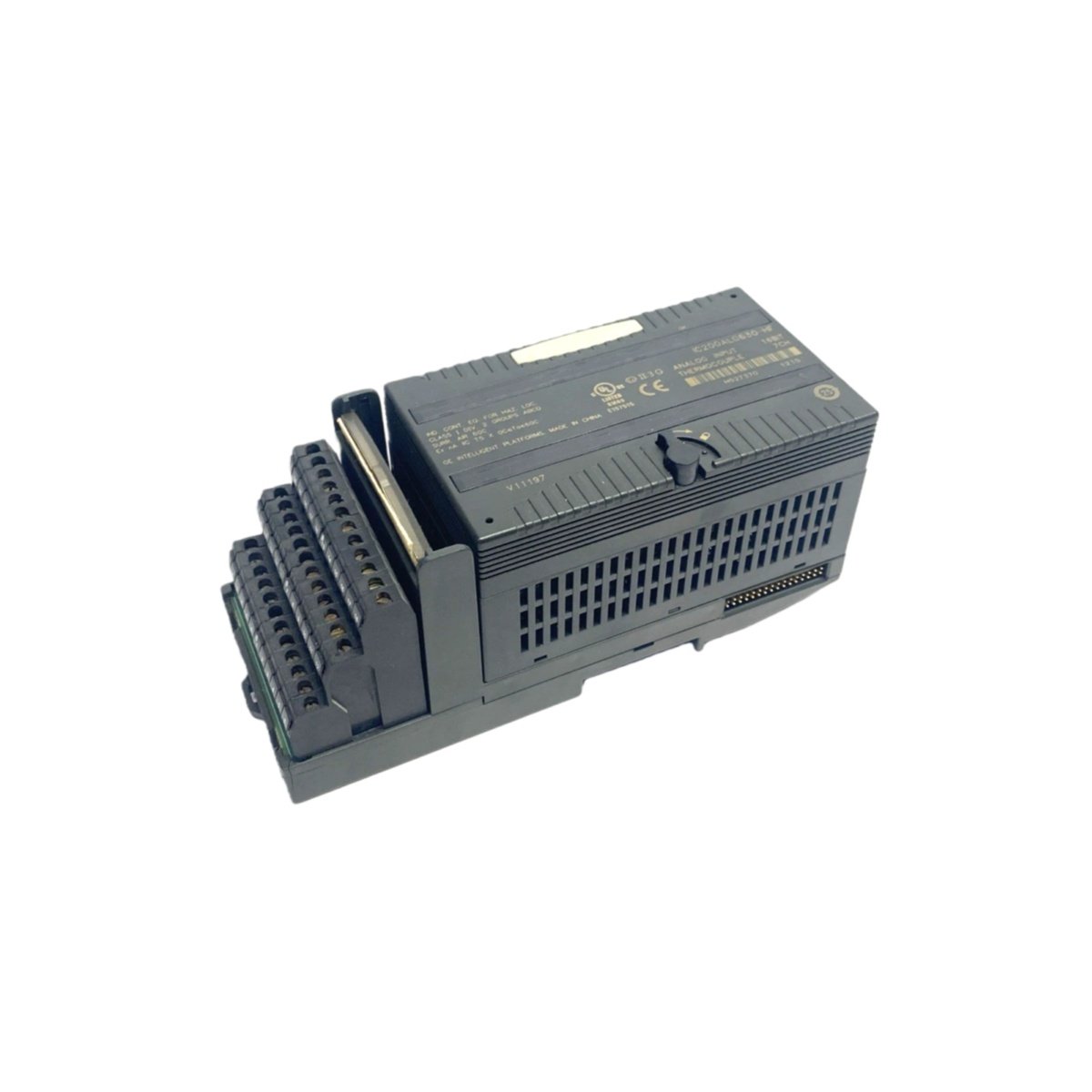

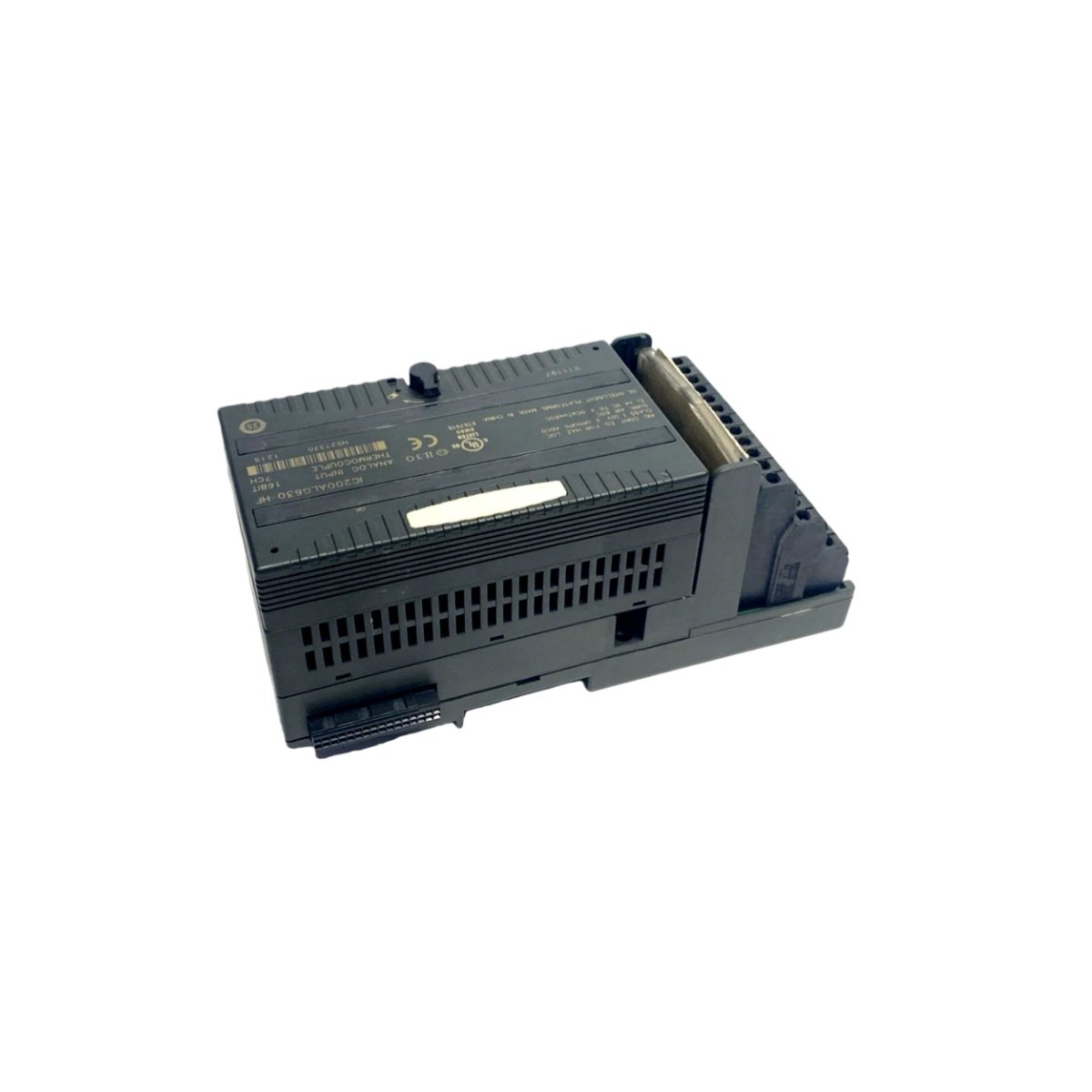

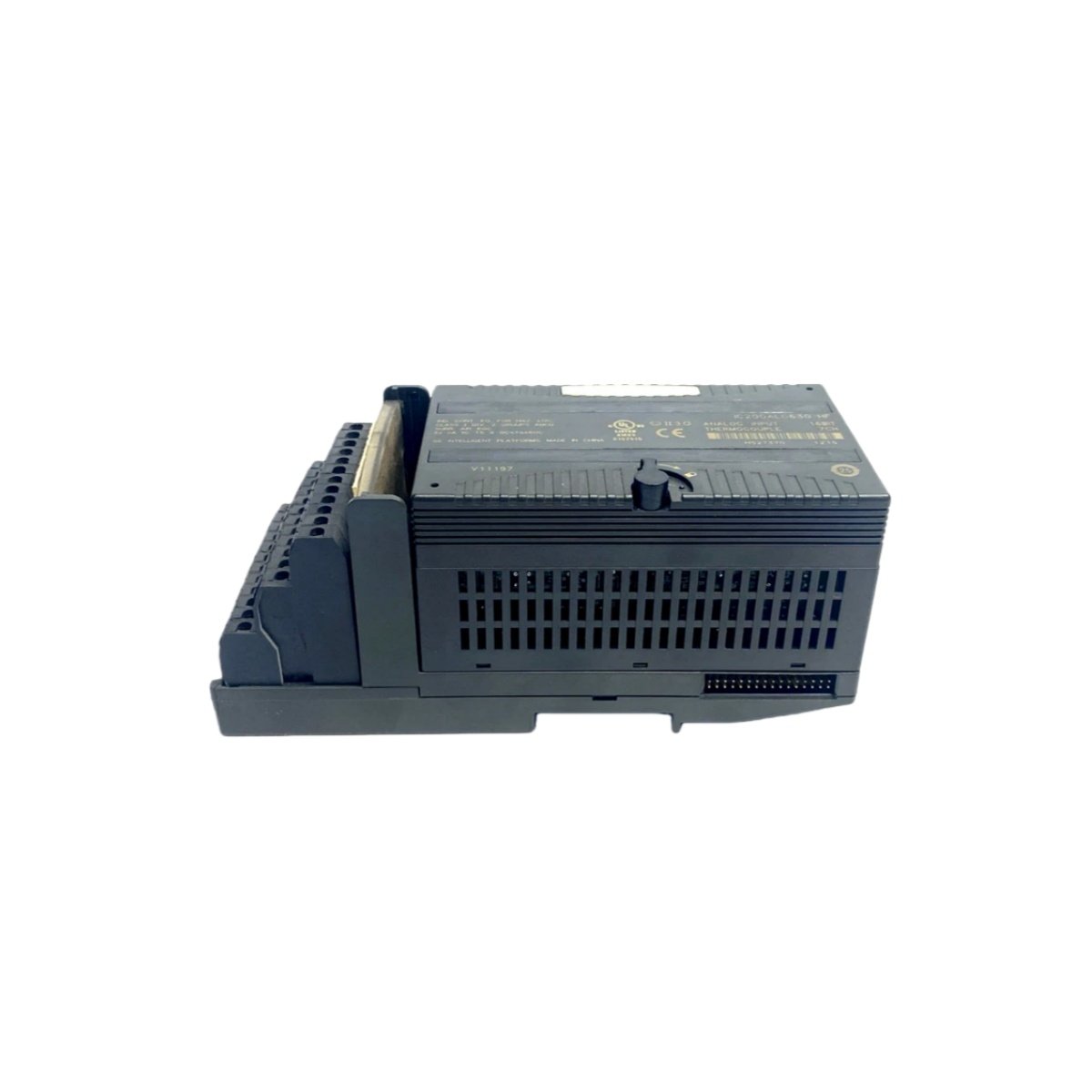

This thermocouple input module provides precise temperature measurement for GE Fanuc control systems. The IC200ALG630 accepts signals from standard thermocouple types directly without external signal conditioning. It converts thermocouple millivolt signals into engineering units for process monitoring and control. Process engineers choose this module for its accuracy and reliable cold junction compensation. Its compact design fits seamlessly into the VersaMax I/O platform.

Technical Specifications Summary

Thermocouple Compatibility and Input Range

The module accommodates eight different thermocouple types for universal temperature measurement. It supports J, K, T, E, R, S, B, and N types per IEC 584 standards. Each channel handles input voltages from -50 millivolts to +50 millivolts typically. The IC200ALG630 automatically identifies the selected thermocouple type per channel. Users configure each input independently for different thermocouple types as needed. This flexibility suits applications with multiple temperature measurement requirements. The module’s high input impedance exceeds 10 megohms for minimum signal loading. Consequently, it preserves signal integrity even with long thermocouple lead wires.

Precision Conversion and Measurement Accuracy

The module features 16-bit analog-to-digital conversion for precise temperature readings. Resolution reaches 0.25 degrees Celsius for most common thermocouple types. Overall accuracy measures ±0.5 degrees Celsius plus cold junction compensation errors. A built-in cold junction compensation sensor resides on the terminal block. This sensor measures the reference junction temperature for accurate absolute readings. The module performs automatic linearization using polynomial algorithms for each thermocouple type. It compensates for ambient temperature changes affecting the reference junction. These features deliver reliable temperature data across varying plant conditions.

Digital Filtering and Noise Rejection

Industrial environments introduce electrical noise that affects thermocouple measurements significantly. The module incorporates digital filtering to attenuate 50 and 60 Hz interference. Common mode rejection reaches 100 dB minimum for excellent noise immunity. The IC200ALG630 also includes normal mode rejection for line frequency noise. Users configure the update rate to balance speed with noise suppression requirements. The module can average multiple samples for additional signal smoothing. This feature proves especially valuable in electrically noisy environments like motor control centers. Consequently, the module maintains measurement stability even in challenging plant areas.

Diagnostics and Open Circuit Detection

For system reliability, the module performs continuous self-diagnostics on all inputs. It automatically detects open thermocouple circuits and reports the condition immediately. An open circuit on any channel triggers a diagnostic flag for operator notification. The module checks each channel for input signals outside normal operating ranges. It also monitors the cold junction compensation sensor for proper function. Front-panel LEDs indicate channel status and fault conditions at a glance. These diagnostic features simplify troubleshooting and reduce maintenance time significantly.

Physical Design and Installation

The module features a compact form factor for space-efficient control cabinets. It measures 110 millimeters in height, 55 millimeters in width, and 75 millimeters in depth. The unit weighs only 0.2 kilograms for easy handling and installation. Power consumption reaches just 2.5 watts from the 5 V DC backplane supply. The module mounts directly on the VersaMax I/O carrier for simple assembly. A removable terminal block accepts solid or stranded thermocouple wire connections. The terminal block includes a dedicated cold junction sensor for accurate compensation.
