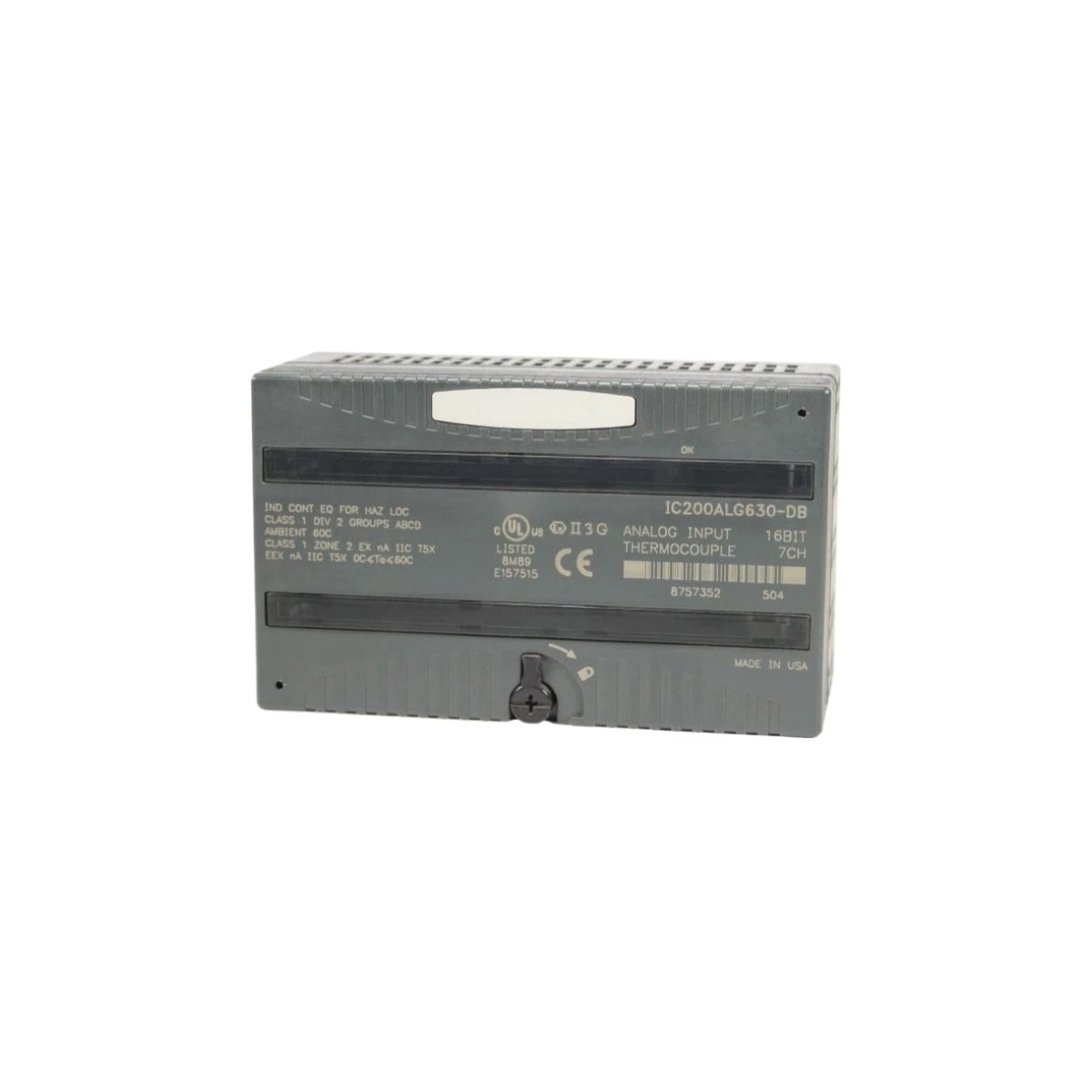

The IC200ALG630-DB analog input module captures thermocouple signals for GE VersaMax control systems. This unit converts low-level temperature readings into precise digital values. Engineers depend on it for accurate thermal monitoring in industrial processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Analog Input Thermocouple Module |
| Compatibility | GE VersaMax PLC Systems |
| Input Channels | 7 Thermocouple Inputs |
| Thermocouple Types | J, K, T, E, N, R, S, B |
| Resolution | 16-Bit |
| Interface | Backplane Bus Connector |
| Dimensions | 110 mm x 66 mm x 100 mm |
| Weight | Approximately 0.30 kg |
| Component Count | 44 Active Electronic Components |
| Energy Storage | None Required |
| Power Consumption | 5 VDC at 0.4 A |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Input Performance and Accuracy
The module offers seven differential channels for thermocouple measurement tasks. Therefore, it reads multiple temperature points from a single compact unit. Furthermore, 16-bit resolution captures small temperature changes with high fidelity. Consequently, processes stay within tight thermal tolerances.
Thermocouple Support
The unit accepts J, K, T, E, N, R, S, and B thermocouple types. Moreover, internal cold-junction compensation maintains reading accuracy across ambient shifts. As a result, the IC200ALG630-DB suits diverse temperature sensing applications.
Interface and Integration
A backplane connector links the module directly to the VersaMax rack. Therefore, data transfers to the CPU without external signal wiring. Additionally, front-panel indicators show channel status and fault conditions.
Power and Installation
The module draws 5 VDC at 0.4 A from the system power supply. Operators snap it into a standard VersaMax slot for quick commissioning. However, users should verify thermocouple wiring polarity before powering the rack.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
