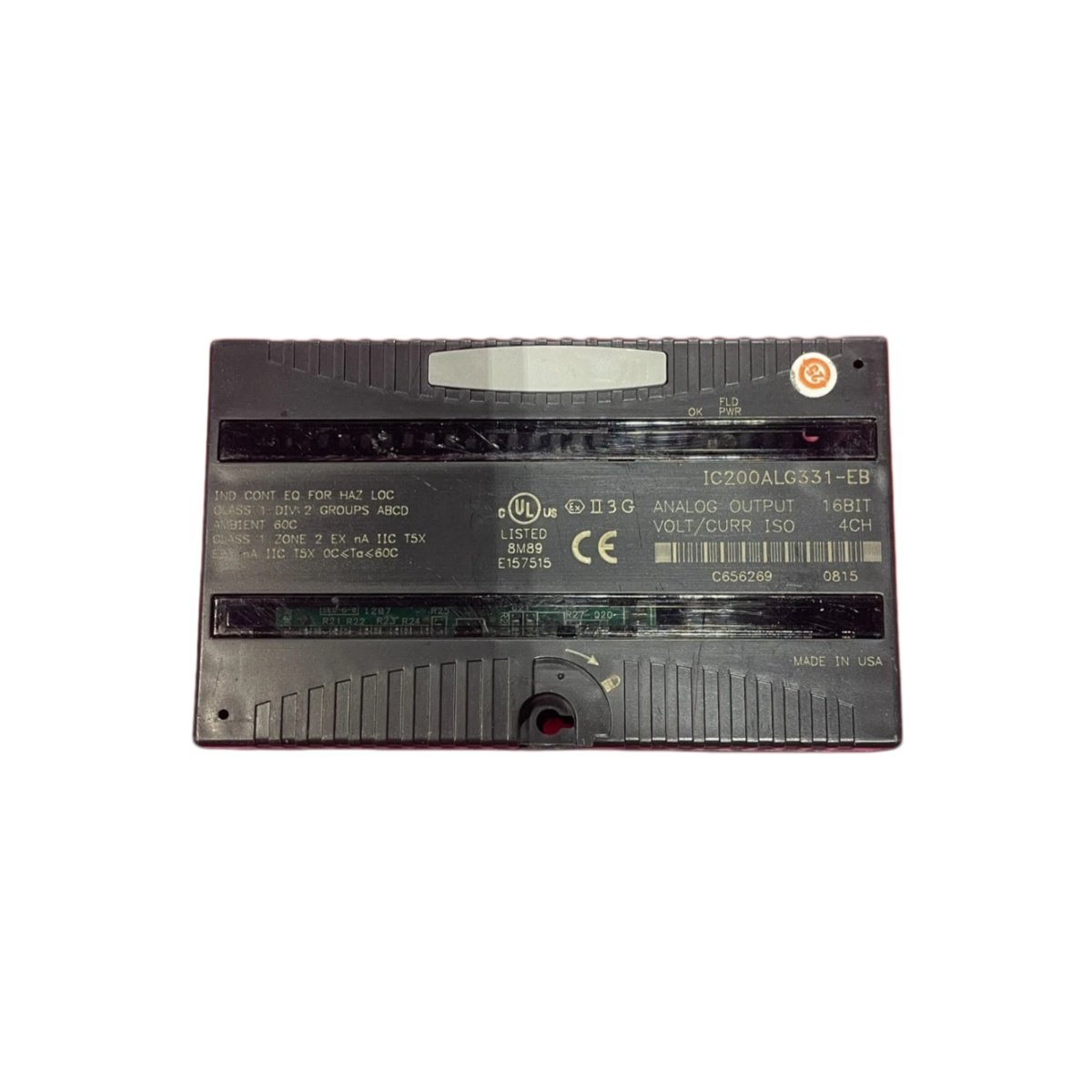

The IC200ALG331-EB delivers precise analog output signals within GE Fanuc’s VersaMax PLC platform. This module occupies a single slot and measures roughly 4.3 inches tall, 1.7 inches wide, and 2.4 inches deep. Furthermore, it weighs about 0.4 pounds, so dense panel layouts remain practical. Engineers rely on the IC200ALG331-EB for accurate current and voltage control in process applications.
Technical Specifications and Interface Details
The module provides four independent output channels, and each channel supports both current and voltage ranges. Specifically, operators can select 4–20 mA, 0–20 mA, 0–10 V, and ±10 V configurations. Additionally, 12-bit resolution ensures smooth signal delivery across the full range. A removable terminal block simplifies field wiring and module replacement.
| Parameter | Specification |
|---|---|
| Module Type | Analog Output Block |
| Channels | 4 independent outputs |
| Output Ranges | 4–20 mA, 0–20 mA, 0–10 V, ±10 V |
| Resolution | 12-bit |
| Dimensions | 4.3 x 1.7 x 2.4 in |
| Weight | ~0.4 lbs |
| Interface | VersaMax backplane |
| Terminal Block | Removable, screw-type |
| Power | 24 VDC nominal |
Energy Storage and Signal Stability
Internal capacitors on the IC200ALG331-EB store energy locally and therefore stabilize output voltage. Consequently, the module resists ripple and maintains accuracy during load changes. This buffering proves valuable in closed-loop control environments. The design also limits drift across extended operating cycles.
Installation and Compatibility Notes
Because the IC200ALG331-EB snaps directly onto the VersaMax backplane, installation requires no special tools. The module communicates quickly with the host CPU through the parallel bus. Moreover, diagnostic LEDs indicate channel status during commissioning. Technicians can hot-swap units in compatible racks with minimal downtime.
