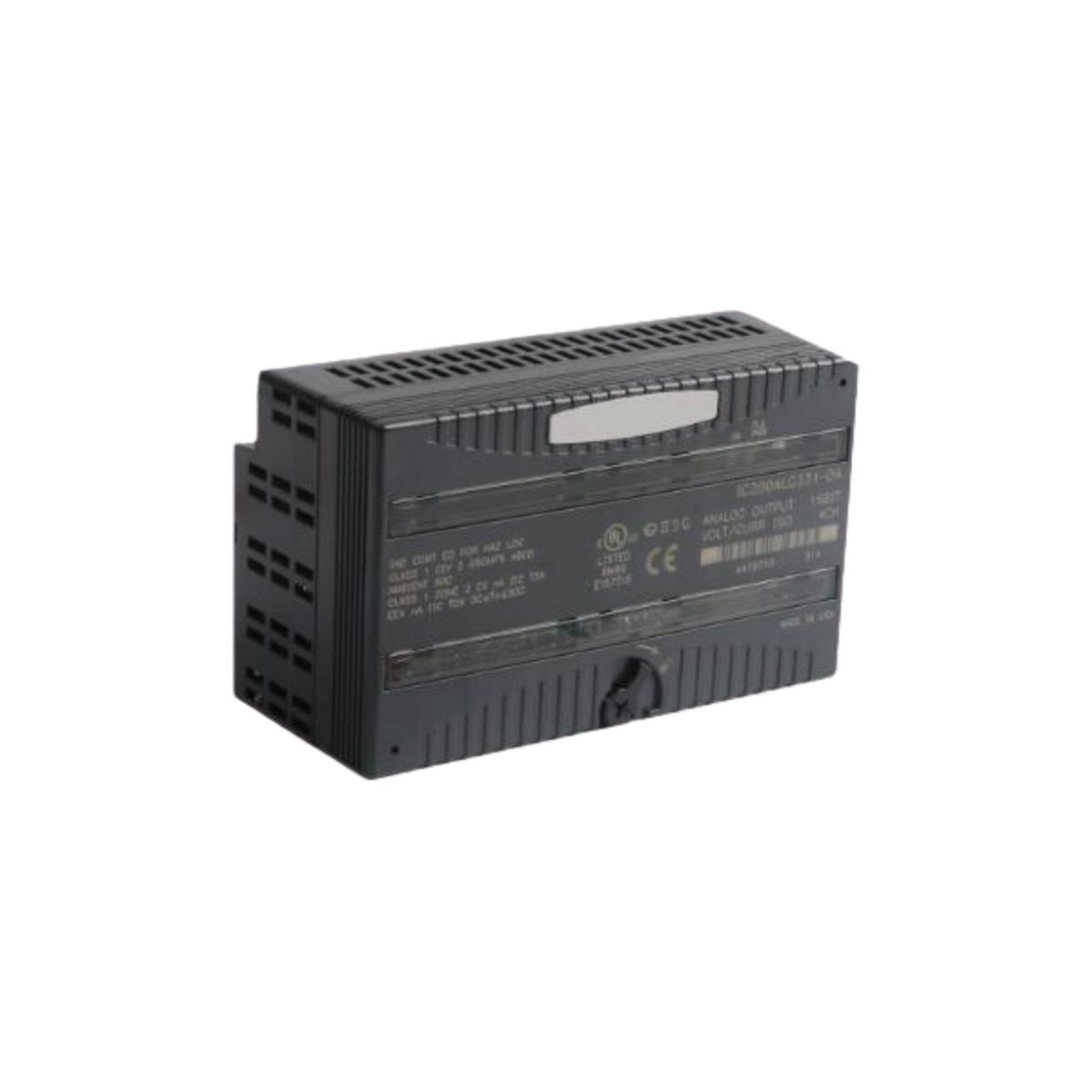

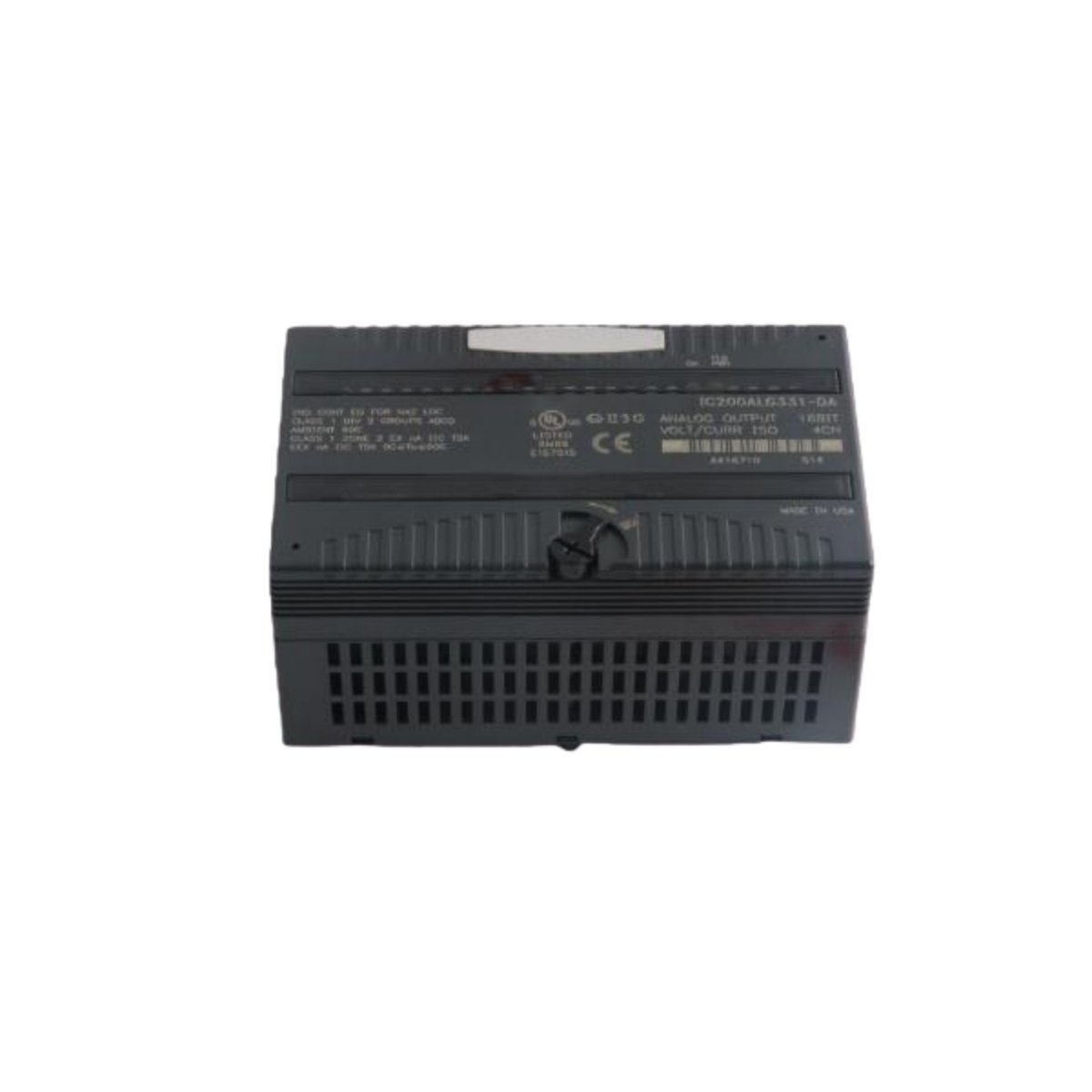

This analog output module provides precise control signals for actuators in GE Fanuc VersaMax systems. The IC200ALG331 converts digital commands into analog signals for valves, dampers, and drives. It delivers stable 4-20 mA or 0-10 V outputs with high resolution. Process engineers choose this module for reliable field device control in continuous processes. Its compact form factor saves space in crowded I/O cabinets.

Technical Specifications Summary

Output Configuration and Channel Flexibility

The module features four independently configurable analog output channels. Each channel supports either 4-20 mA current loops or 0-10 V voltage outputs. Users configure each channel individually through software settings for maximum flexibility. The IC200ALG331 handles both current and voltage outputs on the same module simultaneously. Current outputs drive loads from 0 to 600 ohms for typical valve actuators. Voltage outputs require a minimum load of 2 kilohms for stable operation. This flexibility reduces spare inventory and simplifies system design significantly.

Resolution and Accuracy Performance

The module delivers high-resolution output signals for precise process control applications. Voltage outputs achieve 15-bit resolution for exceptional fine control capability. Current outputs provide 12-bit resolution, suitable for most industrial actuators. Accuracy reaches ±0.1% of full scale at 25 °C ambient temperature. Temperature drift stays within ±50 parts per million per degree Celsius. The IC200ALG331 maintains signal integrity over the full operating range. These specifications ensure accurate, repeatable control of critical process parameters.

Fast Response and Update Capability

The module responds quickly to control commands for dynamic process applications. Output update rates reach 2 milliseconds per channel for fast response. The module scans all 4 channels within a total of 8 milliseconds. Step response time reaches 95% of final value in under 1 millisecond. This speed suits applications requiring rapid valve and damper positioning. The IC200ALG331 refreshes outputs synchronously for coordinated control. Consequently, it supports demanding applications like pressure control and flow regulation effectively.

Output Protection and Fault Diagnostics

The module incorporates comprehensive protection features for reliable operation. Each output includes short-circuit and overcurrent protection against field faults. The IC200ALG331 detects open circuits in current loop configurations automatically. Fault detection triggers an alarm to the host controller for operator notification. LED indicators on the front display channel status and fault conditions clearly. Users can monitor each output individually for quick troubleshooting. The isolation of 1500 V RMS protects the PLC backplane from field-side transients.

Mechanical Construction and Installation

This VersaMax module features a compact, lightweight design for easy installation. It measures 110 millimeters high, 55 millimeters wide, and 75 millimeters deep. The unit weighs only 0.2 kilograms for straightforward handling. The module draws 200 milliamperes from the +5 V DC backplane supply. It requires an external 24 V DC power source for field output operation. A removable terminal block accepts 22-14 AWG wire for field connections. The module mounts directly onto the VersaMax I/O carrier without additional hardware.

Environmental Tolerance and Reliability

Industrial environments demand stable performance under varying temperature conditions. The IC200ALG331 operates reliably from 0 °C to 55 °C ambient temperatures. Storage temperatures extend from -40 °C to 85 °C for shipping protection. Humidity tolerance covers 5% to 95% without condensation affecting the circuits. Conformal coating on the circuit board resists moisture and airborne contamination. These features ensure consistent output performance through the module’s service life.
