8-Channel Analog Output Module for VersaMax Systems

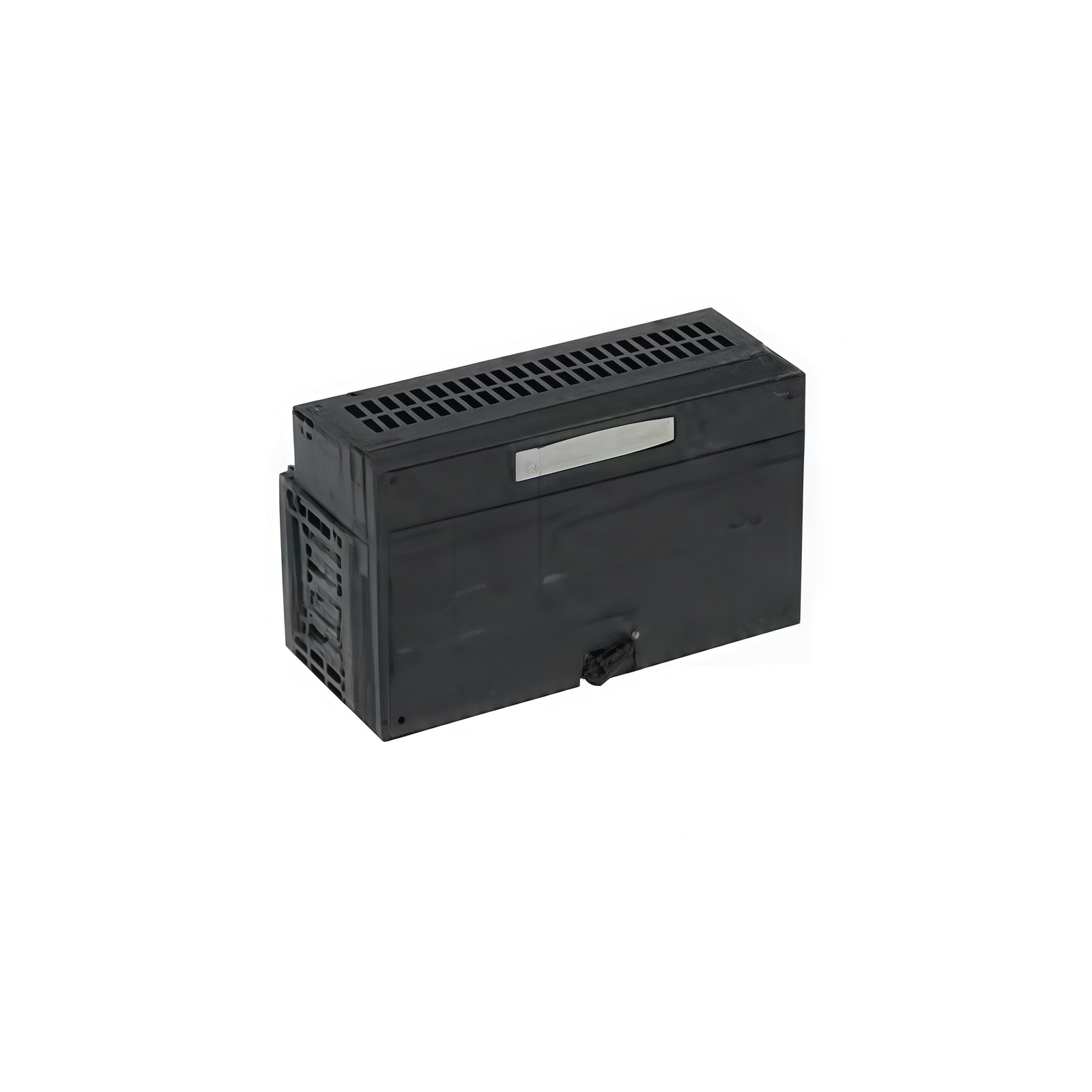

The GE IC200ALG331-AA functions as an analog output module within the VersaMax distributed I/O platform. This module converts digital values from the controller into proportional analog signals for field actuators. Its 8-channel design supports precise control of valves, drives, and instrumentation.

Output Configurations and Signal Ranges

This analog output module provides eight channels with multiple output ranges. Users can configure each channel for 4-20 mA current or 0-10 VDC voltage output. The module delivers 12-bit resolution for accurate signal generation and process control. Furthermore, the module requires 24 VDC loop power for current outputs. Consequently, this module supports diverse field device requirements.

Diagnostic and Protection Features

The IC200ALG331-AA includes per-channel status indicators for real-time diagnostics. The module features automatic calibration for maintaining output accuracy over time. It also incorporates short-circuit protection for all output channels. Additionally, the module includes diagnostics for over-range and under-range conditions. For this reason, operators can quickly identify and resolve field issues.

Physical Specifications and Environmental Ratings

This analog output module mounts on a standard DIN rail. Its dimensions fit VersaMax rack slots for straightforward installation. The module draws 55 mA from the backplane supply plus an additional 15 mA from the +24 VDC supply . Furthermore, it operates reliably from 0 °C to 60 °C ambient temperature. Consequently, this module provides a compact output solution for VersaMax systems.
