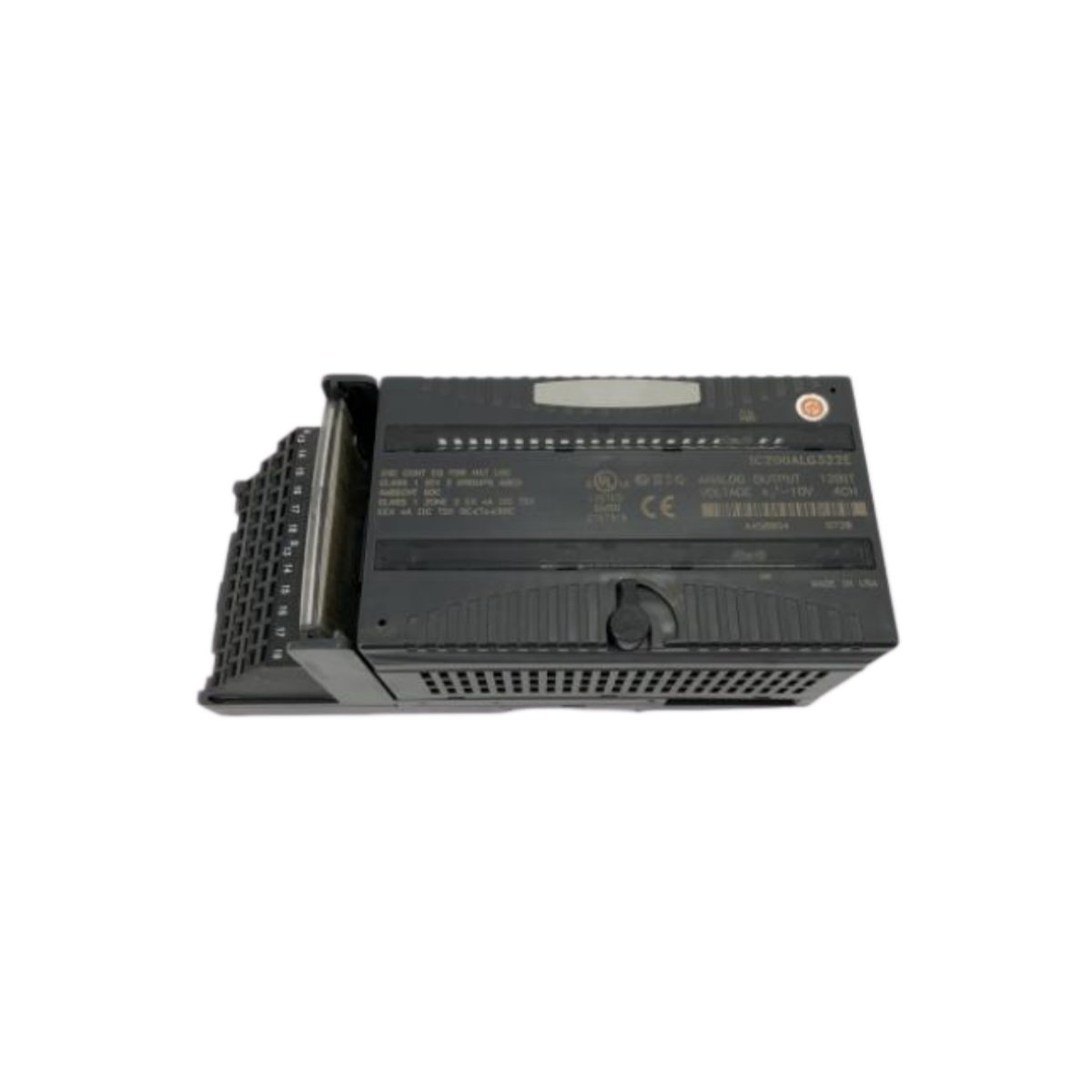

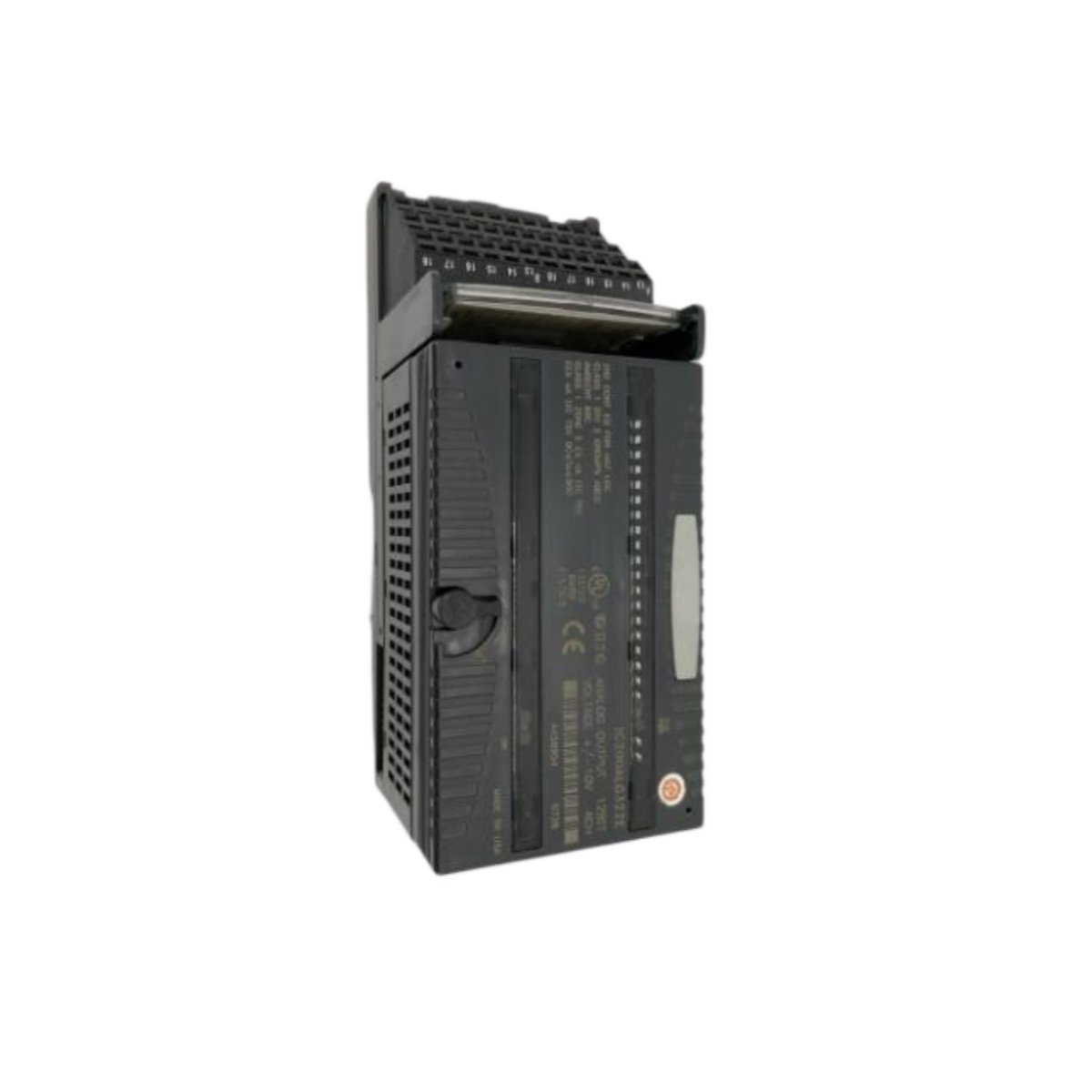

VersaMax Analog Output Module
The IC200ALG322 provides analog output capabilities for the GE VersaMax control platform. This module converts digital signals from the controller into precision analog values. It drives actuators, valves, and other field instruments. The unit includes multiple independent output channels for flexible system design.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE |
| Model | IC200ALG322 |
| Category | Analog Output Module |
| System Compatibility | VersaMax Series |
| Output Channels | Offers 4 independent analog outputs |
| Output Type | Provides 4-20 mA current outputs |
| Resolution | Delivers 15-bit plus sign |
| Accuracy | Maintains ±0.2% of full scale |
| Output Load | Supports up to 600 Ω per channel |
| Conversion Rate | Updates every 10 ms |
| Power Supply | Draws +5 Vdc at 200 mA |
| Loop Power | Requires external 24 Vdc supply |
| Isolation | Offers 1500 Vac channel isolation |
| Diagnostics | Includes short-circuit detection |
| Operating Temperature | Functions from 0°C to +60°C |
| Storage Temperature | Withstands -40°C to +85°C |
| Dimensions | Measures 110.0 mm x 70.0 mm x 30.0 mm |
| Weight | Weighs approximately 0.25 kg |
| Mounting | Plugs into VersaMax terminal bases |
| Compliance | Meets CE, UL, and CSA standards |
Analog Signal Generation
This module generates precise 4-20 mA current signals for controlling field devices. It accepts digital setpoints from the controller and converts them accurately. The module also provides excellent stability over temperature variations. Moreover, it includes short-circuit protection to prevent damage from wiring faults. The unit’s high resolution ensures fine control of connected actuators.
Installation and Configuration
First, mount the IC200ALG322 onto the VersaMax terminal base. Ensure the module locks securely into position. Next, connect the field wiring to the designated output terminals. After that, apply power and observe the module status indicators. You can then configure the output scaling through the programming software.
Maintenance and Operational Reliability
This module includes diagnostic functions to detect output shorts and open circuits. Therefore, you can quickly identify any wiring or device issues. We recommend you verify the output currents against known values periodically. You should also inspect the terminal connections for tightness during routine maintenance.
