Functional Overview

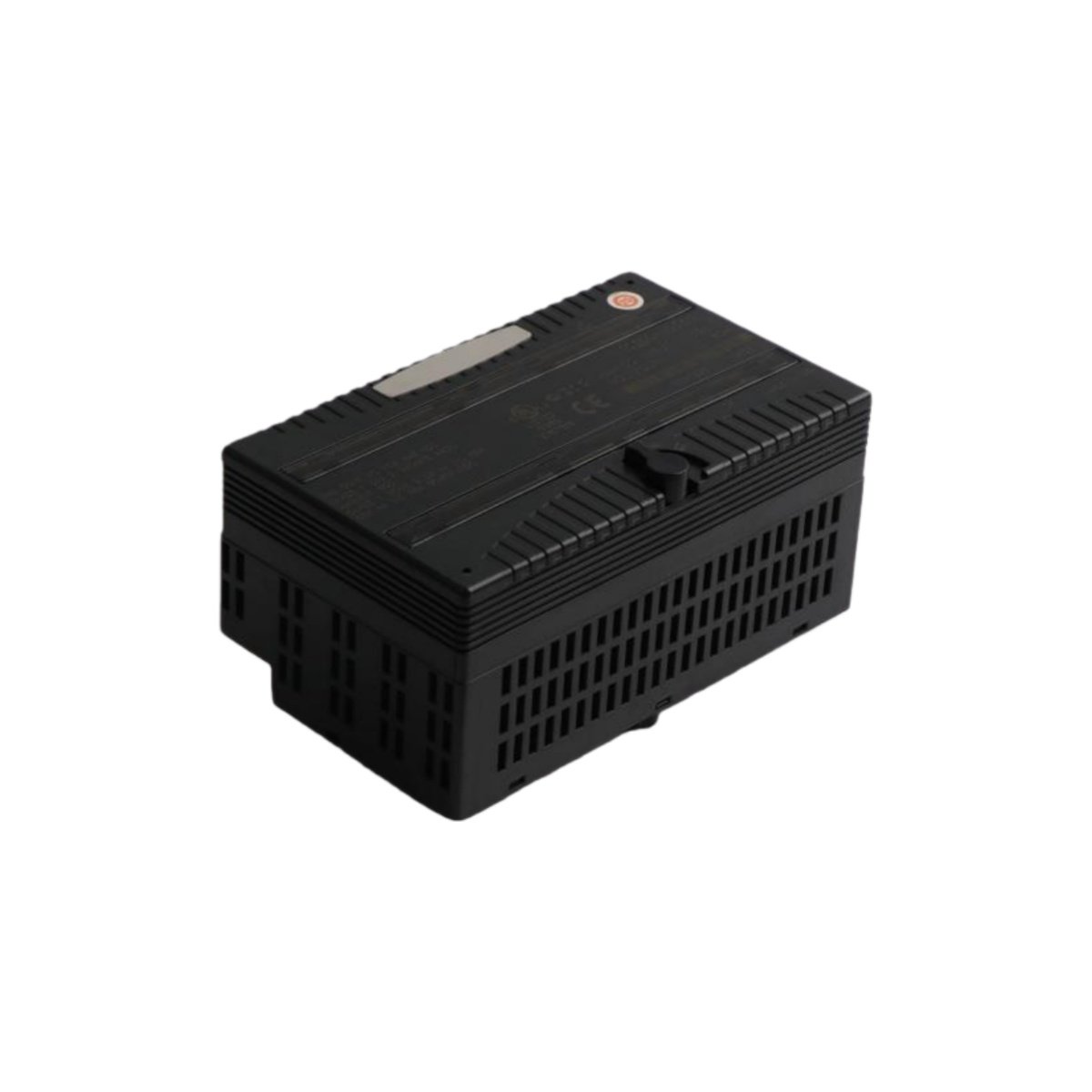

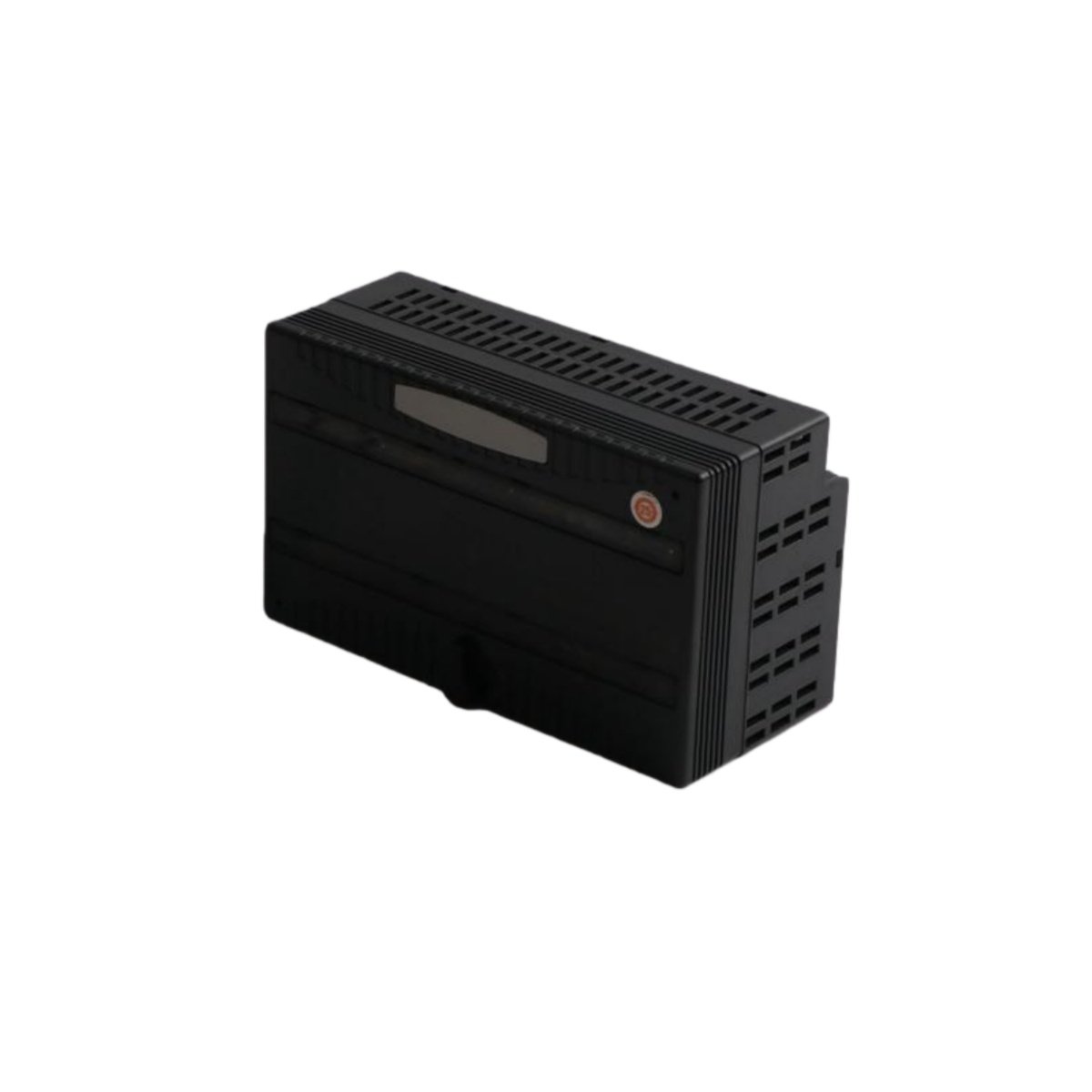

The IC200ALG260 delivers eight isolated analog input channels for the GE VersaMax I/O system. Each channel accepts either 0-20 mA or 4-20 mA current signals. It also supports 0-10 VDC voltage inputs with user-selectable ranges. The module converts these analog signals into 16-bit digital values. Consequently, it provides high-resolution data to the PLC processor for control decisions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Series | VersaMax |
| Category | Analog Input Module |
| Part Number | IC200ALG260 |
| Number of Inputs | 8 (isolated) |
| Input Signal Types | 0-20 mA, 4-20 mA, 0-10 VDC |
| Resolution | 16 bits (1.0 mV or 1.0 µA per count) |
| Accuracy | ±0.1% of full scale at 25°C |
| Input Impedance | 100 Ω (current mode), 50 kΩ (voltage mode) |
| Update Rate | 12 ms (all channels simultaneously) |
| Isolation Voltage | 1500 VAC (channel-to-backplane) |
| Power Draw | 180 mA at 5 VDC; 80 mA at 24 VDC |
| Dimensions | 7.5 cm x 6.5 cm x 11.4 cm |
| Weight | 0.19 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Configuration Flexibility
The IC200ALG260 allows independent range selection for each input channel. You can mix current and voltage inputs on a single module. This feature maximizes versatility and reduces module count. Additionally, the module offers software-selectable filter settings. The filter eliminates high-frequency noise from industrial environments effectively.
Diagnostic Features
The IC200ALG260 provides extensive diagnostic capabilities for reliable operation. It performs open-wire detection on every input channel. The module also monitors over-range and under-range conditions continuously. A status LED indicates overall module health clearly. Furthermore, the unit stores calibration data in non-volatile memory.
Application Integration
This analog input module connects to the VersaMax backplane through a standard bus connector. Typical applications include flow monitoring, pressure sensing, and temperature measurement systems. The module supports both 2-wire and 4-wire transmitter configurations. Its compact form factor conserves precious cabinet space. The unit also permits hot-swapping for maintenance without system shutdown.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
