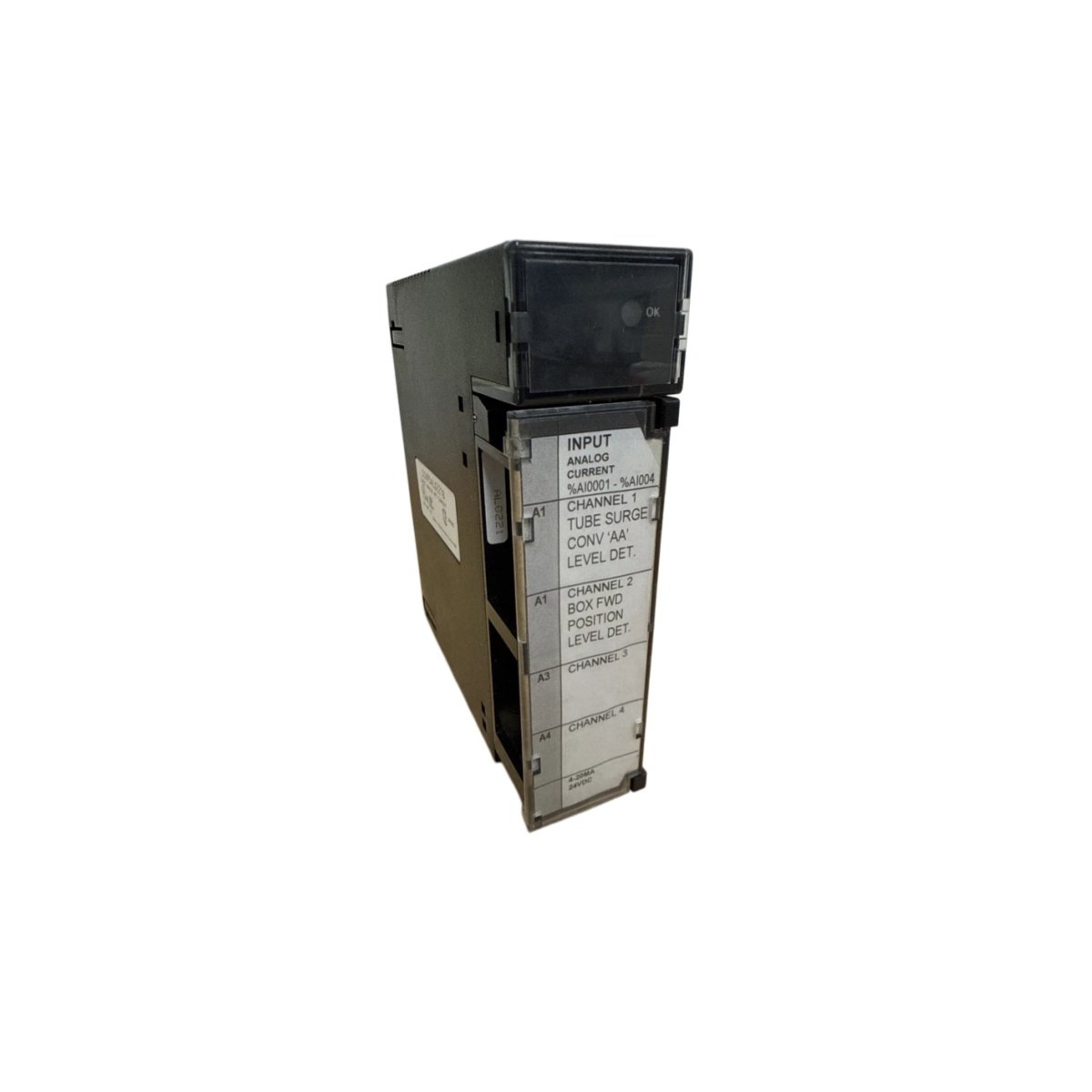

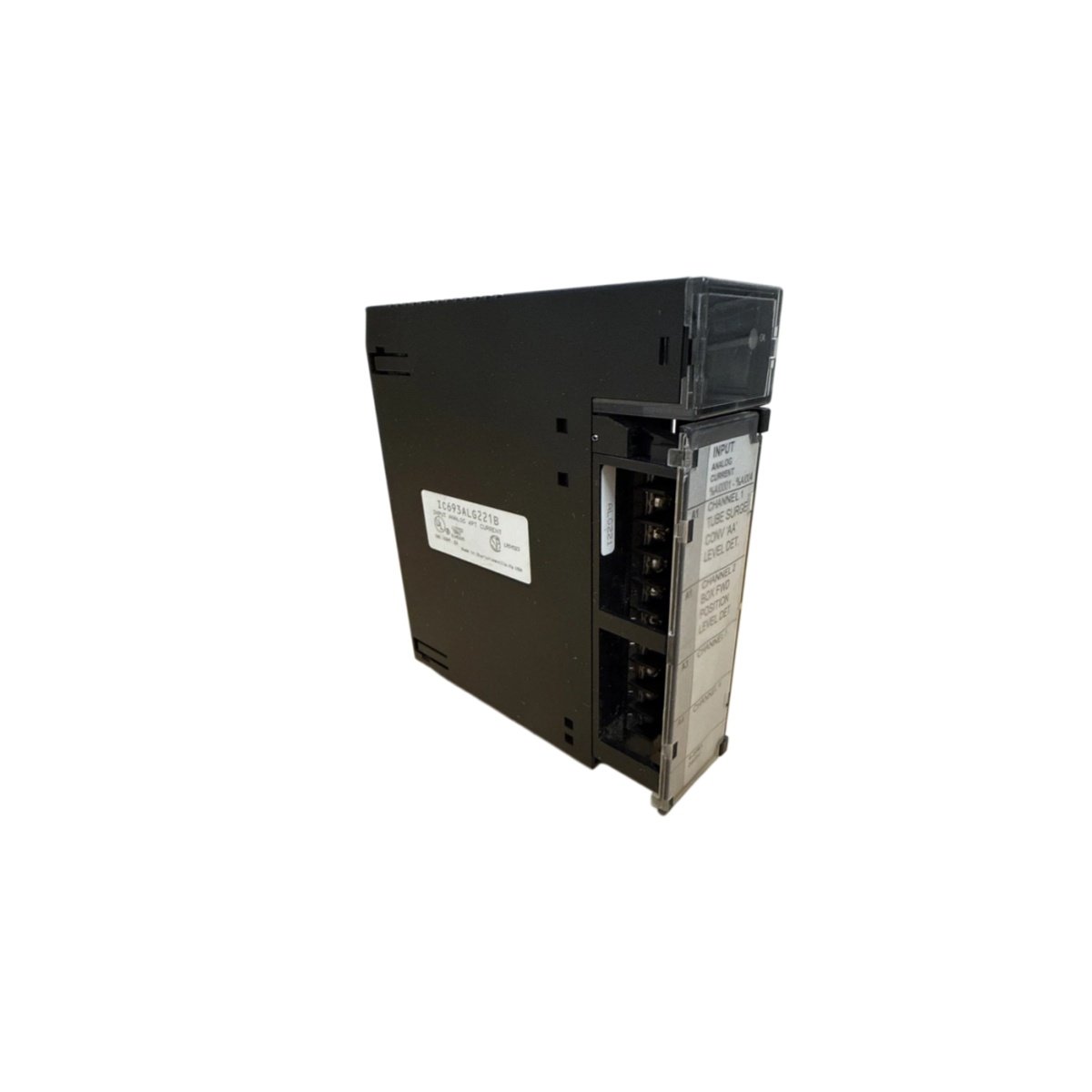

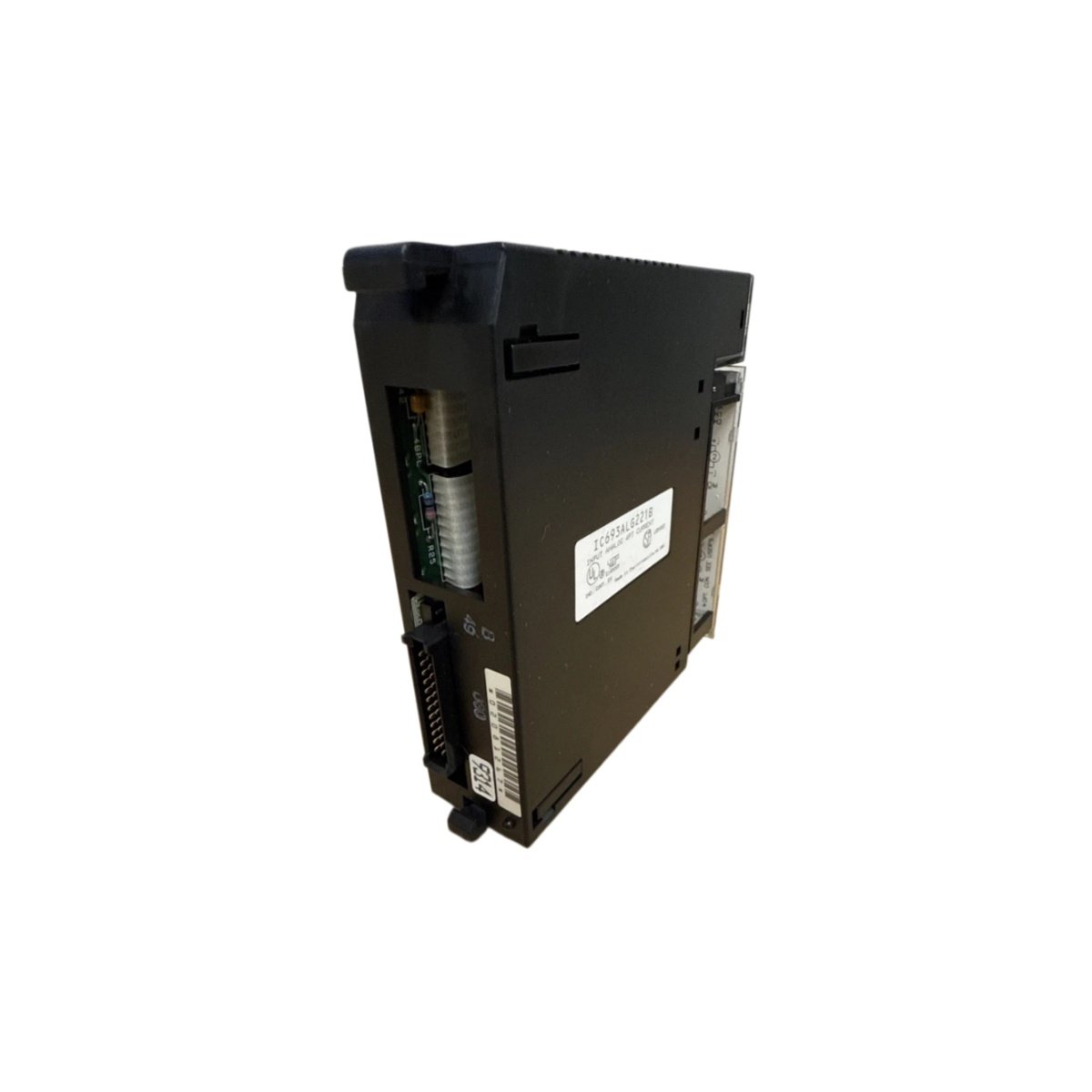

This GE Fanuc analog input module provides four differential current channels for precise signal acquisition. It converts 4-20 mA loop signals into digital data with a reliable 12‑bit resolution. Engineers can trust this module for consistent performance in demanding industrial environments. Its compact design fits easily into standard Series 90-30 PLC racks. The module streamlines wiring by using a single 24‑pin terminal block for all field connections.
Physical Dimensions and Mounting Details
The unit measures 5.5 inches in height and weighs roughly 0.75 pounds. This lightweight construction simplifies handling during installation and maintenance. Its narrow footprint saves valuable backplane space within crowded control cabinets. A locking mechanism secures the module firmly to the rack. This design ensures stable electrical contact and reduces vibration-related issues.
Signal Processing and Onboard Diagnostics
A built‑in digital filter effectively attenuates high‑frequency electrical noise from motors or drives. The module stores calibration and configuration data in onboard EEPROM memory. Each input channel includes independent overrange detection and open‑wire fault monitoring. These diagnostics alert operators immediately to any field wiring anomalies. The module achieves a complete conversion cycle in just 25 milliseconds per channel. This rapid processing supports time‑critical process control loops without delay.
Power Requirements and Environmental Resilience
The module draws a maximum of 100 mA from the +5 VDC backplane supply. It dissipates only 5 watts of power, thereby minimizing heat generation inside the enclosure. An onboard transient voltage suppressor guards the circuitry against unexpected surge events. The operating temperature range spans 0 to 60 degrees Celsius. This wide tolerance makes the module suitable for both climate‑controlled and moderately harsh factory floors.
Configuration Flexibility and System Integration
Configuration requires only straightforward software adjustments within the programming environment. Users can scale each channel independently to match specific engineering units. The module supports data transfer rates up to 115.2 kbps for efficient communication. Its firmware allows direct mapping of input data to controller memory addresses. This flexibility reduces programming effort and accelerates system commissioning.
Technical Specifications Overview
| Parameter | Detail |
|---|---|
| Model Number | IC693ALG221B |
| Input Type | 4 differential, current (4‑20 mA) |
| Resolution | 12 bits |
| Accuracy | ±0.25% of full scale at 25 °C |
| Conversion Time | 25 ms per channel |
| Input Impedance | 250 Ω |
| Backplane Current | 100 mA at +5 VDC |
| Power Dissipation | 5 W |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Isolation Voltage | 500 VDC (field to logic) |
| Terminal Type | 24‑pin removable block |
Details
| Weight | 0.65 kg |
|---|---|
| Dimensions | 140 × 110 × 75 mm |
