Core Power Distribution for VersaMax I/O Stations

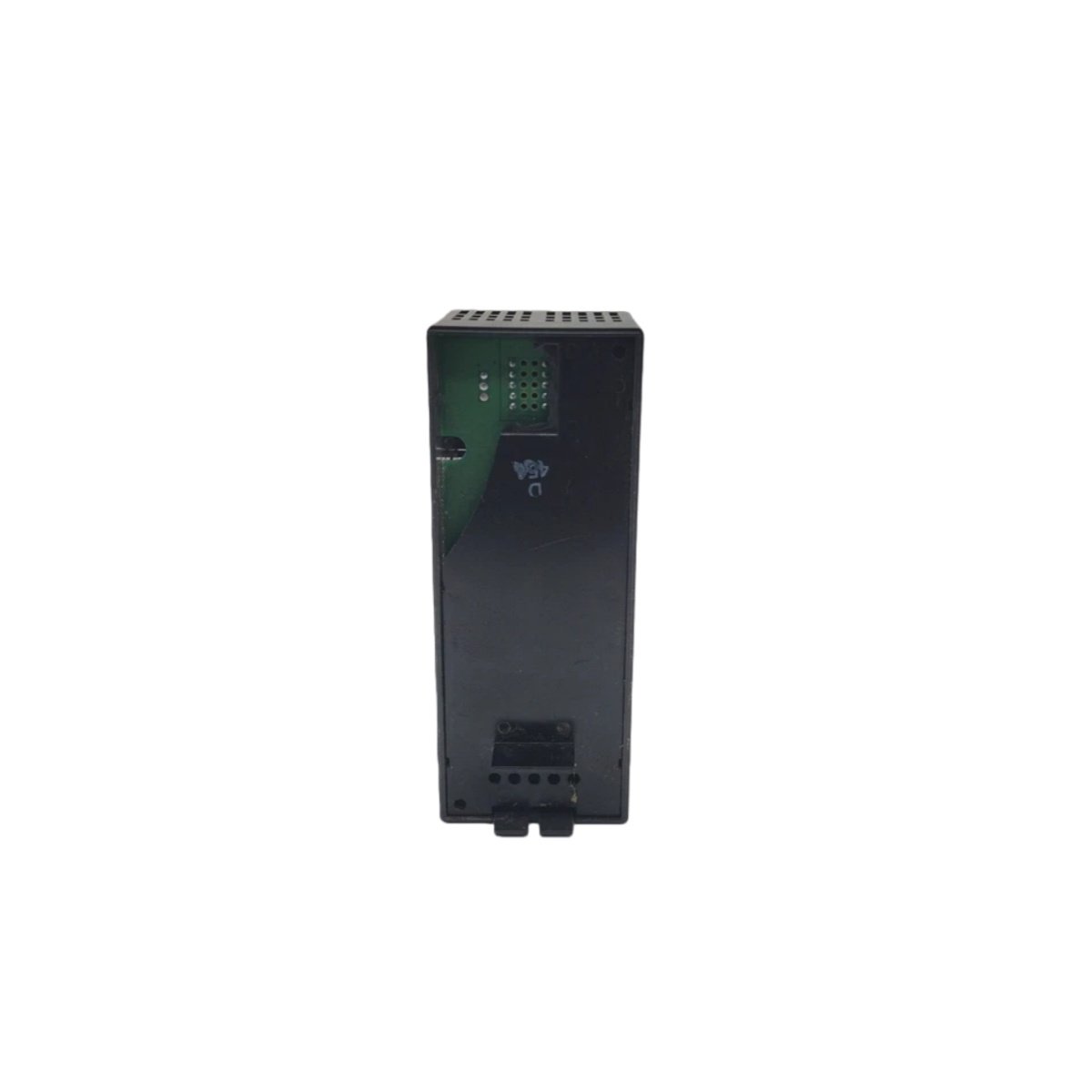

The GE Fanuc IC200PWR002 is an expanded power supply module for the VersaMax programmable logic controller platform . This unit provides 5 VDC and 3.3 VDC outputs to backplane devices such as I/O modules, CPUs, and Network Interface Units (NIUs) . It operates with a nominal 24 VDC input, accepting a wide range of 18 to 30 VDC . Consequently, it is a fundamental component for building scalable and reliable VersaMax control stations.

Flexible Operation as Primary or Secondary Power Source

This versatile module can function as the primary power source or as a supplementary power supply for larger systems . When you mount the module directly onto a CPU or NIU, it serves as the main power supply for the entire station . Alternatively, you can install it on a Power Supply Booster Carrier to provide supplemental power for expanded I/O applications . This dual functionality provides excellent flexibility for system design and expansion.

Technical Specifications and Protection Features

Engineered for robust performance, the IC200PWR002 includes comprehensive protection against short circuits, overloads, and reverse polarity . Its compact design features five screw-type terminals located on the bottom front panel for straightforward wiring . The following table details its complete electrical and physical parameters.

Application in System Integration

System integrators use this power supply module to ensure reliable power delivery in VersaMax-based control cabinets. The module’s screw terminals provide secure connections for both input power and grounding . Furthermore, its built-in protections guarantee the safety of the entire I/O station . Therefore, the GE Fanuc IC200PWR002 is a key component for maintaining system uptime in industrial automation.
