Reliable Discrete Output for CNC Systems

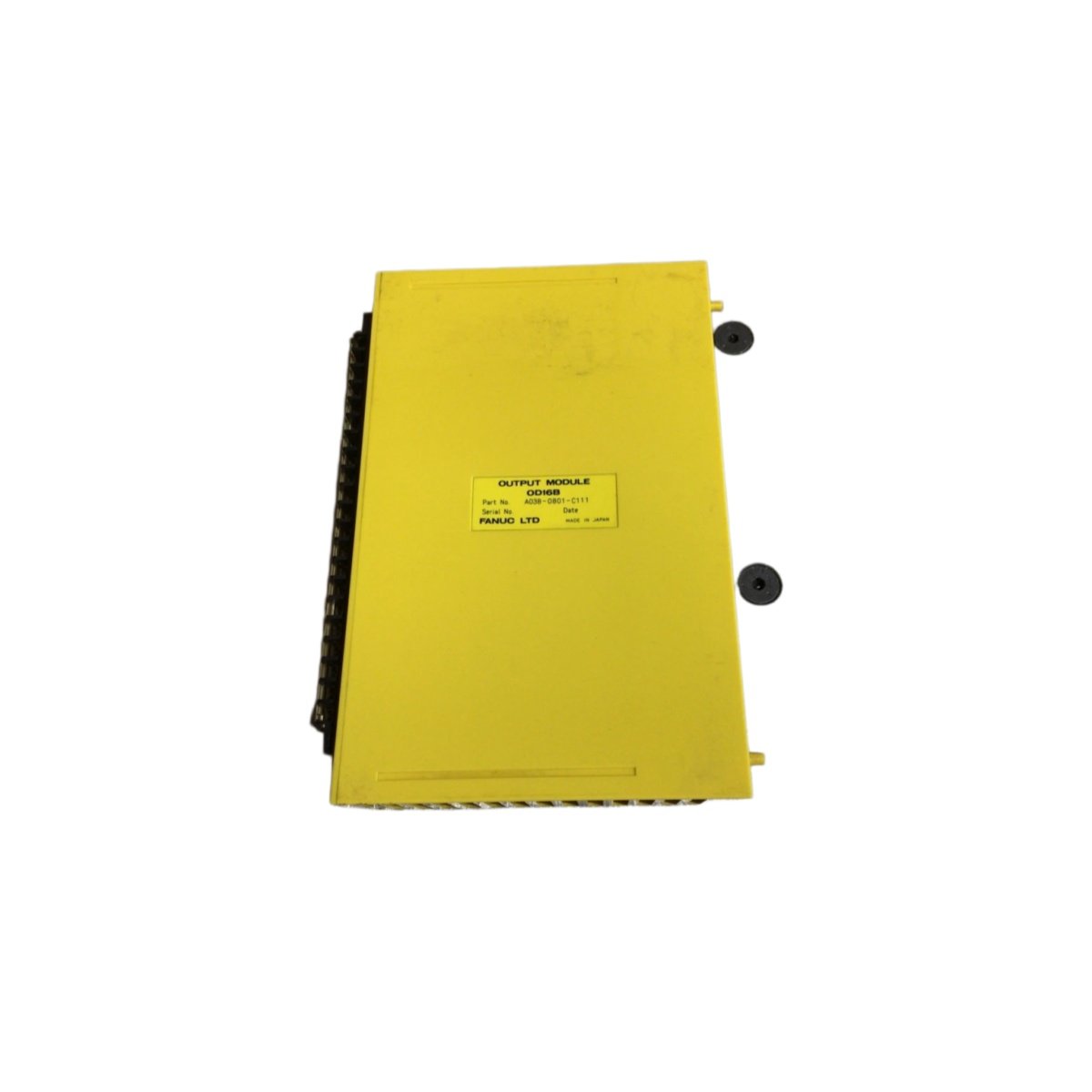

This digital output module provides robust control for actuators and indicators in CNC applications. The A03B-0801-C111 delivers 16 output points for flexible and efficient field management. It operates within the GE Fanuc Series 0/0i CNC systems. Each channel includes overcurrent protection for enhanced system reliability and safety. The module’s compact design enables high-density installation in CNC cabinets.

Technical Specifications and Physical Attributes

The A03B-0801-C111 operates on a nominal 24 V DC supply from the CNC backplane. It delivers 16 digital outputs with a maximum current of 0.5 A per channel. The module responds with an output delay of less than 1 ms for fast control execution. It isolates outputs in groups of 8 for efficient circuit organization. The unit measures approximately 105 mm in height and 35 mm in width. It weighs roughly 0.2 kg. Furthermore, the A03B-0801-C111 operates within a temperature range of 0 °C to 55 °C. Its status LEDs provide real-time diagnostics.

Installation and Application Guidance

This output module drives solenoids, contactors, and indicator lamps in CNC systems. First, insert the A03B-0801-C111 securely into the designated CNC rack slot. Then, connect the field wiring to the front connector according to the pin assignments. For inductive loads, always install suppression diodes across the outputs. Additionally, monitor the status LEDs for any fault conditions. The suits applications in machining centers, lathes, and milling machines.
