Technical Overview
The GE F31X139APMALG2 is a Micro Application Control Board specifically engineered for GE general-purpose drive systems, such as the DC-300 drive and related industrial control platforms . This board operates as part of the 531X series and serves as an alternate to the 531X139APMAXG2 variant . Its primary function involves managing application-specific control logic, making it a vital component for precise drive and spindle control in demanding industrial environments .

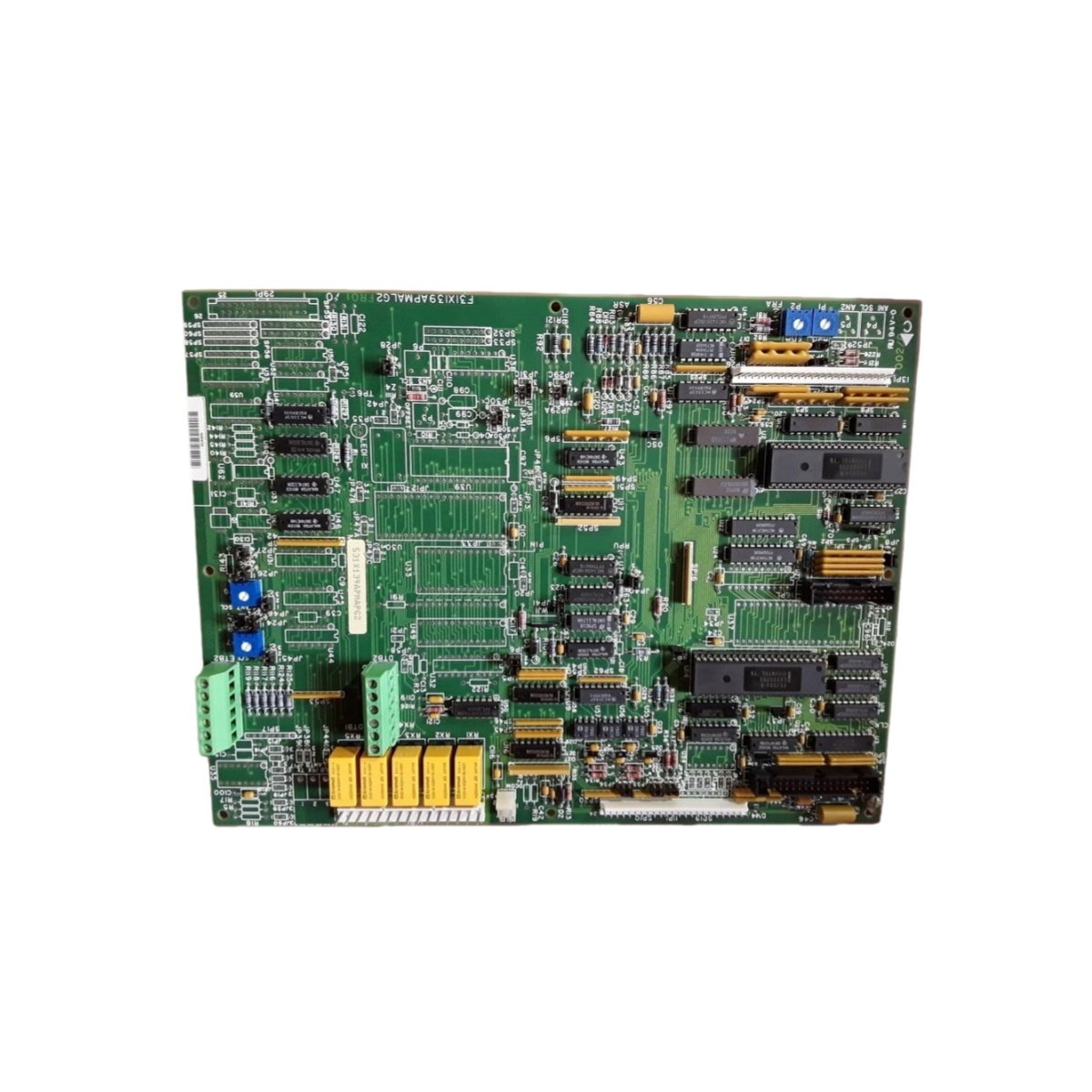

The board’s construction includes a substantial number of integrated circuits, five relays, four potentiometers, and over twenty-five resistor network arrays . It also provides a jumper switch for configuration and includes two terminal strips with screw connections for secure field wiring . The rugged design and use of high-quality components ensure reliable performance in the harsh conditions typical of industrial settings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model Number | F31X139APMALG2 |
| Alternate Number | 531X139APMAXG2 |
| Product Type | Micro Application Control Board / Drive Board |
| System Compatibility | DC-300 Drive, General Purpose Drive Systems |
| Series | 531X |
| Dimensions | 46.8 x 31.7 x 6 cm |
| Weight | 1.0 kg to 3.3 kg |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Key Components | 5 Relays, 4 Potentiometers, 25+ Resistor Arrays, Jumper Switch |
| Connectors | 2 Terminal Strips, Vertical Pin Cable Connectors |
| Energy Storage | 100 Capacitors |
| Country of Origin | USA |
Key Features
Drive System Integration – The GE F31X139APMALG2 interfaces directly with GE DC-300 and similar general-purpose drive systems, acting as a micro-application controller for enhanced functionality .
High Component Density – The board features a dense population of components, including five relays, four potentiometers, and numerous resistor network arrays, to support complex control logic .
Robust Design – This board operates reliably across a wide temperature range from -40°C to +85°C and features an industrial-grade construction built to withstand harsh factory floor environments .
Flexible Connectivity – It provides multiple connection points, including two terminal strips and vertical pin cable connectors, simplifying integration with other system components .
Energy Storage Capacity – The board contains 100 capacitors to store electrical energy, which helps ensure stable power delivery for consistent operation .
Applications
The GE F31X139APMALG2 is ideal for industrial drive systems, including spindle drives for CNC machinery and DC-300 general-purpose drives . It also serves in other industrial applications requiring advanced control and monitoring capabilities .
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
