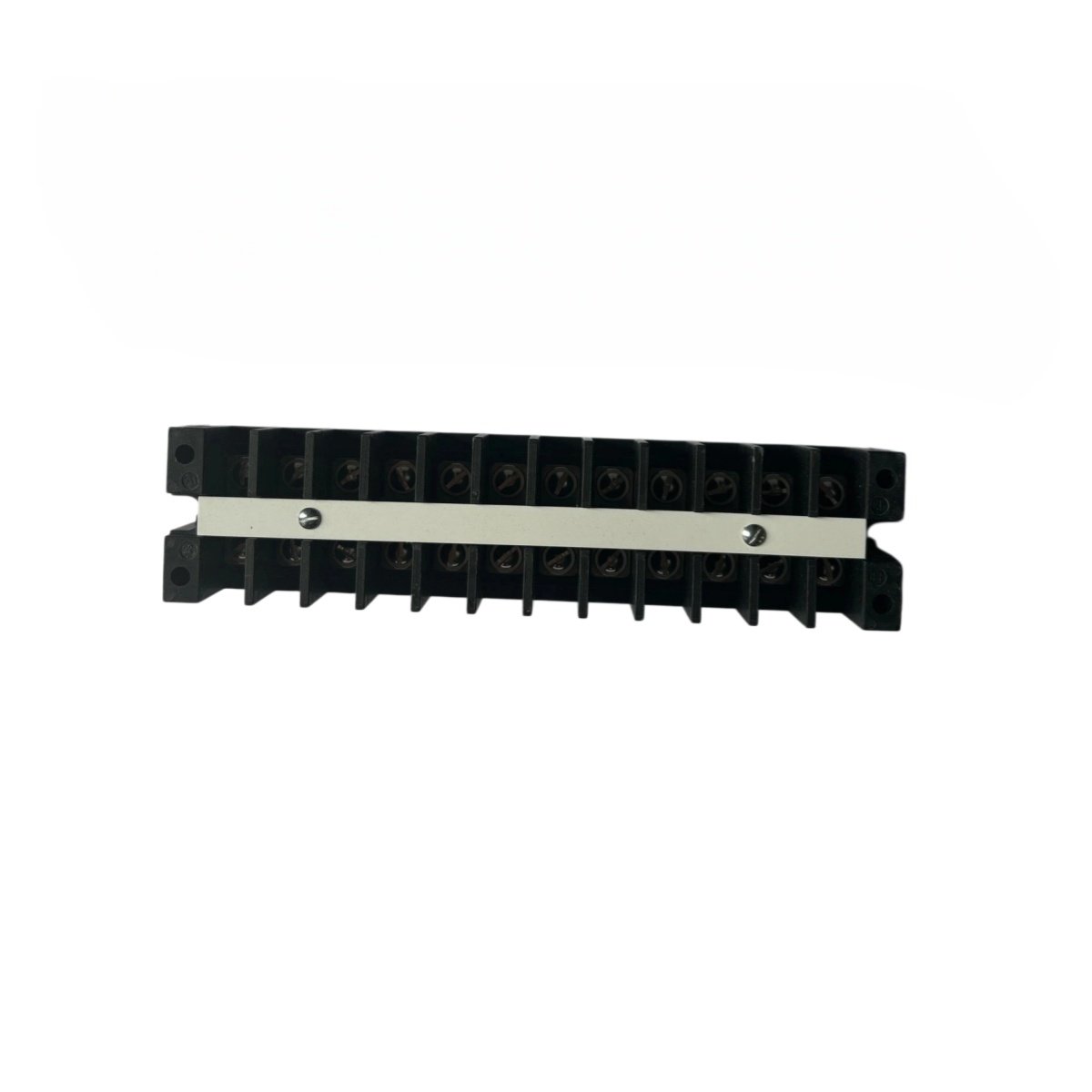

12-Point Screw Terminal Interface for GE Drive Control Systems
The EB27B12SC serves as a dedicated terminal board within GE’s industrial drive and control hardware family. Engineers deploy this interface panel to route field wiring to the main controller card cage. Consequently, the board simplifies installation and maintenance by providing clearly labeled termination points.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | EB27B12SC |
| Manufacturer | General Electric (GE) |
| Product Type | Terminal Board |
| Termination Points | 12 Screw Terminals |
| Connector Type | Screw Clamp, Field Wiring |
| Mounting | Panel / Chassis Mount |
| Signal Type | Analog and Discrete Signals |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | Up to 95% (Non-Condensing) |
| Weight | 0.5 kg (Approximate) |
Board Function and Wiring
This terminal board accepts field wiring through twelve individual screw clamps. Each terminal carries analog or discrete signals between sensors and the host controller. Therefore, the EB27B12SC reduces wiring errors during commissioning and troubleshooting. Clearly numbered positions also speed up cable tracing during maintenance.
System Integration
Engineers mount this board on a panel or chassis near the drive cabinet entry point. Shielded cable runs connect the terminals directly to the controller backplane. Additionally, the board pairs with GE drive and excitation control platforms. Proper torque on each screw clamp prevents loose connections and intermittent faults.
Application and Service Notes
Operators use this terminal board across turbine control, generator excitation, and industrial drive systems. Engineers must verify compatibility with their specific control platform before ordering. Furthermore, the EB27B12SC suits retrofit and replacement projects where original terminal boards have aged. Qualified technicians should perform all wiring work with power removed from the cabinet.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 278 × 194 × 42 mm |
