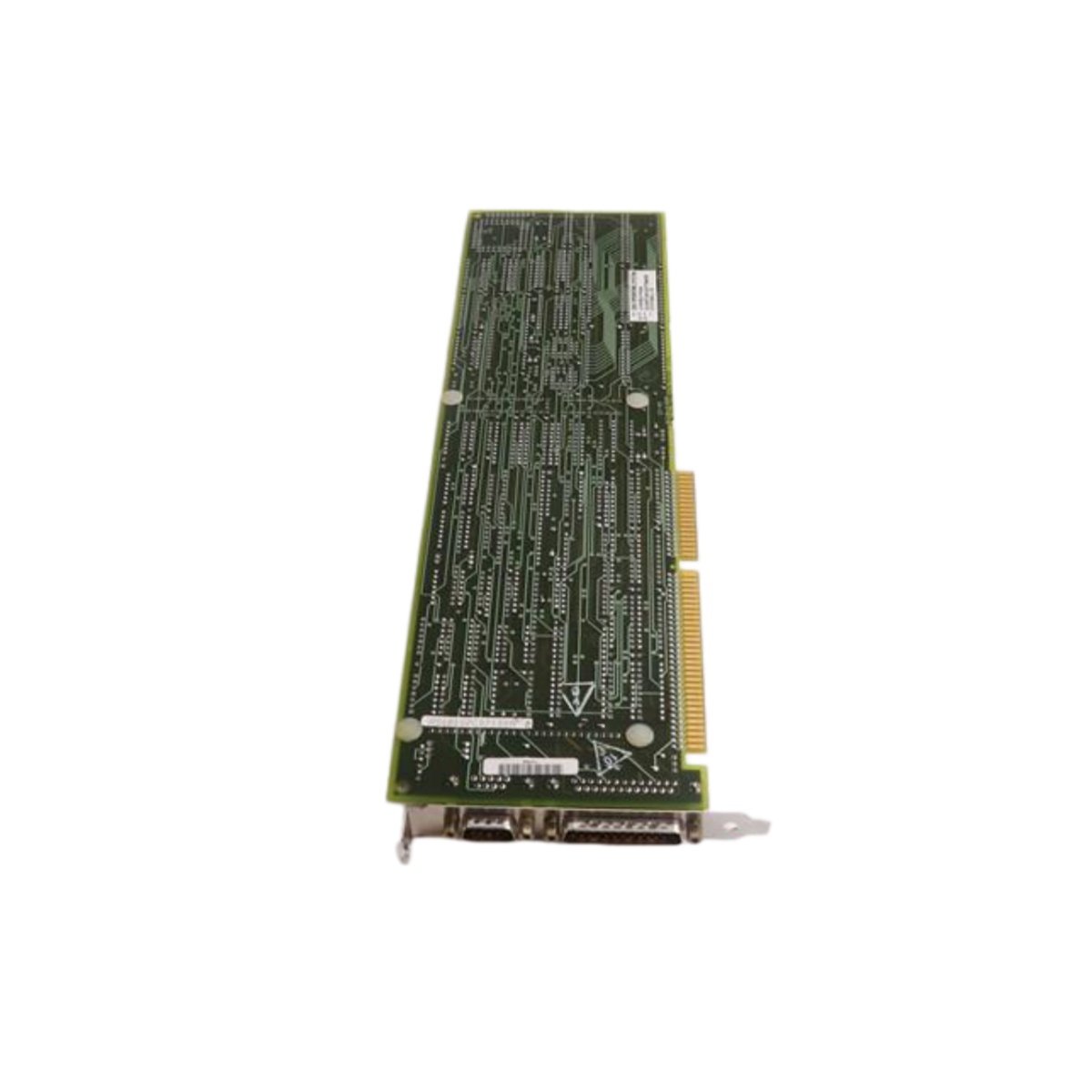

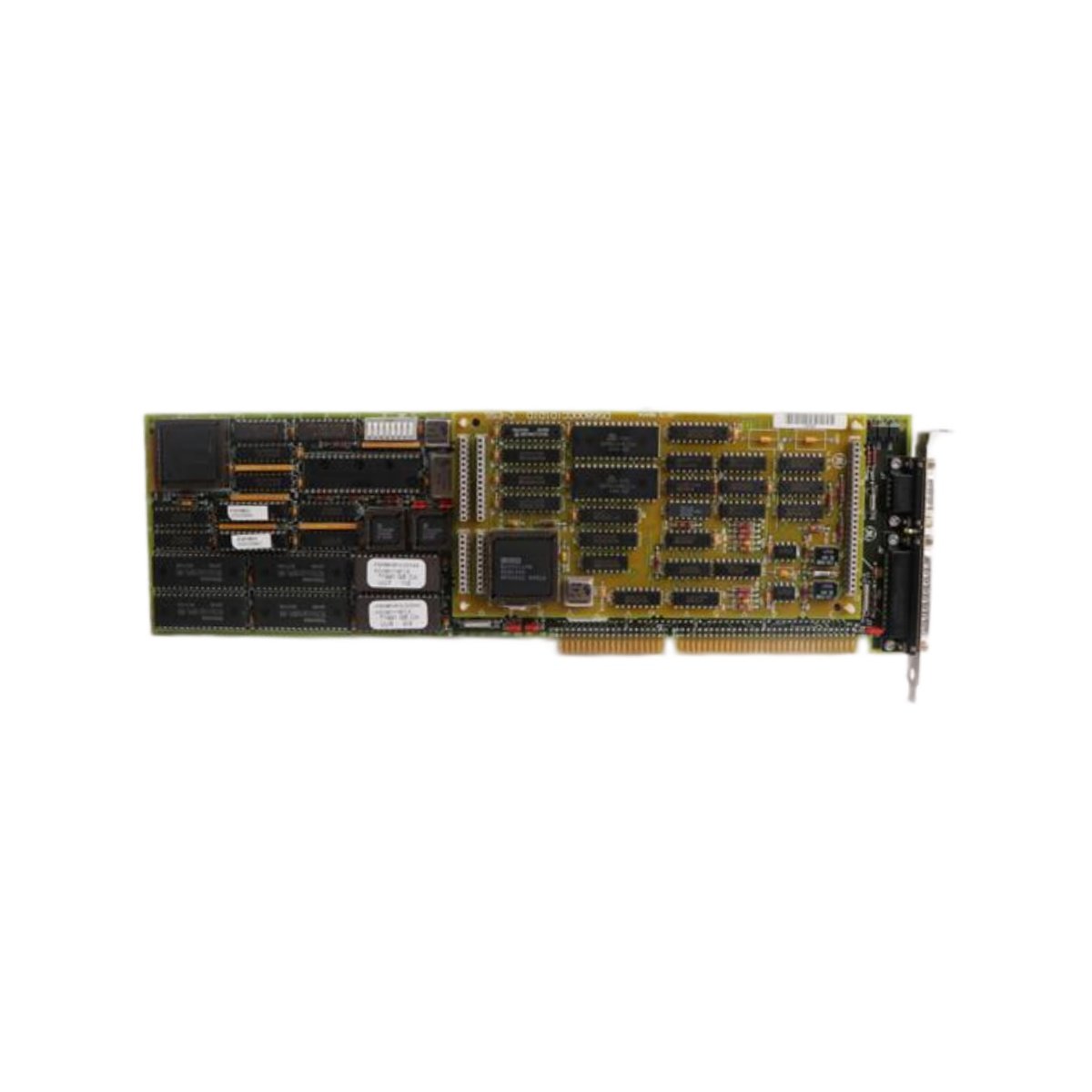

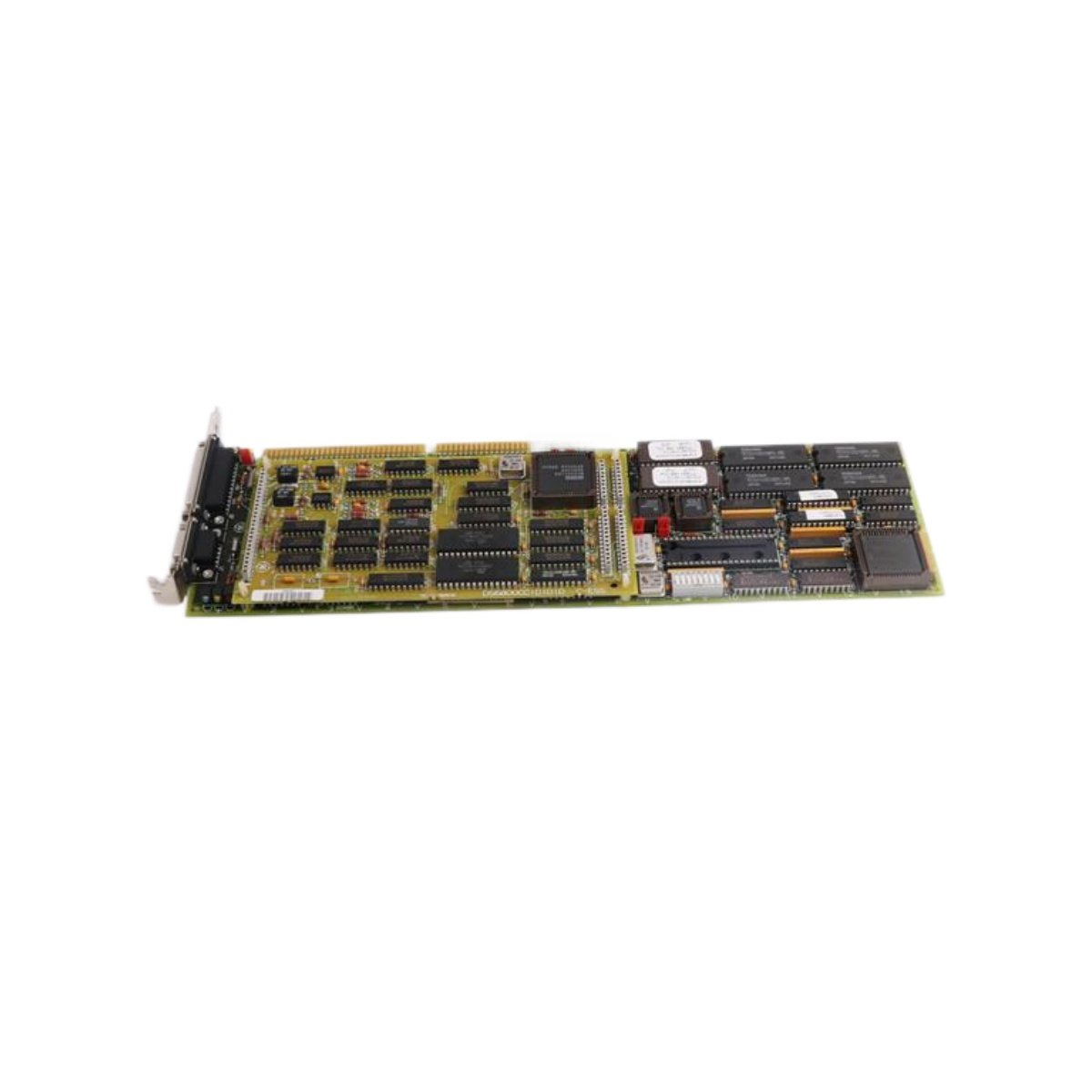

Mark VI Analog Output Control Module
The DS6800CCID1D1D provides analog output functionality for the GE Mark VI control system. This module converts digital command signals into precision analog values for field devices. It drives actuators, positioners, and other process equipment. The unit also includes comprehensive diagnostic capabilities for reliable operation.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE |
| Model | DS6800CCID1D1D |
| Category | Analog Output Module |
| System Compatibility | Mark VI Series |
| Output Channels | Offers 8 independent analog outputs |
| Output Type | Provides 4-20 mA current outputs |
| Resolution | Delivers 16-bit conversion |
| Accuracy | Maintains ±0.1% of full scale |
| Output Load | Supports up to 750 Ω per channel |
| Output Compliance | Handles 24 Vdc loop power |
| Update Rate | Refreshes every 5 ms |
| Power Supply | Draws +5 Vdc at 400 mA |
| Isolation | Provides 1500 Vac channel isolation |
| Diagnostics | Includes open and short-circuit detection |
| Operating Temperature | Functions from -20°C to +65°C |
| Storage Temperature | Withstands -40°C to +85°C |
| Dimensions | Measures 160.0 mm x 100.0 mm x 20.0 mm |
| Weight | Weighs approximately 0.4 kg |
| Mounting | Plugs into Mark VI rack slots |
| Compliance | Meets CE and RoHS standards |
Precision Output Control
This module generates precise 4-20 mA signals for controlling various field instruments. It accepts digital setpoints from the main controller and converts them with 16-bit accuracy. The module also delivers fast update rates for responsive control loops. Additionally, it includes extensive diagnostics to identify output faults quickly. The unit’s high accuracy ensures precise positioning and regulation.
Installation and Configuration
First, insert the DS6800CCID1D1D into an available slot within the Mark VI rack. Ensure the module connects securely to the backplane interface. Next, connect the field wiring to the designated output terminals. After that, apply power and verify the module’s operational status. You can then configure the output parameters through the system software.
Maintenance and Operational Integrity
This module’s diagnostic features enable proactive maintenance and rapid fault resolution. Therefore, you can minimize unplanned downtime in critical applications. We recommend you test the output channels periodically using calibrated instruments. You should also inspect the terminal connections for any signs of corrosion or loosening.
Details
| Weight | 0.4 kg |
|---|---|
| Dimensions | 160 × 100 × 20 mm |
