Technical Specifications and Module Design

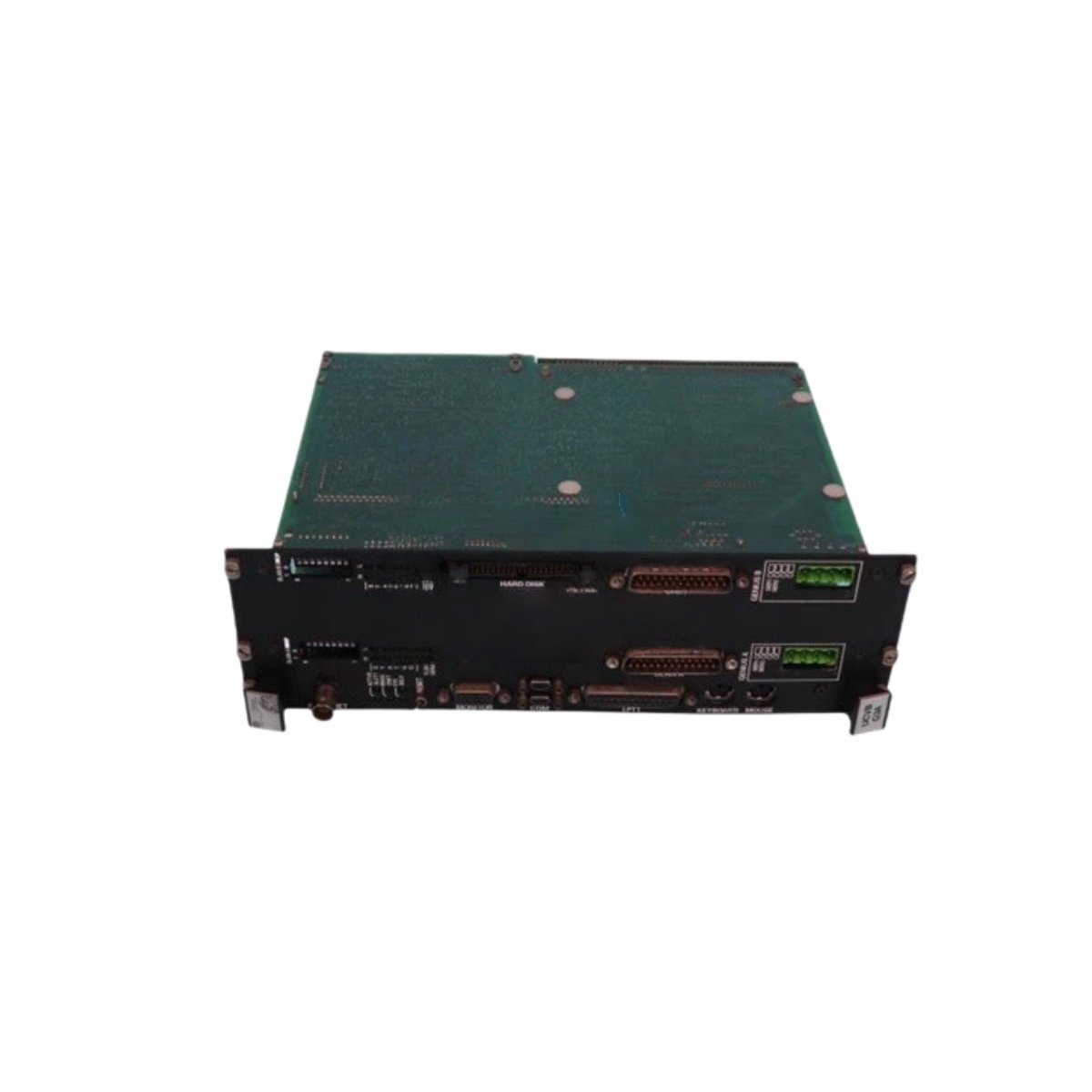

This Genius controller module manages distributed I/O networks for GE turbine systems. The GE DS215UCVBG3A DS215UCVBG3AF acts as a bus controller for Genius field devices. You can install this module into any standard Mark V rack slot position. Its dedicated processor handles all network communication without host intervention. The module weighs approximately 0.58 kilograms. Its dimensions measure 28 cm in height, 18 cm in width, and 2.5 cm in depth.

Genius Network Communication and Control

The module manages all Genius bus communication for connected I/O blocks. It polls field devices and collects process data automatically. The GE DS215UCVBG3A DS215UCVBG3AF detects network faults and initiates retries. It supports both simplex and redundant bus configurations for high availability. The module handles global data exchange between multiple Genius devices. A front-panel LED indicates bus activity and communication status. The module automatically recovers from temporary network interruptions without user intervention.

Redundancy and Fault Tolerance Features

The module supports dual Genius bus cables for critical turbine applications. It monitors both bus paths simultaneously for continuous operation. The GE DS215UCVBG3A DS215UCVBG3AF switches to the secondary bus instantly upon primary failure. It reports all network diagnostics back to the turbine controller. The module maintains I/O data integrity through checksum verification on every message. A yellow LED illuminates when operating on the redundant backup bus. The module stores no configuration data independently from the host.

Installation and Operational Guidelines

You must insert this module into a dedicated slot in the Mark V rack. The backplane supplies 5V DC power to the module automatically. The GE DS215UCVBG3A DS215UCVBG3AF draws approximately 350 mA from the 5V supply rail. You must use shielded twisted-pair cable for all Genius bus connections. This cable must terminate at both ends with 120-ohm resistors. The module requires no external battery for normal network operation. You should verify the bus cable does not exceed 750 meters. Exceeding this length will cause communication timeouts and data loss.
