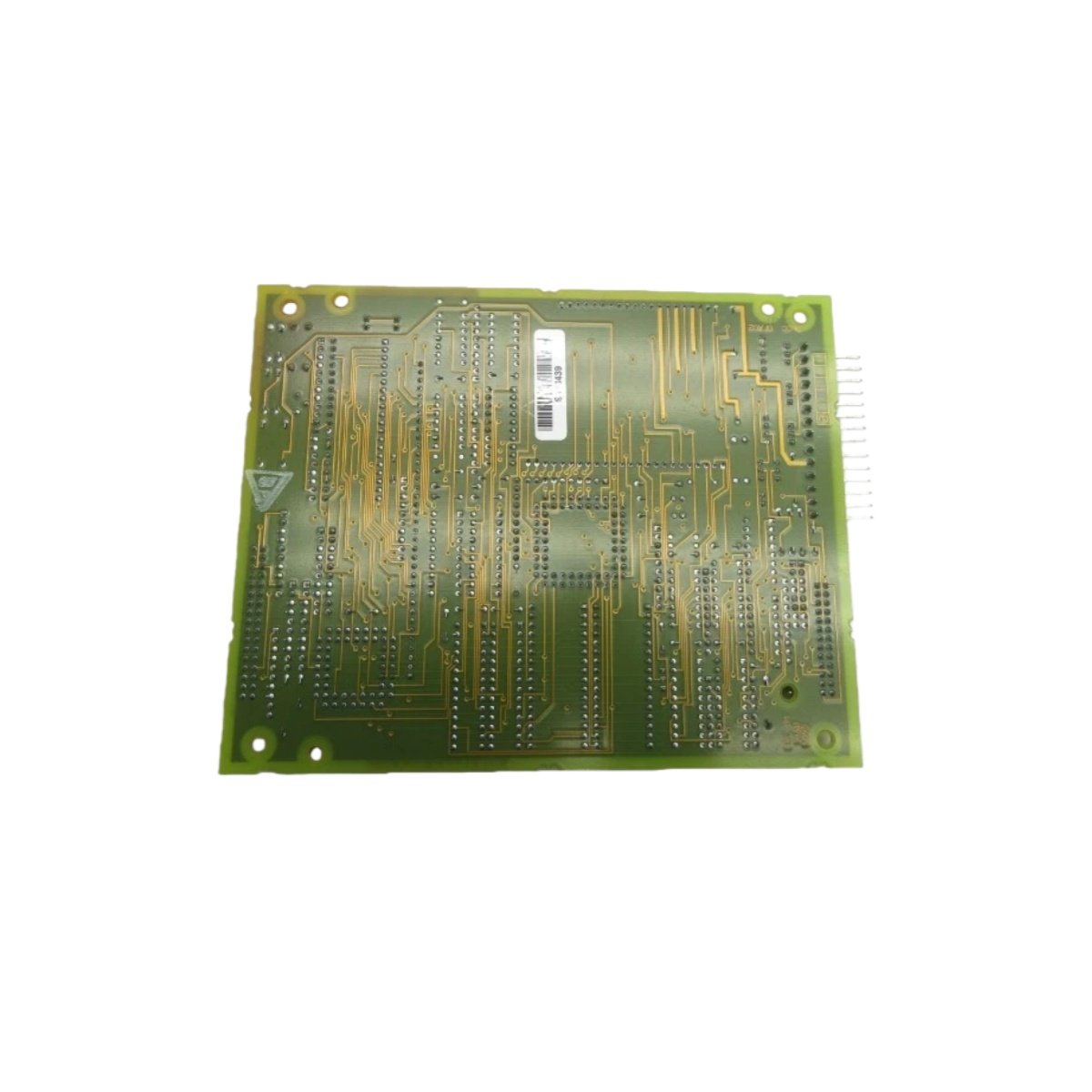

This LAN communication board enables high-speed data exchange within GE turbine control systems. The GE DS215SLCCG1AZZ01B provides Ethernet connectivity for the Mark V and Mark VI platforms. It facilitates communication between the turbine controller and plant-wide supervisory systems. The board supports multiple industrial protocols for flexible integration with external devices. Its robust design ensures reliable operation in harsh power generation environments.
Mechanical Dimensions and Construction Quality
The board measures 320 mm in height, 180 mm in width, and 2.5 mm in thickness. This large footprint accommodates complex networking components and isolation circuitry. Weighing approximately 0.82 kg, the DS215SLCCG1AZZ01B offers substantial mechanical stability. A high-grade FR-4 substrate with conformal coating resists moisture and airborne contaminants. This coating also protects the board from vibration and thermal stress.
Technical Specifications at a Glance
| Specification | Detail |
|---|---|
| Network Interface | 2 x 10/100 Base-T Ethernet (RJ45) |
| Protocols Supported | Modbus TCP/IP, Ethernet Global Data, SRTP |
| Data Rate | 10/100 Mbps (auto-negotiating) |
| Communication Channels | 2 (redundant, fault-tolerant) |
| Diagnostics | Built-in loopback and self-test |
| Dimensions (H × W × T) | 320 mm × 180 mm × 2.5 mm |
| Weight | 0.82 kg |
| Edge Connector | 96-pin DIN (gold-plated) |
| Backplane Supply | 5 VDC, ±15 VDC |
| Power Consumption | 6.8 W |
| Memory | 512 KB SRAM, 1 MB Flash |
| Energy Buffer | 220 µF capacitor (10 ms hold-up) |
| Temperature Range | -25 °C to +65 °C |
| Humidity Range | 5% – 95% RH (non-condensing) |
| Standards | UL 508, CSA, CE, RoHS |
| Component Count | 215 resistors, 142 capacitors, 12 ICs, 2 Ethernet transformers |
Interface and Connectivity Features
Two RJ45 Ethernet ports provide redundant network connections for fault-tolerant operation. These ports auto-negotiate speed and duplex settings for seamless integration. The board includes a 96-pin edge connector for backplane interfacing. LED indicators display link status, activity, and fault conditions clearly. A dedicated configuration port allows local setup and diagnostics.
Power Architecture and Energy Storage
The GE DS215SLCCG1AZZ01B draws power from the 5 VDC and ±15 VDC backplane rails. This triple-supply configuration ensures isolation between logic and communication circuits. An internal 220 µF capacitor provides ride-through capability during momentary power dips. This capacitor sustains network operation for up to 10 milliseconds during interruptions. Total power consumption under full load measures 6.8 W.
Internal Component Architecture
A dedicated 32-bit communication processor handles all protocol processing and packet management. The board integrates two independent Ethernet PHY transceivers for link redundancy. A 512 KB SRAM buffers incoming and outgoing data packets efficiently. The 1 MB Flash memory stores firmware and configuration parameters permanently. The PCB contains 215 surface-mount resistors and 142 ceramic capacitors for signal integrity. Twelve integrated circuits include the processor, Ethernet controllers, and voltage regulators. Dual transformer isolators provide galvanic separation for each Ethernet port.
Environmental Performance and Certifications
This LAN communication board operates reliably from -25 °C to +65 °C in turbine environments. It also withstands humidity levels between 5% and 95% without condensation. The DS215SLCCG1AZZ01B complies with UL 508, CSA, CE, and RoHS standards. These certifications ensure safe integration into GE turbine control systems worldwide.
Details
| Weight | 0.82 kg |
|---|---|
| Dimensions | 320 × 180 × 2.5 mm |
