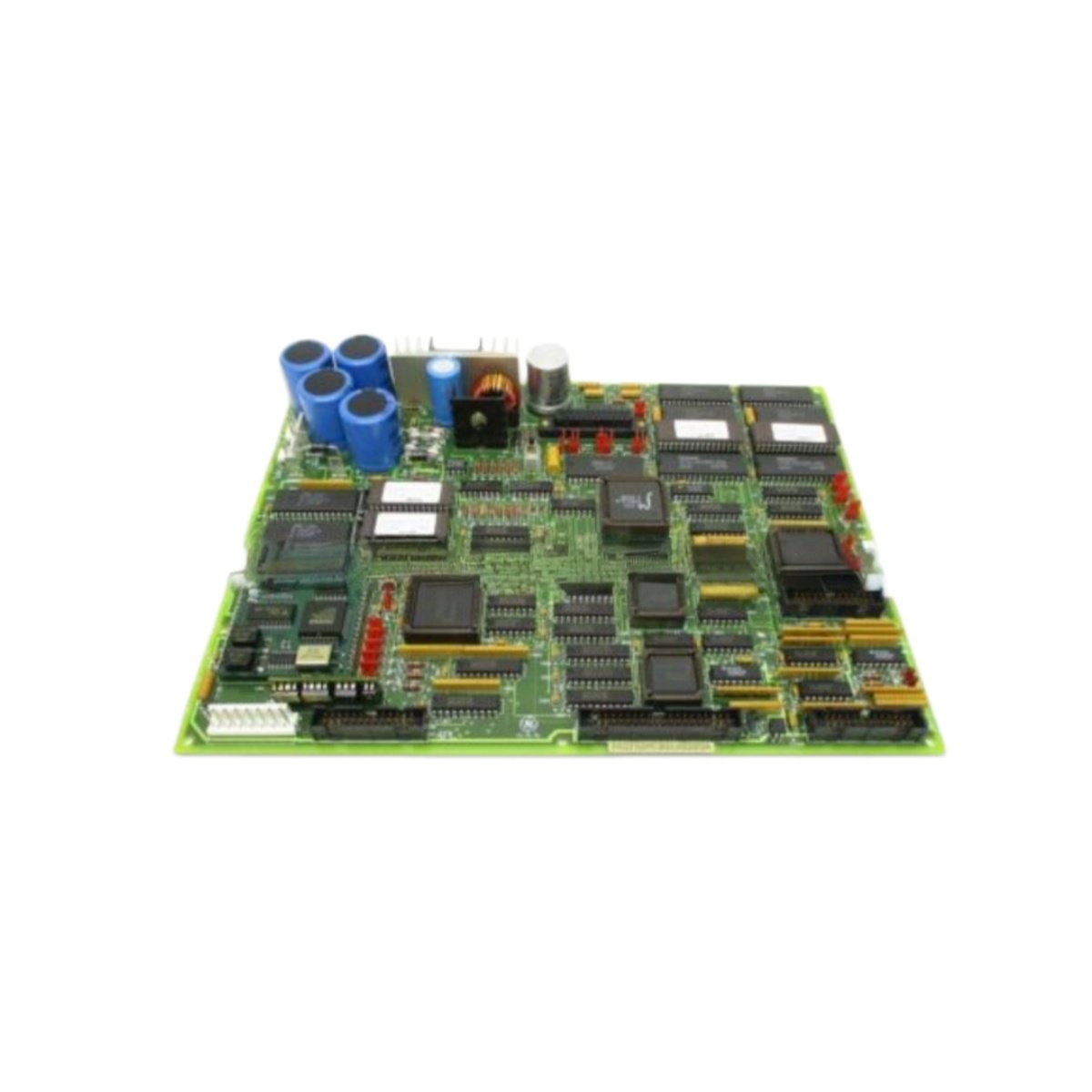

The GE DS215DMCB1AZZ03A is a Communication Card within the DS215 series of drive control components. This module manages high-speed data exchange between the main drive processor and external networks or devices. It handles protocol conversion and buffering for seamless integration into automation hierarchies. Consequently, it enables remote monitoring, control, and diagnostics of the connected drive system.

Versatile Connectivity and Protocol Support

This communication card features multiple physical interfaces for connecting to various industrial network types. It supports standard automation protocols, allowing the drive to communicate with PLCs, HMIs, and SCADA systems. The DS215DMCB1AZZ03A offloads communication tasks from the main processor to ensure deterministic real-time control. Furthermore, its design includes isolation circuitry for reliable operation in electrically noisy environments.

Technical Specifications and Hardware Details

Engineers designed this card for direct installation into the designated slot of a DS215 drive rack. Its specifications ensure compatibility with specific drive firmware versions and network architectures. The following table details its primary functional and identification parameters.

Application in Drive Network Integration

System integrators use this card to connect GE DC drives to plant-wide control networks like Ethernet or fieldbuses. It provides the essential link for drive parameterization, speed reference control, and status collection. The GE DS215DMCB1AZZ03A enhances drive system visibility and simplifies maintenance activities. Therefore, this component is key for modernizing and maintaining legacy DS215 drive installations.
