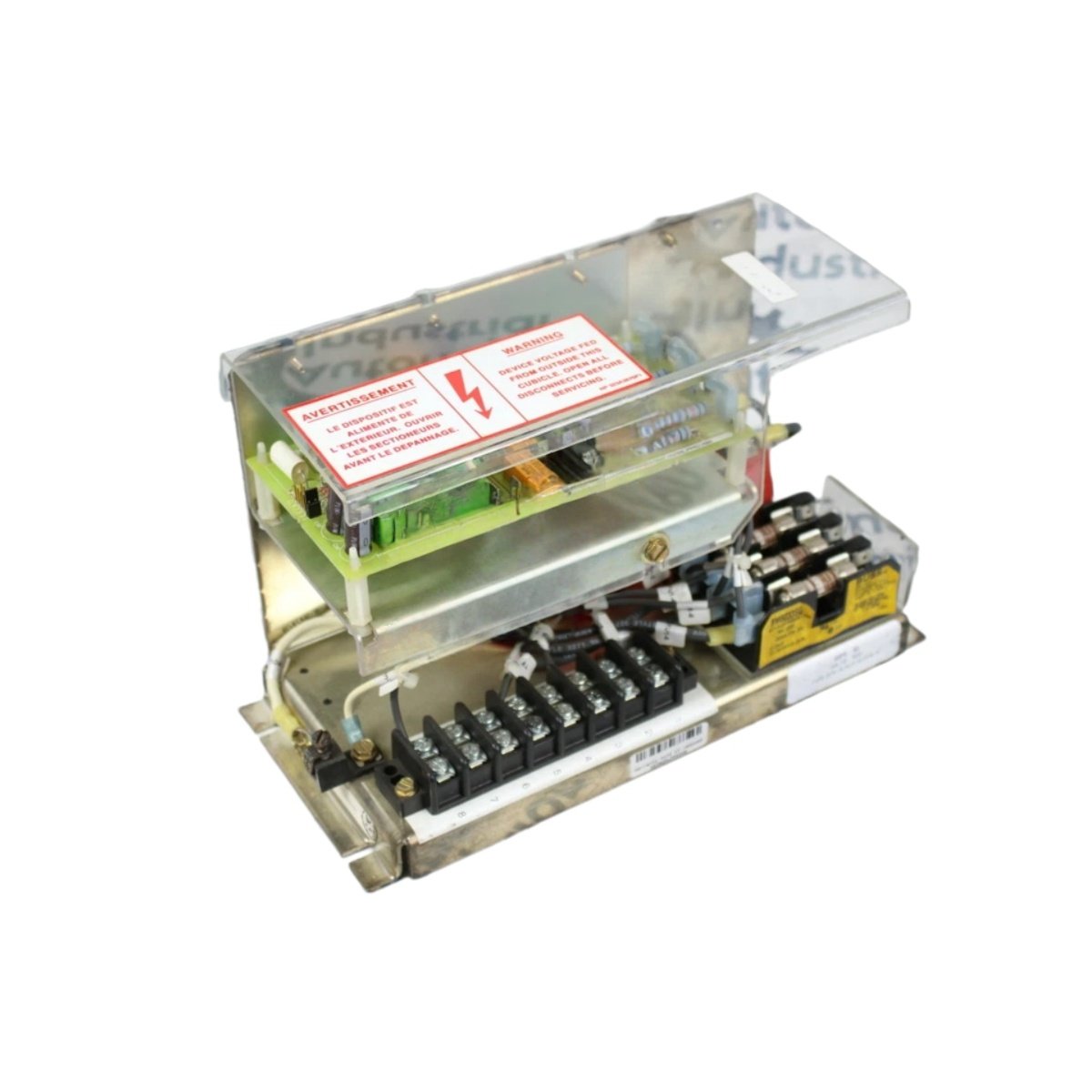

The GE DS2020LPPA340A provides critical protection for generator excitation circuits. This board monitors voltage and current on AC power lines. It fits directly into GE EX2100 and EX2100e excitation control systems. You will rely on this module for overvoltage and undervoltage detection.

Technical Specifications Overview

This protection board features three independent measurement channels on one PCB. Each channel monitors both AC voltage and current simultaneously. The GE DS2020LPPA340A operates within a 100–240 V AC input range. A built-in signal conditioning circuit filters out electrical noise. Consequently, you receive accurate line status readings without false trips.

Internal Components and Energy Storage

The GE DS2020LPPA340A contains one main PCBA with 156 discrete components. Key parts include three precision voltage transformers and three current transformers. The board also holds four electrolytic capacitors storing 1200 µF of energy. This storage maintains protection logic during 20 ms power interruptions. Moreover, an onboard DSP processes all measurement data in real time. A dedicated watchdog timer monitors the processor’s operation continuously.

Physical Interfaces and Connectors

You will find two front-facing 24-pin connectors on this board. These connectors interface with the EX2100 backplane for power and data. Each signal wire terminates on a separate field wiring terminal block. Four green LEDs indicate channel statuses and board health. One red LED lights for any active protection trip event. Eight mounting holes secure the GE DS2020LPPA340A to its chassis frame.

Installation and Operational Reliability

Install this line protection board inside a clean and grounded cabinet. Maintain 40 mm of clearance around the board for proper cooling. The board performs a full self-test sequence on every system startup. Therefore, you verify all protection circuits before generator operation. This unit supports continuous duty in harsh power plant environments.
